Summary of Contents for S&A CW-5000

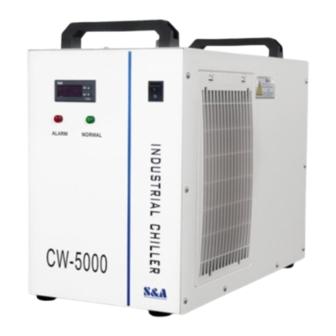

- Page 1 TY-JS-220308-004 CW-5000/5200 Industrial Circulating Chiller Installation & Operation Instructions...
- Page 2 TY-JS-220308-004 FOREWORD Thanks for your purchase of our product. Please read this manual carefully before using and keep it properly so that you can refer to it whenever you need information. This manual is not a quality guarantee. Our company reserves the right to the interpretation of the correction of misprint and improperly described information and product improvement.
-
Page 3: Table Of Contents
TY-JS-220308-004 CONTENTS Notice ......................4 Overview ....................7 II. Model Illustration ................7 III. Product Outlines & Parts ..............8 IV. Installation ..................10 V. Operating States &Parameters Adjustment ........12 VI. Alarm & Output Terminal ..............14 VII. Maintenance ..................15 VIII.Simple Troubleshooting ..............16... -
Page 4: Notice
TY-JS-220308-004 Notice Please strictly adhere to the usage guidelines and requirements provided, as accidents caused by improper operation (or use not in accordance with instructions) will be the responsibility of the user, and our company will not be held liable. Notice Operation Guideline The operation should be... - Page 5 TY-JS-220308-004 Notice Operation Guideline The equipment must be firmly fixed during transport and Transport and installation. Otherwise, there will be a danger of tipping or installation falling. The power cable terminal must be equipped with the electric Electrical protection leakage and overload protection device according to the rated current indicated on the equipment nameplate.
- Page 6 TY-JS-220308-004 a) Make sure that the water supply pipe of equipment is not blocked; b) It is necessary to check the water pipe and the water pump to confirm that there is a proper amount of water entering the Before commissioning water pump and exhaust it through the water pump exhaust valve, otherwise it will cause damage to the water pump;...
-
Page 7: Overview
TY-JS-220308-004 Overview This product is an industrial cooling device designed and manufactured for laser cutting, laser welding, laser marking, laser engraving and other equipment that uses laser processing. It can provide a temperature-stable cooling medium for the above application scenarios. The chiller is composed of a compressor, a condenser, a throttling device (expansion valve or capillary), an evaporator, and a water pump. -
Page 8: Product Outlines & Parts
TY-JS-220308-004 III. Product Outlines & Parts TEMPERATUR CONTROLLER POWER SWITCH AIR INLET (FILTER GAUZE) - Page 9 TY-JS-220308-004 Note: The above-mentioned product outlines and part names are only for one of the models, and they will be slightly different in different models.
-
Page 10: Installation
TY-JS-220308-004 Installation 1. Open the package and check whether the machine is in good condition and whether the accessories are complete. 2. Please ensure that the working voltage of the chiller is stable and normal. Because the refrigeration compressor is sensitive to the power supply voltage, the normal working voltage of our company's standard products is 210~240V (110V model is 100~120V). - Page 11 TY-JS-220308-004 (1) After turning on the power switch, the circulating pump of the chiller starts to work. When the new machine is turned on for the first time, there will be more air bubbles in the pipeline, which will cause the machine to alarm occasionally, and it will return to normal after a few minutes of operation.
-
Page 12: Operating States &Parameters Adjustment
TY-JS-220308-004 (2) Exhaust Air After adding water for the first time or replacing water, exhaust the air in the water pump to start use, otherwise the equipment will be damaged. The exhaust method is as follows ： Method 1: Under the state of shutting down, after adding water, remove the water outlet and connect the water pipe, drain for 2 minutes, and then install it firmly. - Page 13 TY-JS-220308-004 normal state in 6s and is restored to factory settings. Press ▼ key to show t1 Press ▼ key again to show room temperature (Meanwhile D1 is flashing, displaying room temperature)； Press ▼ key again to show t2 and press ▼ key again to show flow rate 1.(Unit: L/min)； Press ▼...
-
Page 14: Alarm & Output Terminal
TY-JS-220308-004 Password The allowed highest water temperature The allowed lowest water temperature Sensor pulse frequency alarm Case 1: The cooling water temperature is controlled by the intelligent mode. The required water temperature is from 25℃ to 31℃ and the set water temperature is 3℃ lower than the room temperature. -
Page 15: Vii. Maintenance
TY-JS-220308-004 Alarm causes and working status table Display Alarm Buzzer H1 and H2 H1 and H3 Condition code Circulating pump works properly open circuit connected Ultra-high room temp sounds connected open circuit Ultra-high water temp sounds connected open circuit Ultra-low water temp sounds connected open circuit... -
Page 16: Viii.simple Troubleshooting
TY-JS-220308-004 VIII. Simple Troubleshooting Failure Failure Cause Approach Check and ensure the power interface and the Power cord is not plugged power plug isplugged in place and in good in place. contact. Pull out the fuse box from the power supply Machine turned on interface of the chiller, check the fuse, replace but unelectrified... - Page 17 TY-JS-220308-004 Brand: 特域机电 S&A Product Name: Water Chiller Manufacturer's Company Name: Guangzhou TEYU Electromechanical Co., Ltd Manufacturer's Address: No. 50, Zhongchuang Road, Shengshi Industrial Zone, Zhongcun Town, Panyu District, Guangzhou Sales Company: Shanghai Top Nine Industrial Co., Ltd. Seller's Company Address: No.208 Wulian Road, Room164, Shanghai Pudong New District, China, 200129, CN E-mail: coletechcn@126.com TEL: +86 18017012480...
