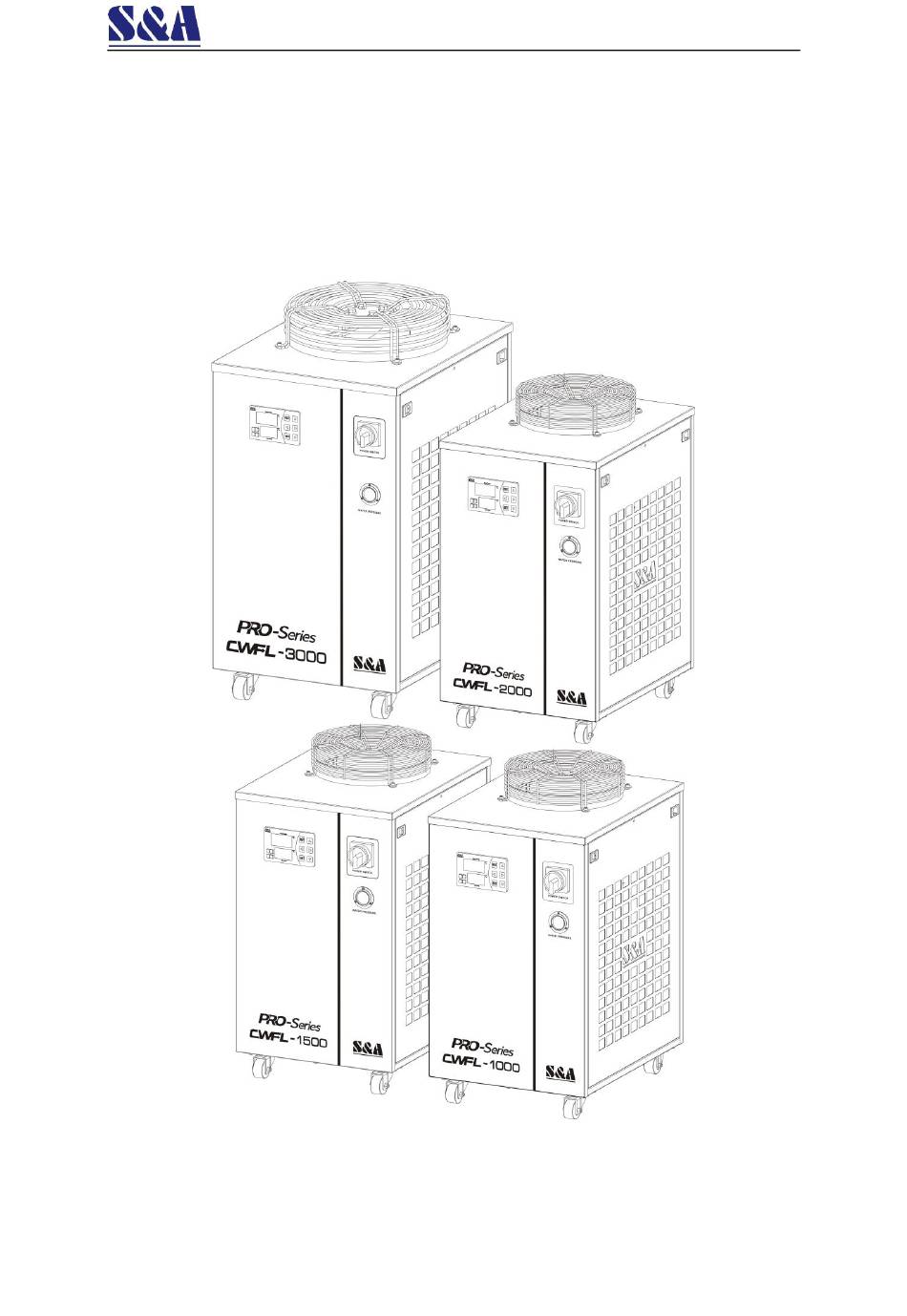

  • Page 1 TY-JS-220607-001 CWFL-1000/1500/2000/3000 Industrial Chiller User Manual...
  • Page 2 TY-JS-220607-001 FOREWORD Thanks for your purchase of our product. Please read this manual carefully before using and keep it properly so that you can refer to it whenever you need information. This manual is not a quality guarantee. Our company reserves the right to the interpretation of the correction of misprint and improperly described information and product improvement.
  • Page 3: Table Of Contents

    TY-JS-220607-001 CONTENTS Notice ---------------------------------------------------------------------------------------- 4 I. Overview --------------------------------------------------------------------------------- 7 II. Model Illustration -------------------------------------------------------------------- 7 III. Product Outlines & Parts --------------------------------------------------------- 8 IV. Installation ----------------------------------------------------------------------------- 9 V. Operating States &Parameters Adjustment -------------------------------- 12 VI. Alarm & Output Terminal --------------------------------------------------------- 14 VII. Maintenance ------------------------------------------------------------------------- 15 VIII.
  • Page 4: Notice

    TY-JS-220607-001 Notice In order to ensure your personal safety and avoid property loss, you must pay attention to this manual, but not limited to the following warning notices. General electric knowledge and safety standards should also be followed. DANGER Failure to take safety measures will result in death or serious personal injury.
  • Page 5 TY-JS-220607-001 DANGER Failure to take safety measures will result in death or serious personal injury. Notice Operation Guideline The equipment must be firmly fixed during transport and Transport and installation. Otherwise, there will be a danger of tipping or installation falling.
  • Page 6 TY-JS-220607-001 the air outlet are blocked, the cooling ability that the equipment should have cannot be realized. a) Make sure that the water supply pipe of equipment is not blocked; b) It is necessary to check the water pipe and the water pump to confirm that there is a proper amount of water entering the Before commissioning water pump and exhaust it through the water pump exhaust...
  • Page 7: Overview

    TY-JS-220607-001 I. Overview This product is an industrial cooling device designed and manufactured for laser cutting, laser welding, laser marking, laser engraving and other equipment that uses laser processing. It can provide a temperature-stable cooling medium for the above application scenarios.
  • Page 8: Product Outlines & Parts

    TY-JS-220607-001 III. Product Outlines & Parts Temperature Controller Power Switch Water Pressure Gauge Air Inlet(Filter Gauze) Air Outlet Water Supply Inlet Water Inlet L(laser circuit) Water Outlet L(laser circuit) Water Level Gauge Water Outlet H(optics circuit) Water Inlet H(optics circuit) Alarm Output Port Drain Electrical Connecting Box...
  • Page 9: Installation

    TY-JS-220607-001 IV. Installation 1. Open the package and check whether the machine is in good condition and whether the accessories are complete. 2. Please ensure that the working voltage of the chiller is stable and normal. Because the refrigeration compressor is sensitive to the power supply voltage, the normal working voltage of our company's standard products is 210~240V (110V model is 100~120V).
  • Page 10 TY-JS-220607-001 4. Determine the direction of the pipeline layout according to the water inlet and outlet of the chiller, and ensure that the waterway is clean and free of impurities, so as to prevent impurities from entering the waterway and causing blockage or pump failure. 5.
  • Page 11 TY-JS-220607-001 (2) Exhaust Air After adding water for the first time or replacing water, exhaust the air in the water pump to start use, otherwise the equipment will be damaged. The exhaust method is as follows : Method 1: Under the state of shutting down, after adding water, remove the water outlet from the laser circuit (OUTLET L) and connect the water pipe, drain for 2 minutes, and then install it firmly.
  • Page 12: Operating States &Parameters Adjustment

    TY-JS-220607-001 V. Operating States &Parameters Adjustment 1. Temperature control panel introduction 2. Working status indicator of the temperature controller Refrigeration indicator: during refrigeration, the indicator is on; In constant temperature status, the indicator is off; During delay, the indicator flashes. Refrigerant solenoid valve indicator: the indicator is on when connected and it’s off when disconnected Heating indicator of the low temperature circuit: the indicator is on when connected...
  • Page 13 TY-JS-220607-001 changing is available. If the password is incorrect, it will return to temperature display. If there is no button pressed in 20 seconds, the temperature controller will automatically exit from the data setting status. Press “RST” button to save the data and exit. 7.
  • Page 14: Alarm & Output Terminal

    TY-JS-220607-001 VI. Alarm & Output Terminal In order to guarantee the equipment will not be affected while abnormal situation happens to the chillers, the chillers are designed with alarm protection function. 1. Alarm output terminals and wiring diagram. 2.Alarm causes and working status table. Display Alarm Buzzer...
  • Page 15: Maintenance

    TY-JS-220607-001 Flow alarm of optics circuit Sounds BREAKOVER DISCONNECTION Chiller power failure BREAKOVER DISCONNECTION Note: The alarm output port is connected with a set of normally open and normally closed contacts of the relay inside the machine. The working current should be smaller than 3A while the working voltage should be smaller than 300V.
  • Page 16: Simple Troubleshooting

    TY-JS-220607-001 VIII. Simple Troubleshooting Failure Failure Cause Approach Check and ensure the power interface Power cord is not plugged and the power plug is plugged in in place place and in good contact. Machine turned on but Open the electric box cover, check the unelectrified fuse and replace with a spare one if necessary.
  • Page 17: Attachment - Schematic

    TY-JS-220607-001 Attachment – Schematic CWFL-1000...
  • Page 18 TY-JS-220607-001 CWFL-1500/2000/3000...
