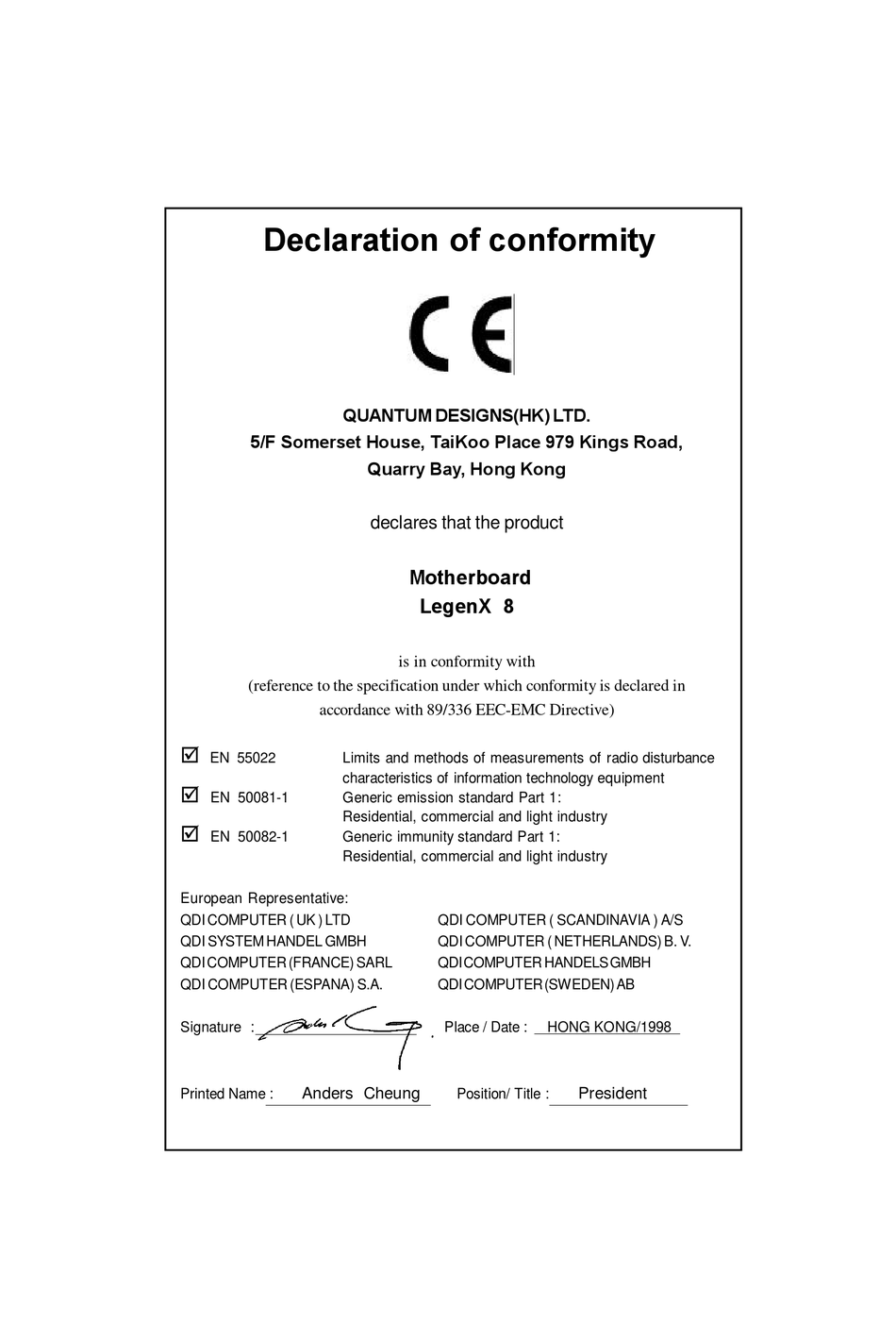

Declaration of conformity
QUANTUM DESIGNS(HK) LTD.
5/F Somerset House, TaiKoo Place 979 Kings Road,
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
þ
EN 55022
Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
þ
EN 50081-1
Generic emission standard Part 1:
Residential, commercial and light industry
þ
EN 50082-1
Generic immunity standard Part 1:
Residential, commercial and light industry
European Representative:
QDI COMPUTER ( UK ) LTD
QDI SYSTEM HANDEL GMBH
QDI COMPUTER (FRANCE) SARL
QDI COMPUTER (ESPANA) S.A.
Signature :
Anders Cheung
Printed Name :
Quarry Bay, Hong Kong
declares that the product
Motherboard
LegenX 8
is in conformity with
QDI COMPUTER ( SCANDINAVIA ) A/S
QDI COMPUTER ( NETHERLANDS) B. V.
QDI COMPUTER HANDELS GMBH
QDI COMPUTER (SWEDEN) AB
Place / Date :
Position/ Title :
HONG KONG/1998
President
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for QDI LegenX 8
Summary of Contents for QDI LegenX 8
- Page 1 EN 50082-1 Generic immunity standard Part 1: Residential, commercial and light industry European Representative: QDI COMPUTER ( UK ) LTD QDI COMPUTER ( SCANDINAVIA ) A/S QDI SYSTEM HANDEL GMBH QDI COMPUTER ( NETHERLANDS) B. V. QDI COMPUTER (FRANCE) SARL QDI COMPUTER HANDELS GMBH QDI COMPUTER (ESPANA) S.A.
- Page 2 Declaration of conformity Trade Name: QDI Computer ( U. S . A. ) Inc. Model Name: LegenX 8 Responsible Party: QDI Computer ( U. S. A.) Inc. Address: 41456 Christy Street Fremont, CA 94538 Telephone: (510) 668-4933 Facsimile: (510) 668-4966...
-
Page 3: Table Of Contents
C O N T E N T S 1. Introduction ............... Overview ..................1 Key Features ..................1 2. Installation Instructions ..........External Connectors .............. 5 PS/2 Keyboard & PS/2 Mouse Connector ..........5 USB1&USB2 ..................5 Parallel Port Connector and Serial Port Connector ........ 5 Line-in jack, Microphone-in jack, Speaker-out jack and MIDI/Joystick connector .................. - Page 4 YAMAHA Software Installation ............. 33 Installation of Windows 95/98 Driver ............. 33 Installation of Dos/Windows 3.1X Driver ..........35 Installation of Windows NT 4.0 Driver ........... 35 Appendix A QDI Motherboard Utility CD-ROM ...... 37 Appendix B Boot Logo ............39...
-
Page 5: Introduction
Introduction Introduction Overview The LegenX 8 green motherboard utilizes the Intel® 440LX AGPset and provides a highly integrated solution for fully compatible, high performance PC/microATX platform. It provides 66MHz system bus support for all Intel Celeron PPGA 370 processors. Both 66MHz SDRAM and EDO DRAMs are supported. - Page 6 Manager). (manufacturing option) Supports keyboard password power-on function. System status resumes after AC power failure. Protects the system BIOS from being attacked by severe virus such as CIH, by enabling “Flash Write Protect ” in CMOS setup. Manual for LegenX 8...
- Page 7 Supports IDE CD-ROM or SCSI boot up. Green function Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management). Supports three green modes: Doze, Standby and Suspend. Expansion slots 1 ISA slot and 3 PCI slots. 1 AGP Slot. Manual for LegenX 8...
- Page 8 -- This page is intentionally left blank -- Manual for LegenX 8...
-
Page 9: Installation Instructions
You can enable/disable them and choose the IRQ or I/O address in “Integrated Peripherals” from AWARD BIOS SETUP. Parallel Port UART1 UART2 Manual for LegenX 8... -
Page 10: Connector
The connector connects to the case’ s IDE indicator LED indicating the activity status of IDE hard disk. Reset Switch (RESET) The connector connects to the case’ s reset switch. Press the switch once, the system resets. Manual for LegenX 8... -
Page 11: Speaker Connector (Speaker)
When the system is powered up, the LED is on. When the system enters suspend mode, the LED will flash. Hardware Green Connector (SLEEP) Push once the switch connected to this header, the system enters suspend mode. Manual for LegenX 8... -
Page 12: Infrared Header(Irda)
LAN adapter, set “Resume by Ring/LAN” as Enabled in the “POWER MANAGEMENT SETUP” section of the BIOS. Save & exit, then boot the operating system once to make sure this function takes effect. +5V standby Signal for waking up (active high) Manual for LegenX 8... -
Page 13: Wake-Up On Internal Modem (Wom)
The onboard audio allows volume control with a push-switch operation. A single-push on the S2 switch increases volume level by 1.5dB, while a single-push on the S1 switch attenuates it by 1.5dB. Simultaneous pushing both switches S1 and S2 enables ouput muting. S2 S1 Manual for LegenX 8... -
Page 14: Expansion Slots & I/O Ports Description
Normal status: Clear CMOS: (Unplug the AC power supply) Enable/Disable on-board audio(JP8) If you want to use the on-board audio, close JP8(default). Otherwise, set JP8 open to disable the on-board audio. Enable on-board audio: Disable on-board audio: Manual for LegenX 8... -
Page 15: Enable Keyboard Password Power-On Function(Jkb)
DRAMs installed. Possible SDRAM DIMM memory sizes are 8MB, 16MB, 32MB, 64MB, 128MB in each DIMM socket. Possible EDO DIMM memory sizes are 8MB, 16MB, 32MB, 64MB, 128MB, 256MB in each DIMM socket. Manual for LegenX 8... - Page 16 -- This page is intentionally left blank -- Manual for LegenX 8...
-
Page 17: Bios Description
1. Create a bootable system floppy diskette, by typing Format A:/s from the DOS prompt under DOS6.xx or Windows 9x environment. 2. Copy FLASH.EXE from the directory \Utility located on the QDI Motherboard Utility CD onto your new bootable diskette. - Page 18 Be sure your new BIOS is compatible with your MB. If not, the system will be damaged. /g: Retrieves BIOS file from BIOS ROM. Examples: A:\FLASH.EXE BIOSfile.bin A:\FLASH.EXE BIOSfile.bin /cdpc/n A:\FLASH.EXE BIOSfile.bin /g Note: FLASH utility runs incorrectly at Windows DOS prompt. Manual for LegenX 8...
-
Page 19: Award Bios Description
The basic CMOS settings included in “Standard CMOS Setup” are Date, Time, Hard Disk Use the arrow keys to highlight Drive Types, Floppy Disk Drive Types, and VGA etc. the item, then use the <PgUp> or <PgDn> keys to select the value you want in each item. Manual for LegenX 8... - Page 20 VGA, SEGA, SVGA, or PGA monitor adapters. CGA 40 Color Graphic Adapter, powering up in 40 column mode. CGA 80 Color Graphic Adapter, powering up in 80 column mode. MONO Monochrome adapter, including high resolution monochrome adapters. Manual for LegenX 8...
