W205-N RVC
NTV-KIT703
Overview
The W205-N RVC Kit allows the user to add a backup camera input (with active parking lines)
and 1 video input (front cam, etc) to the factory media screen in select 2015 Mercedes vehicles
with the new infotainment system.

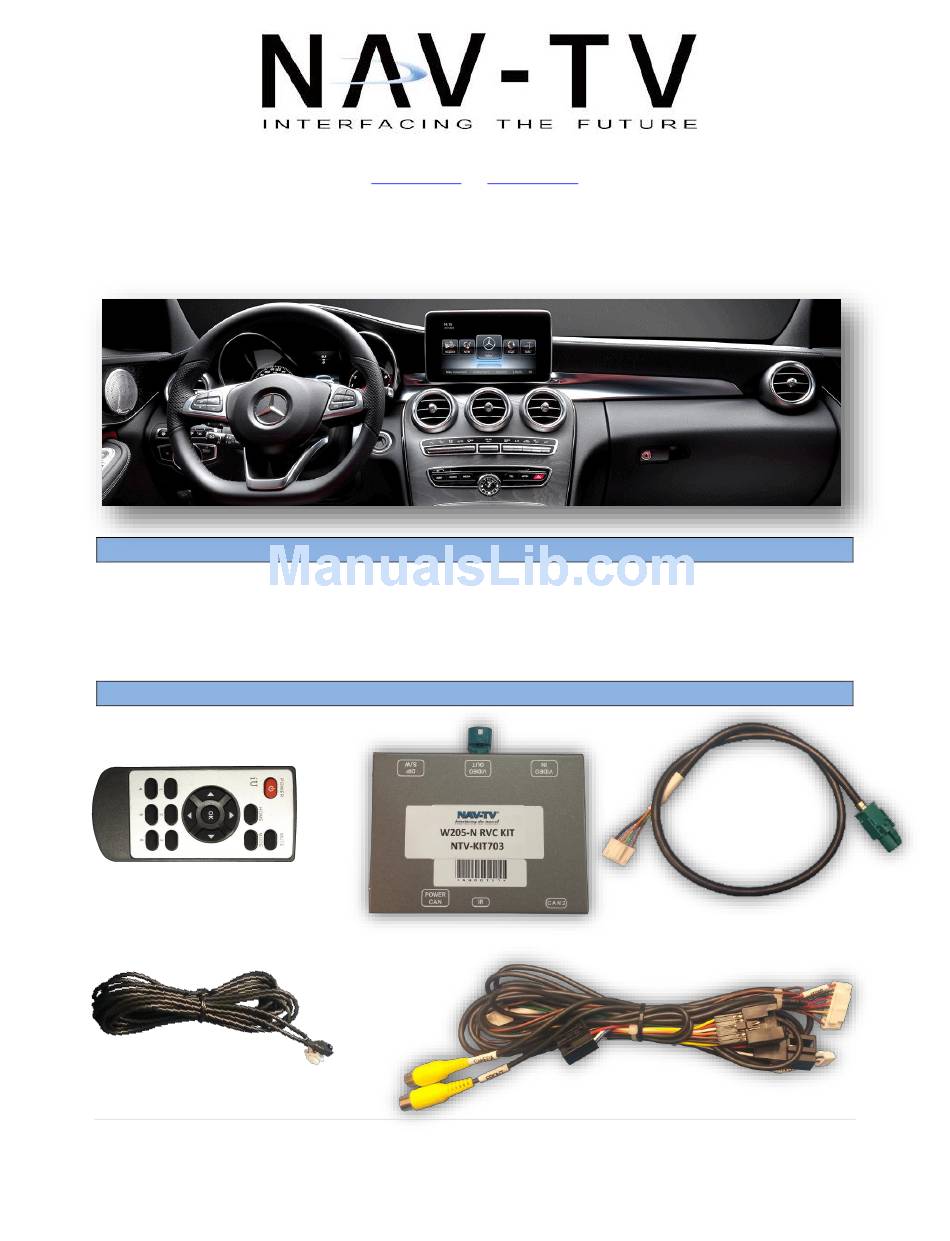

Kit Contents
LVDS
Video
Cable
OSD Menu remote
W205-N RVC Interface
IR Eye
Plug & Play Power/CAN Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nav TV W205-N RVC
Summary of Contents for Nav TV W205-N RVC
- Page 1 NTV-KIT703 Overview The W205-N RVC Kit allows the user to add a backup camera input (with active parking lines) and 1 video input (front cam, etc) to the factory media screen in select 2015 Mercedes vehicles with the new infotainment system.
- Page 2 11/24/15 NTV-DOC245 Interface Connectors Power/CAN IR Eye Not Used CAN 2 Input OUOUT Video IN (from radio) Video OUT (to screen) Not Used Dip Switches Dip Switch Settings DIP SW KEEP KEEP RVC OFF DOWN TYPE 1 TYPE DOWN KEEP KEEP ADDING RVC ON...
- Page 3 11/24/15 NTV-DOC245 Dash Removal (’15 C-Class) 1. Use a plastic tool to remove the silver trim behind the COMAND touchpad controller. You will have to open the center console and press the arm rest locks forwards for clearance: 2. Remove (2x) Torx 20 screws hidden beneath the silver trim piece in step 1: 3.
-
Page 4: Installation
11/24/15 NTV-DOC245 Installation 1. With the radio removed, disconnect all harnesses and set the radio aside. 2. In the main square radio plug, locate the 12-pin black plug and remove it (press clip on top and pull). 3. Separate the outer shell from this OEM connector and insert the provided 12-pin plug in its place (this connector only connects properly in one direction). - Page 5 7. Locate the OEM, typically Dark Blue, 4-pin round connector (LVDS) that was removed from the radio in step 1 from the port on the radio labeled ‘DISP’. Connect this factory plug to the W205-N RVC interface at the port labeled ‘VIDEO OUT’. NOTE: If there is no dark blue LVDS video plug present, use the cable that makes the OEM screen disappear when unplugged (while radio is on).
- Page 6 12. Connect signal from the rear camera to the RCA labeled ‘CAMERA’ among the main Power/CAN harness. 13. Connect the white plug from the Power/CAN Harness to the port on the W205-N RVC interface labeled ‘POWER/CAN’. 14. Optional: If adding an additional video input (including front camera), use the provided RCA labeled ‘FRONT’...
- Page 7 11/24/15 NTV-DOC245 W205-N RVC Install Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 8 11/24/15 NTV-DOC245 Menu Adjustments Before you start: The IR-Eye must be connected. Make sure the car’s ignition is on and radio is on Return (menu You must be in Reverse Camera mode control) Reverse Camera Mode adjusts Reverse Camera Settings ...
- Page 9 NTV-DOC245 W205-N RVC Operation Once the W205-N RVC is connected properly, reverse activation is automatic. Placing the vehicle in reverse will display the connected camera’s image automatically. Note: If display doesn’t switch to reverse image when shifting into reverse, check dip switch settings on page 2.
