- Page 1 MF5600 Series MEMS Mass Flow Meters SIARGO MEMS FLOW SENSING PRODUCTS User Manual (VA.3) © 2013 Siargo Ltd.
-
Page 2: Restriction On Use
Do not use this product in any environments where human safety may be at risk. Only a qualified person from Siargo or a person who is accredited by Siargo can perform troubleshooting services to the product, Siargo is otherwise not liable for any consequences thereafter. -
Page 3: Table Of Contents
MF5600 Series User Manual Contents RESTRICTION ON USE ..................SAFETY PRECAUSION ..................Contents ........................ 1 Overview ......................2 Models and Selection ..................3 Product Description ................... 4 Specifications ....................5 Installation ......................Physical Dimensions ..................Installation Instructions ................. Attentions ..................... -
Page 4: Overview

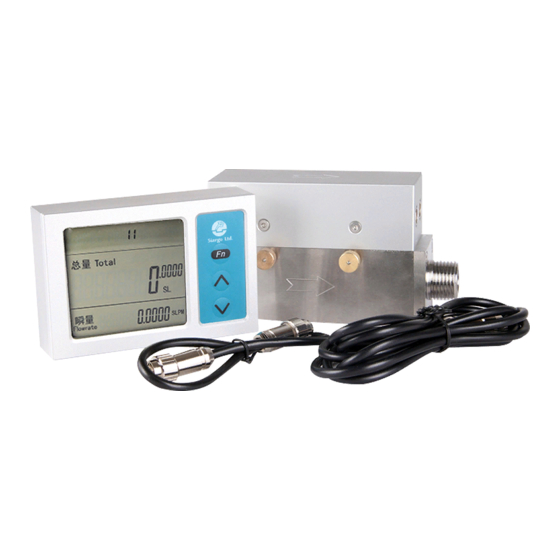

The design opts for applications where the display must be separately placed from the meter body or flow channel. The meters are operated with the Siargo’s proprietary MEMS thermal mass flow sensors together with the smart control electronics. The sensor probe surface is passivated with silicon nitride ceramic materials together with a water/oil proof nano-coating for performance and reliability. -
Page 5: Models And Selection
MF5600 Series User Manual 2. Models and Selection Gas (A - air; C- CO ; N - N ; O - O ; R - Ar, for other gases, please contact Siargo.) Display D - LCD；N - No display Options :B,AB,BD,ABD) Output A - 4~20mA；B - RS485；D - Pulse. -
Page 6: Specifications
MF5600 Series User Manual 4. Specifications MF5612 MF5619 Unit Model Max. Flowrate Min. Flowrate Turn-down ratio 30:1 (100:1 customizable) Accuracy ±(1.5+0.2FS) Repeatability ±0.5 +12~+24 Vdc, 50mA Power Supply 4~20mA; RS485; Pulse Output Display LCD ( Detachable Display Unit Instant flowrate SLPM，Flow accumulation: Nm /h Display Resolution Instant flo wrate: 0.001... -
Page 7: Installation Instructions
MF5600 Series User Manual 5.2 Installation Instructions The product at the time of shipment is fully inspected for product quality and meets all safety requirements. Additional safety measures during the installation should be applied. This includes, but is not limited to leakage verification procedures, standard EDS (electrostatic discharge) precautions, DC voltage precautions, and heavy duty precautions. -
Page 8: Operation And Communication
MF5600 Series User Manual 6. Operation and Communication 6.1 Cable Definition The electrical interfaces are defined as below: Color Definition Power Supply (+12 ~ +24 VDC) Black Power GND Green RS485 (A) Brown RS485 (B) Violet 4 ~ 20mA Flow Signal Output... -
Page 9: Setup Via Buttons
MF5600 Series User Manual 6.6 Setup via Buttons 6.6.1 Button definition Three buttons: Selection/confirmation of a setting Scroll up the setup menu Scroll down the setup menu 6.6.2 Operation (1) The user interface (Figure 6-5): Button is used for function selection. After press it, the menu asks for password (authentication mode). - Page 10 MF5600 Series User Manual “qUITE”, exit from the setup mode (this is the default option). “ PROTOCOL”, select Single-device communication or Multi-device communication. , the display will show the protocol menu; if the value is " Press 000”, the meter is working Single-device communication mode;...
-
Page 11: Safety And Maintenance
Attention: any alternation and/or improper use of the product without the permission of the manufacturer can cause unpredicted damages and even injuries or other severe situations. Siargo Inc or any of its employees, subsidiaries shall not be hold and indemnified against such consequences due to such circumstances via improper use of the product. -
Page 12: Warranty
The products returned under warranty to Siargo shall be at user or purchaser's risk of loss, and will be returned, if at all, at Siargo's risk of loss. Purchasers or users are deemed to have accepted this limitation of warranty and liability, which contains the complete and exclusive limited warranty of Siargo, and it shall not be amended, modified or its terms waived except by Siargo's sole action. -
Page 13: Customer Service And Order Information
9. Customer Service and Order information Siargo Ltd. is making every effort to ensure the quality of the products. In case of questions, and or product supports, please contact customer service at the address listed below. We will respond your request in a timely fashion and will work with you toward your complete satisfaction.
