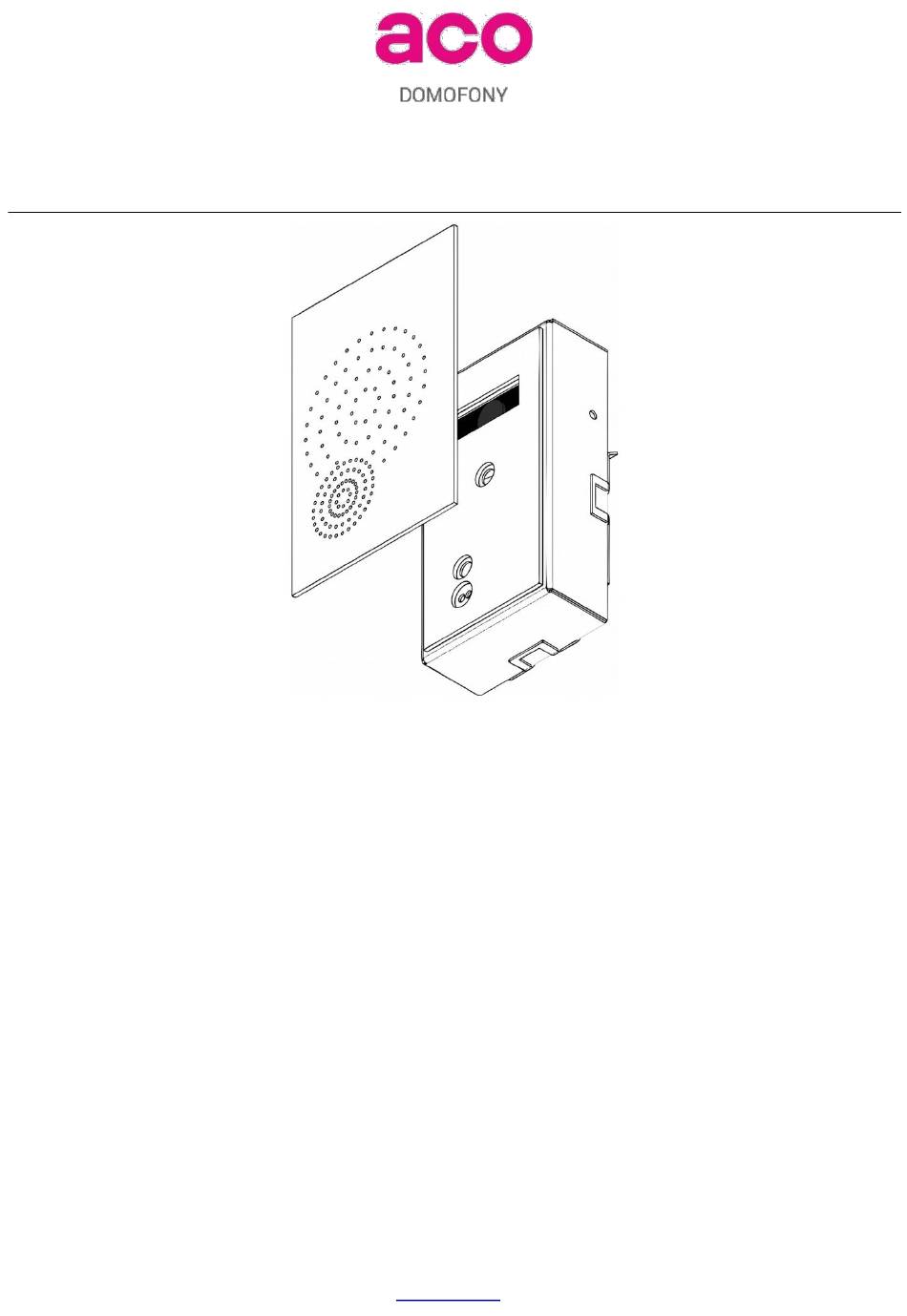

ACO MOD-SPK-PRO Operating Manual

OPERATING MANUAL FOR THE MOD-SPK-PRO (G3) BUILT-IN MAIN MODULE for PRO DIGITAL

GENERAL INFORMATION

The built-in main unit module is designed for use in single and multi-family solutions, where the transmission of audio or video signal using an
optional camera is required, and the door entry unit is installed in any structure. The module can be mounted in already installed front panels with external
call buttons or can be used to combine a letterbox with a door entry unit. The module works similarly to COMO-PRO series panels (generation 3 PRO
panels).
The call module has no own call buttons. The external call button is to be connected to module INPUT. By default INPUT will cause calling any
receiver. More call buttons can be connected using the optional MOD-10NBP module (to be purchased separately). The MOD-10NBP module supports
up to 10 buttons (for more buttons more modules are necessary) . Thus the connected buttons can be freely configured and assigned to individual
addresses set in the receivers (between 1 and 255, by default the module supports addresses from 1 to 10). Any number of receivers can be assigned to
the same address.
The main module supports receivers of the PRO system (such as video receivers for MPRO 7/GLASS-PRO-7, MPRO 4 etc.; as well as the
UPRO audio receiver). Receivers with the address set to 0 will react to any address.
The module can also recognise the proximity key fobs, which makes it easy to open the door directly from the module. The module features an
antenna to be installed separately. The module also features an additional external microphone, which can be used instead of the built-in microphone, in
specific cases.
The housing is made of stainless steel, which provides effective mechanical and weather protection.
The module can be used to control external devices, such as gate, barriers, roller shutters, lighting (optional PRO-I/O module is necessary).
The topology of the system is based on twisted-pair, min. cat. 5e (UTP).
The module can be configured using the "PRO 3 MANAGER" PC application and optional modules (to be purchased separately) to connect the
panel with computer via CDN-USB or PRO-USB (via the system bus) . Configuration of MOD-10NBP modules is done using the FAM-P application and
CDN-USB interface. The PRO 3 MANAGER application can also be used to manage proximity key fobs and for software updates. All applications are
available free of charge from www.aco.com.pl.
If it is necessary to run a video system, use a PAL external analogue camera or purchase MOD-CAM-FAM dome camera module dedicated for
installation: (the module is based on the dome camera that is available in COMO/Familio panels). When using a PAL analogue camera, a combiner
module (CDNVS or CDNVS-60) should also be used.
G3: Generation 3 PRO can be used for:
- Programming settings and software updates via the system bus (optional PRO-USB module required)
- Individual numbers of each module (Dev ID)
- Compatibility with earlier PRO system generations
- Connecting two main modules in one system, i.e. master and slave (to switch the camera signal it is necessary to use the PRO-VIDEO-SW2-60
(G3) camera switch module)
SYSTEMS (including PRO-A)
