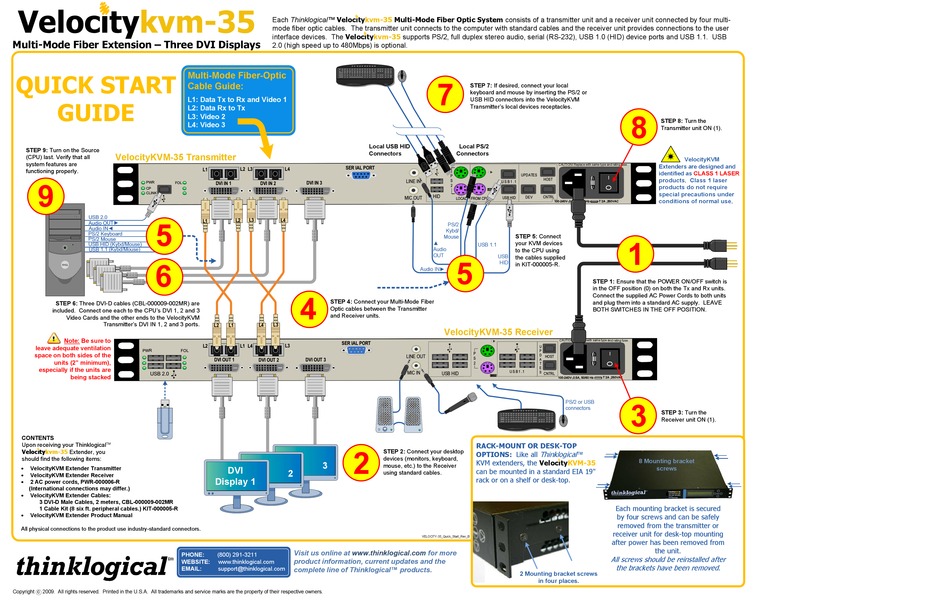

Velocitykvm-35
Multi-Mode Fiber Extension – Three DVI Displays
QUICK START
Multi-Mode Fiber-Optic
Cable Guide:
GUIDE
L1: Data Tx to Rx and Video 1
L2: Data Rx to Tx
L3: Video 2
L4: Video 3
STEP 9: Turn on the Source
VelocityKVM-35 Transmitter
(CPU) last. Verify that all
system features are
9
functioning properly.
5
3
6
STEP 6: Three DVI-D cables (CBL-000009-002MR) are
included. Connect one each to the CPU's DVI 1, 2 and 3
Video Cards and the other ends to the VelocityKVM
Transmitter's DVI IN 1, 2 and 3 ports.
Note: Be sure to
leave adequate ventilation
space on both sides of the
units (2" minimum),
especially if the units are
being stacked
CONTENTS
Upon receiving your Thinklogical
Velocitykvm-35 Extender, you
should find the following items:
VelocityKVM Extender Transmitter
VelocityKVM Extender Receiver
2 AC power cords, PWR-000006-R
(International connections may differ.)
VelocityKVM Extender Cables:
3 DVI-D Male Cables, 2 meters, CBL-000009-002MR
1 Cable Kit (8 six ft. peripheral cables.) KIT-000005-R
VelocityKVM Extender Product Manual
All physical connections to the product use industry-standard connectors.
PHONE:
WEBSITE:
EMAIL:
Copyright c 2009. All rights reserved. Printed in the U.S.A. All trademarks and service marks are the property of their respective owners.
Each Thinklogical™ Velocitykvm-35 Multi-Mode Fiber Optic System consists of a transmitter unit and a receiver unit connected by four multi-
mode fiber optic cables. The transmitter unit connects to the computer with standard cables and the receiver unit provides connections to the user
interface devices. The Velocitykvm-35
2.0 (high speed up to 480Mbps) is optional.
Local USB HID
Connectors
4
STEP 4: Connect your Multi-Mode Fiber
Optic cables between the Transmitter
and Receiver units.
2
STEP 2: Connect your desktop
devices (monitors, keyboard,
3
mouse, etc.) to the Receiver
DVI
2
using standard cables.
Display 1
Visit us online at www.thinklogical.com
(800) 291-3211
product information, current updates and the
www.thinklogical.com
support@thinklogical.com complete line of Thinklogical™ products.
supports PS/2, full duplex stereo audio, serial (RS-232), USB 1.0 (HID) device ports and USB 1.1. USB
7
STEP 7: If desired, connect your local
keyboard and mouse by inserting the PS/2 or
USB HID connectors into the VelocityKVM
Transmitter's local devices receptacles.
Local PS/2
Connectors
PS/2
Kybd/
STEP 5: Connect
Mouse
▲ your KVM devices
USB 1.1
5
Audio to the CPU using
OUT
USB the cables supplied
HID
in KIT-000005-R.
Audio IN►
VelocityKVM-35 Receiver
PS/2 or USB
connectors
RACK-MOUNT OR DESK-TOP
OPTIONS: Like all
™
KVM extenders, the VelocityKVM-35
can be mounted in a standard EIA 19"
rack or on a shelf or desk-top.
VELOCITY -35_Quick_Start_Rev_B
for more
2 Mounting bracket screws
in four places.
8
STEP 8: Turn the
Transmitter unit ON (1).
1
STEP 1: Ensure that the POWER ON/OFF switch is
in the OFF position (0) on both the Tx and Rx units.
Connect the supplied AC Power Cords to both units
and plug them into a standard AC supply. LEAVE
BOTH SWITCHES IN THE OFF POSITION.
3
STEP 3: Turn the
Receiver unit ON (1).
8 Mounting bracket
screws
V elocit ykvm- 35
Th ree Head Sing le Link
Fiber Op tic Tran smitt er
Each mounting bracket is secured
by four screws and can be safely
removed from the transmitter or
receiver unit for desk-top mounting
after power has been removed from
the unit.
