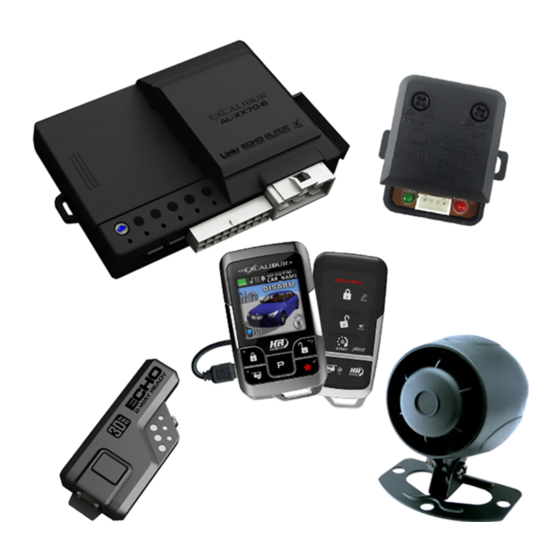

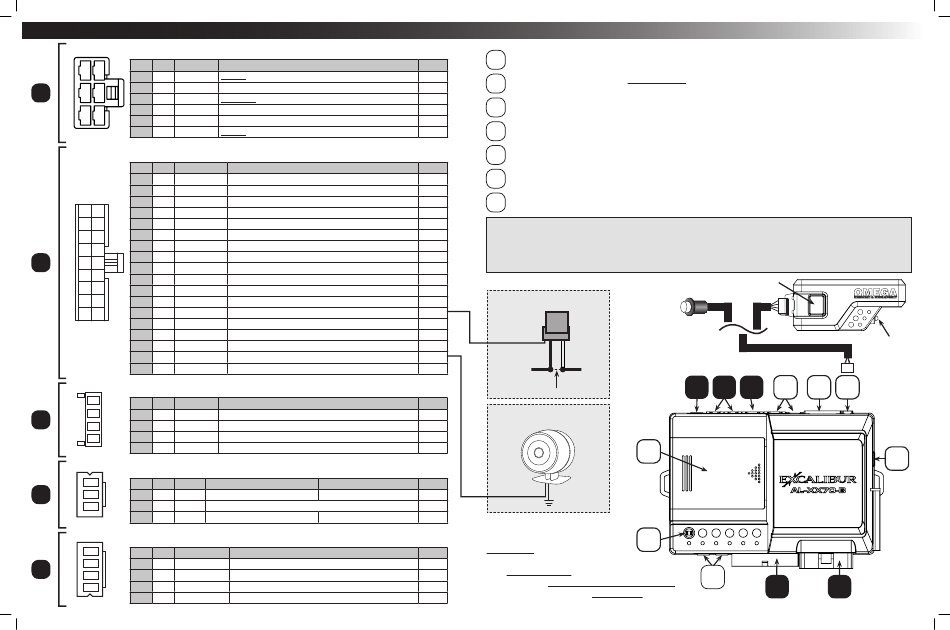

AL-XX70-B Wire Diagram
WHITE 6 PIN HIGH CURRENT POWER HARNESS
PIN
POL. COLOR
4
1
1
(+)
PINK/WHITE
2
(+)
VIOLET
A
3
(+)
ORANGE
4
(+)
RED/WHITE
6
3
5
(+)
RED
6
(+)
PINK
WHITE 18 PIN MAIN INPUT/OUTPUT HARNESS
PIN
POL. COLOR
1
(-)
VIOLET/WHITE
2
(+/-)
BLACK/RED
3
(+/-)
GREEN/VIOLET
10
1
4
(-)
WHITE/BLACK
5
(+)
BROWN/RED
6
(+/-)
WHITE/RED
7
(+)
WHITE
8
(+/-)
BROWN/BLACK
B
9
(+/-)
VIOLET/BLACK
10
(-)
GREEN
11
(+)
VIOLET
12
(-)
RED/WHITE
13
(-)
ORANGE
18
9
14
(-)
BLACK
15
(-)
BLACK/WHITE
16
(-)
GRAY
17
(+)
BROWN
18
(+/-)
BLUE/BLACK
RED 4 PIN DOOR LOCK/UNLOCK HARNESS
1
PIN
POL. COLOR
1
(-)
GREEN
C
2
(+)
EMPTY PIN
3
(-)
BLUE
4
4
(-)
PINK
RED 3 PIN REMOTE START HARNESS
1
PIN
POL. COLOR
FUNCTION (RED PORT)
D
1
(-)
BLUE
Same as PINK (A6) - OUTPUT (250ma)
2
(+)
RED
3
3
(-)
GREEN
Start - OUTPUT (250ma)
WHITE 4 PIN AUXILIARY HARNESS
1
PIN
POL. COLOR
1
(-)
PINK
E
2
(-)
WHITE/BLUE
3
(-)
LT. GREEN/RED
4
4
(-)
LT. GREEN/BLACK OEM Alarm Disarm (Prog. - Installer Feature #18) - OUTPUT (250ma)
(P/N: H-RS6E*)
FUNCTION
IGNITION / Accessory / Start - INPUT/OUTPUT***
START - INPUT/OUTPUT
ACCESSORY / Ignition / Start - INPUT/OUTPUT***
Feed For ORANGE (A3) / VIOLET (A2) / WHITE (B7) - INPUT (30A Fused)
System Power - INPUT (30A - Fused)
IGNITION / Accessory / Start - INPUT/OUTPUT***
(P/N: H- RS18A)
FUNCTION
Tach Pulse Input (coil or injector) - INPUT
Light Flash (Prog. - Installer Feature #5) Relay Pin 87 - INPUT
Light Flash (Prog. - Installer Feature #5) Relay Pin 30 - OUTPUT (10A)
Light Flash - OUTPUT (250ma)
Brake Pedal RS Shutdown - INPUT
Light Flash (Prog. - Installer Feature #5) Relay Pin 87a - INPUT
Light Flash - OUTPUT (10A Fused)
Horn Honk (Prog. - Installer Feature #19) Relay Pin 87a - INPUT
Horn Honk (Prog. - Installer Feature #19) Relay Pin 87 - INPUT
Door Trigger - INPUT
Door Trigger - INPUT
Trunk Release - OUTPUT (250ma)
Starter Kill - OUTPUT (500ma)
System Ground - INPUT
Parking Brake/Neutral Safety - INPUT (Required For Manual Transmission)
Hood Trigger - INPUT
Siren - OUTPUT (1A)
Horn Honk (Prog. - Installer Feature #19) Relay Pin 30 - OUTPUT (10A)
(P/N: DLP-N4)
FUNCTION
Lock Pulse - OUTPUT (250ma)
Constant +12V Supply To Plug-in Door Lock Adapters - OUTPUT (500ma)
Unlock #1 Pulse - OUTPUT (250ma)
Unlock #2 Pulse - OUTPUT (250ma)
(P/N: RS-OUTPUT)
FUNCTION (BLUE PORT)
Status/GWR (Prog - Installer Feat #6)
Constant +12V Supply For Relays Or Modules - OUTPUT (500ma)
Same as ORANGE (A3)
(P/N: H-RS4)
FUNCTION
3rd Channel - OUTPUT (250ma)
Remote Start Activation - INPUT
OEM Alarm Arm (Prog. - Installer Feature #18) - OUTPUT (250ma)
F
WHITE 4 PIN PLUG-IN SENSOR PORTS
DATA**
TEMPERATURE SENSOR
4
G
4
(For high/low temp auto start and for automatic low temp crank extender)
4
H
BLADE CARTRIDGE PORT
GREEN & BLACK DATA PORTS
I
4
Module. (DBI & iDatalink protocols supported on both ports - see 'Vehicle Learn' or installer feature #12)
J
BLADE HARNESS PORT
DATA**
ANTENNA / STATUS LIGHT / VALET PORT
K
4
button status light (P/N: AU-LED-PB2)
4
BACKUP BATTERY PORT
L
4
Featuring PowerMaze technology - It only supports security critical functions!
4
* Optional 'OL-HRN-RS' T-harnesses available.
4
Optional low current (LC) harness available - P/N H-RS6BLC (ask about HC>LC exchange program)
4
**
= The function is supported via the data ports. Confirm vehicle support in interface module install guide.
4
4
*** Function auto-detected during VEHICLE LEARN procedure - SEE OTHER SIDE OF THIS SHEET
Default function is capitalized and underlined
4
4
Starter Interrupt/Anti-Grind Relay
4
(P/N: AU-SOCKET - Optional)
4
ORANGE
4
RED
WHITE
Ign. Switch
Starter
Cut Starter Wire
DATA**
High Output 6-Tone Mini Siren
4
(P/N: AU-73M - Optional)
4
4
DATA**
RED
BLACK
4
Chassis Ground
4
Tech Support
DATA**
Phone: 800-921-TECH (8324)
4
Web: OmegaDealer.com
4
FB dealer group: Facebook.com/groups/omegadealer
4
Corporate Site / Product Info: CarAlarm.com
4
(harness included w/ optional sensors)
- DO NOT COVER
- For OL-BLADE-AL64 or OL-BLADE-TB
- For Telematics / Data Sensor (Shock, Tilt, etc) / Vehicle Interface
- Use harness from BLADE or an 'OL-HRN-RS' T-Harness.
- Supports any compatible plug-in antennas or push-
- Uses standard 9v battery (not included) with included bracket & plug.
Valet / Programming
Push-Button
Button
Status Light
(P/N: AU-LED-PB2)
OR
C D E
I
H
G
F
B
Status Light
J K
L
A
QIM_AL-XX70-B_20190605
