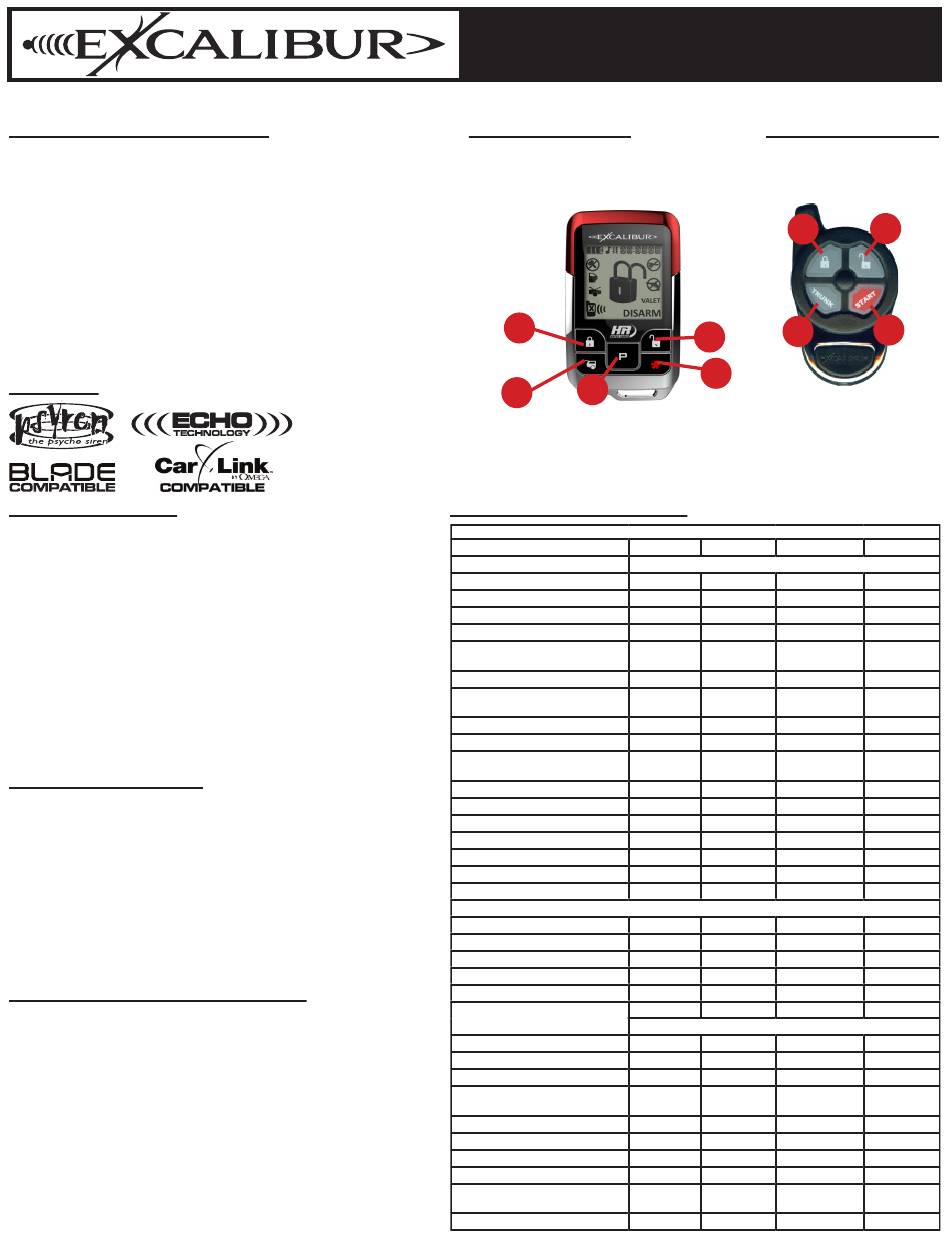

Excalibur AL-1855-EDPB Quick Start Manual

Transmitter/Controller Operations:

LOCK/ARM: Press and release "lock" once
UNLOCK/DISARM: Press and release "unlock" once
TRUNK RELEASE/2ND CH: Press "trunk" for 3 seconds
REMOTE START: Press "start" twice in 5 seconds
(see user feature #17 for options)
REMOTE VALET: Press "start" within 5 seconds of pressing
"unlock"
LOW BATTERY\LOW TEMP AUTO STARTING: Press "start"
within 5 seconds of pressing "lock"
PANIC: Press "lock" or "unlock" for 3 seconds
SILENT ARM/DISARM: Press "trunk" twice in 5 seconds
SENSOR BYPASS: Press "trunk" within 5 seconds of arming
Technology

Feature Programming:

1. Turn the ignition key "on, then "off"
2. Within 7 seconds of step 1, press the valet switch 5 times
(user features) or 10 times (installer features). This
siren/horn will sound.
3. Press the valet switch the number of times equal to the
feature number you wish to access.
4. Press the controller/transmitter button that corresponds to
the desired setting.
5. To change additional features, repeat steps 3-4.
6. To exit programming, turn the ignition key "on", then "off"
or the system will exit automatically if there is a 10 sec-
ond delay between any steps.

Tach Learning Procedure:

1. Turn the ignition key "on"
2. Within 10 seconds of step 1, press the brake pedal 5
times. The siren/horn will chirp 5 times.
3. Start the engine with the key. When tach is successfully
learned, the status light will turn on solid.
4. If you need to relearn a later tach signal due to cold start/
high idle, you can press the valet switch once to learn
the current tach signal. The status light will turn off and
back on to indicate it has relearned.

Programming Controllers/Transmitters:

1. Be sure to have all controllers/transmitters present and be
sure the system is in a disarmed/unlocked state.
2. Turn the ignition key "on".
3. Within 7 seconds of step 1, press the valet switch 5 times.
The siren/horn will sound.
4. Press LOCK on one transmitter/controller until you hear a
single chirp.
5. Repeat step 4 for each transmitter/controller to be pro-
grammed.
6. To exit programming, turn the ignition key "off" or the sys-
tem will exit automatically if there is a 10 second delay
between any steps.
DELUXE 2-WAY ALARM & REMOTE START SYSTEM

Programmable Features Matrix

AL-1855-EDPB
The 2-Way Controller
Part number: 157-07
Battery: Rechargeable
Frequency: 900MHz
1
5
2
1. LOCK button
2. UNLOCK button
3. TRUNK button
User Feature Programming: Ignition on, off, press valet 5 times
# Feature Lock Button
1 Secure Code 1, 0 (default)
2 Last Door Arming Off
3 Automatic Rearming Off
4 Starter Interrupt Functions Alarm
5 Ignition Override On
6 Ignition Lock/Unlock Off
7 Open Door Bypass For Ign. Locks On
8 Confirmation Chirps On
9 Chirp Volume Low
10 Alarm Cycle 30 sec
On w/ Disarm +
11 Flashing Lights Confirmation
RS Steady
12 Disarm Upon Trunk Release On
13 Arming Delay 3 sec
14 Alarm Functions Bypass On
15 Anti-carjack Ignition Only
16 Open Door Warning Upon Arm On
17 Remote Start Activation Start / Pulse x 2
18 Remote Start Run Time 5 min
Installer Feature Programming: Ignition on, off, press valet 10 times
1 Doorlock pulse 0.8 sec
2 Light Relay Functions Dome light
3 Horn Relay Functions Horn
4 Turbo Timer Off
5 Manual Transmission On
Tachless Hi
6 Engine detection
Crank Only (press Lock + Unlock)
7 Crank Time 0.7 sec
8 Pink/White Ignition Wire Function Ignition
9 Arm/Disarm/Additional Ch. Arm/Disarm
10 Gas or Diesel Engine Gas
11 Remote Start Lock control Off
12 Low Temp Crank Extender 0ms
13 Data Port Protocol D2D (Trilogix)
14 Lock on prewarn On
15 Blue Satellite Port Blue Wire Function Status
16 Low Current/Motorcycle Mode On
The 1-Way Transmitter
Part number: 1410-07
Battery: 1 x CR2032
Frequency: 900MHz
1 2
3
3
4
4. START button
5. PROGRAMMING button
Unlock button Trunk button "START" button
On w/o lock On w/ Lock
On w/o lock On w/ Lock Enhanced Rearm
Anti-Grind Only Alarm+Anti-Grind Automatic
Off
Lock + Unlock w/
Lock w/ IGN ON Unlock w/ IGN Off
IGN On/Off
Off
Except Valet
On Demand Off
mode
Med Low Med Loud Loud
60 90 120
On w/ Disarm + Flashing During
Steady During RS
RS Flashing RS
Off
15 30 45
Off
Door Only Ignition + Door Off
Off
Start / Pulse x 1 Lock+Unlock
10 min 15 min 20 min
3 sec Double unlock Total closure
Lock Ignition Acc
Unlock Trunk Release Pulse after Start
1 min 2 min 3 min
Off
Tachless Lo Tach Wire Datatach
1 sec 1.5 sec 2.25 sec
Accessory Start
Arm/Ch 5 Ch4/Disarm Ch 4/Ch 5
Diesel Diesel Diesel
(15 sec. Delay) (20 sec. Delay) (30 sec. delay)
Lock after start Unlock before start Both
200ms 300ms 400ms
ADS (iData)
Off
Pulse Before Pulse After Start Pulse After
Start Below Freezing Engine Off
Off
4
