Excalibur POWERSPORTS AL-1070-PS Programming Manual

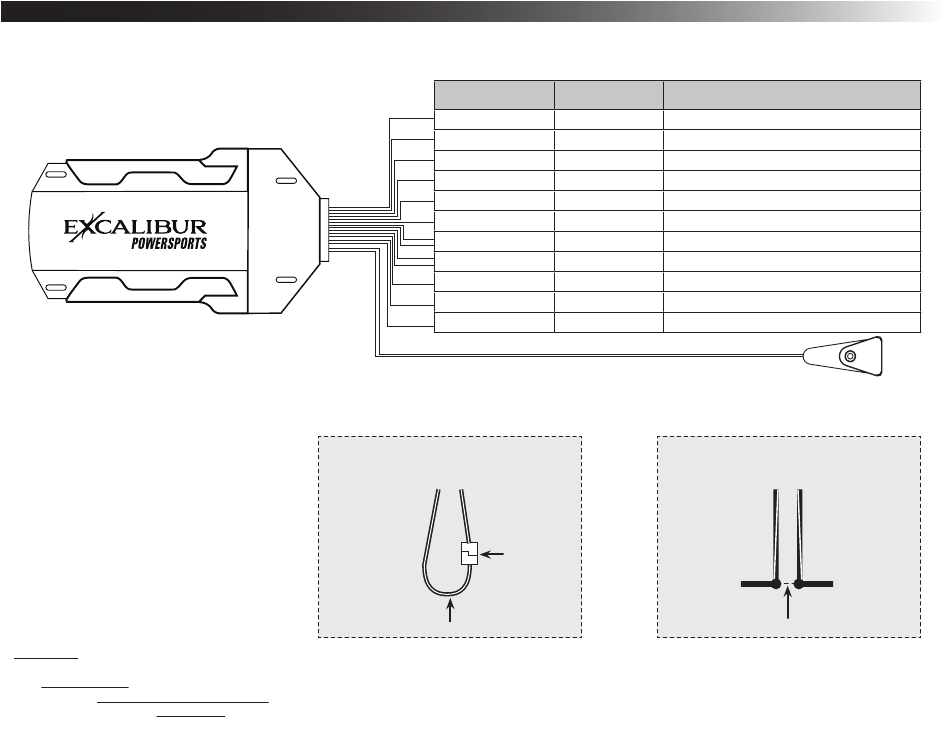

AL-1070-PS Wire Diagram
Tech Support
Phone: 800-921-TECH (8324)
Web: OmegaDealer.com
FB dealer group: Facebook.com/groups/omegadealer
Corporate Site / Product Info: CarAlarm.com
COLOR
MAIN HARNESS
RED
BLACK
YELLOW
BROWN
WHITE
WHITE/RED
BLACK/ORANGE (x2)
VIOLET/WHITE (x2)
BLUE
RED/WHITE
BLACK/WHITE
Trigger Loop Wiring
AL-1070-PS
Main Harness
VIOLET/WHITE VIOLET/WHITE
Wire loop thru cargo or helmet carrier
POL. FUNCTION
(+) 12V Constant - INPUT (5A Fused)
(-) System Ground - Input
(+) 12V Ignition - INPUT
(+/- Programmable) Siren/Horn - OUTPUT (500ma) See Feature #7
(Selectable) Light Flash - OUTPUT
(+/-) Light Flash Polarity- INPUT (15A Fused)
(Relay) Starter Interrupt - INPUT/OUTPUT
N/A Normally Closed Trigger Loop - INPUT/OUTPUT
(-) Instant Trigger - INPUT
(-) AUX - OUTPUT
N/A Antenna - DO NOT CUT or CONNECT
BLACK/ORANGE
Disconnect
bullet
connectors
to loop
Ign. Switch
thru cargo,
helmet, etc.
Status LED
Starter Interrupt Wiring
AL-1070-PS
Main Harness
BLACK/ORANGE
Starter
Cut Starter Wire
