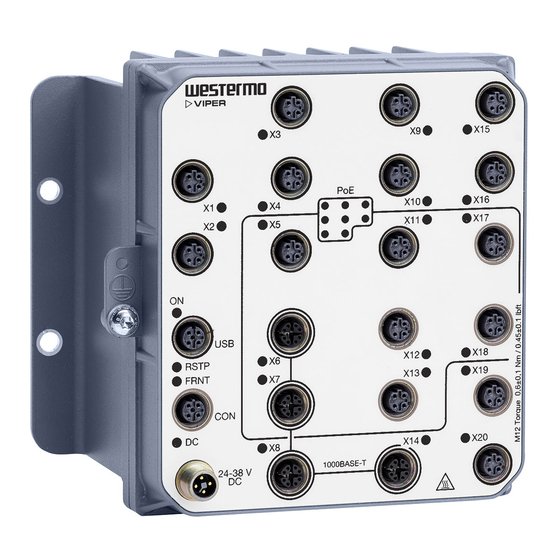

- Page 1 Viper 12A Series 12 port Ethernet M12 switches...
-
Page 2: Table Of Contents
4.4. Cooling ................18 4.5. Replacement of Product ............18 4.6. EN 45545-2 Mounting Notes ..........18 5. Specifications ................19 5.1. Interface Specifications ............19 5.2. Type Tests and Environmental Conditions ......... 22 6. Revision Notes ................24 Viper 12A Series... -
Page 3: General Information
Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety And Regulations
No personal injury Minor damage to the to avoid misuse of the product product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1. Warning levels Viper 12A Series... -
Page 5: Safety Information
During installation, ensure a protective earthing conductor is first connected to the protective earthing terminal (only valid for metallic housings). Westermo recommends a cross-sectional area of at least 4 Note that this product can be connected to two different power sources. -
Page 6: Care Recommendations
If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, the nearest Westermo distributor office or Westermo technical support. Viper 12A Series... -
Page 7: Product Disposal
• EN 50155/IEC 60571, Railway applications - Electronic equipment used on rolling test) stock Fire protection • EN 45545-2, Fire protection on railway vehicles • NFPA 130, Fire protection for fixed guideway transit and passenger rail system Table 2. Agency approvals and standards compliance Viper 12A Series... -
Page 8: Fcc Part 15.105 Class A Notice
2.5.3. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives and UK legislations. The full declaration of conformity and other detailed information is available at www.westermo.com/support/product-support. -
Page 9: Product Description
Thorough type testing at independent ISO/IEC 17025 and ILAC MRA certified labs, accredited to a wide range of standards, show that the Viper series fulfills EN 50155 and other requirements. The state-of-the-art Westermo production facility ensures the quality of each individual unit, e.g. through temperature cycling burn-in testing. - Page 10 3635-0610 Viper-112A-T5G 3635-0020 Viper-212A 3635-0320 Viper-212A-T3G 3635-0620 Viper-212A-T5G Table 3. Available Viper-x12A models NOTICE - MECHANICAL FORCE ON VENTILATION MEMBRANE Do not cover or bring mechanical force to the ventilation membrane on the back of the product. Viper 12A Series...
-
Page 11: Hardware Overview
3.3. Hardware Overview RSTP FRNT 1000BA SE-T 24-110 V Description Description LED indicator 100 Mbps port Gbps port Power connection Console port Protective earth connection USB port Figure 3. Location of interface ports and LED indicators Viper 12A Series... -
Page 12: Connector Pinout
-COM Table 4. Power connector Pin no. Signal Illustration No Connect. Do not connect. Table 5. Console connector Pin no. Signal Illustration VBUS No Connect. Do not connect. Table 6. USB connector Viper 12A Series... - Page 13 Signal Illustration MDI, MDI-X and auto MDI/MDI-X modes are supported. The table shows signals in MDI mode. Table 7. 100 Mbps Ethernet connector Pin no. Signal Illustration Table 8. Gbps connector Viper 12A Series...
-
Page 14: Led Indicators
Power failure on DC1 or DC2 X1 to X12 No link GREEN Link established GREEN Data traffic indication FLASH YELLOW Port alarm, or port is set in blocking state by link redundancy protocol Table 9. LED indicators Viper 12A Series... -
Page 15: Dimensions
3.6. Dimensions Dimensions are stated in mm. 164 ±0,5 Grounding point Screw M5x10 Figure 4. Dimensional drawing Viper 12A Series... -
Page 16: Installation
Use four M5, M6 or 1/4" screws with 12 mm washers on a flat and stable surface. RSTP FRNT 24-110 V RING Figure 5. Wall mounting 4.2. Protective Earth Connection For correct function, the earth connection needs to be properly connected to a designated PE rail. See the figure below. Viper 12A Series... -
Page 17: Connection Of Cables
This product has no internal fuse and should be connected via an external fuse for protection. NOTE - UNUSED CONNECTORS Unused connectors must be covered by a protective cap (delivered with the product), tightened to the specified torque in order to fulfill the specified ingress protection code. Viper 12A Series... -
Page 18: Cooling
[17]. For easy replication of the configuration of the original product, it is recommended to have the Westermo USB plug permanently connected to the USB port and move it over to the replacement product before it is powered up. MTTR (Mean Time To Repair), i.e. time for replacement of product is: < 10 minutes. -
Page 19: Specifications
To all other ports Circuit type Secondary circuit hazardous voltage, OVC II Connector 4-pin, male, M12, A-coded, recommended Westermo cables: 3146-1106 for 1.5 m 3146-1107 for 5 m Cable size M12, recommended power cable area 0.5 mm² (minimum 0.25 mm²),... - Page 20 Transmission range Up to 150 m with CAT5e cable or better Isolation To all other ports Connector 4-pin, female, M12, D-coded, auto MDI/MDI-X, recommended Westermo cables: 3146-1100 M12-M12 - 1 m 3146-1101 M12-M12 - 5 m 3146-1103 RJ45-M12 - 1 m...
- Page 21 500 mA Circuit type SELV Isolation To all Ethernet and DC ports No isolation to CON or protective earth Connector 5-pin, female, M12, A-coded, recommended Westermo USB plug 3641-0190 Console port Electrical specification RS-232 Data rate 115.2 kbit/s Data format...
-
Page 22: Type Tests And Environmental Conditions
Ethernet ports to 2250 VDC, 1 min all other ports Gbps Ethernet 2250 VDC, 1 min ports to all other ports 750 VDC after damp heat, according to EN 50155 Table 10. EMC and electrical conditions Viper 12A Series... - Page 23 IEEE 1478 Class 1, condition E4. Indoor Refer to "Safety and Regulations" chapter regarding touch temperature Operational at +85°C for a limited time Installation and maintenance shall be made under controlled environments. Table 11. Environmental and mechanical conditions Viper 12A Series...
-
Page 24: Revision Notes
Change description Rev. J 2021-05 Westermo logo updated, blue product illustrations throughout the user guide, 2.2 Safety Information - various warnings updated in accordance with General and Information Safety manual, 2.3 Care Recommendations, text updated, old chapter 2.4 Maintenance deleted, 2.5.1. Agency Approvals and Standards Compliance updated, 2.5.3 Simplified Declaration... - Page 25 Viper 12A Series...
- Page 26 Viper 12A Series...
- Page 27 Viper 12A Series...
- Page 28 Westermo • Metallverksgatan 6, SE-721 30 Västerås, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com 6641-22511 REV. J 2021 05 Westermo Network Technologies AB, Sweden...
