Cdb8415A.exe User's Guide; Main Window; Figure 1. Cdb8415A Main Control Panel - Cirrus Logic Crystal CDB8415A Manual

Evaluation board for the cs8415a

Table of Contents

3. CDB8415A.EXE USER'S GUIDE

3.1

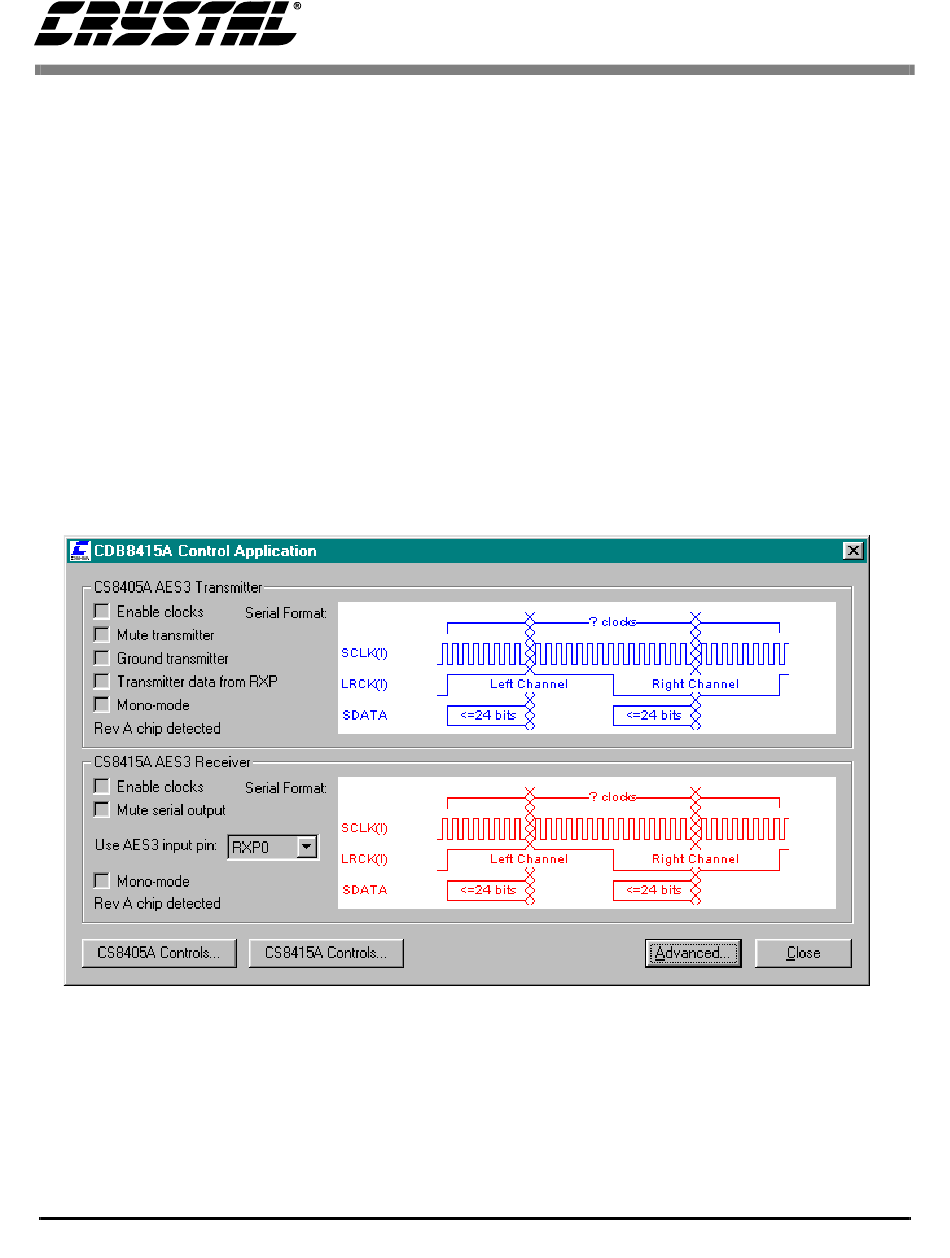

The CDB8415A Control Panel allows you to view

the configuration of the CS8415A and the

CS8405A. A limited set of controls are available

for each part, including control of the enable clocks

function (RUN bit in the Clock Control register) for

each part. Clicking the left mouse button on either

the CS8405A button or the CS8415A button will

bring up a contol panel containing all the register

bits relevant to that part.

Clicking on the Advanced button at the lower right

brings up the Advanced mode control panel. In Ad-

vanced mode you may read and write hex values

into specified registers in either part. Changes

made on the CS8405A or CS8415A control panels

will also be immediately reflected in the Main Win-

dow, so you may wish to arrange them so that they

do not obscure each other. Of particular use are the

windows displaying the serial input formats of the

two chips.

CDB8415A

DS470DB1
