NetPA U 2002 SB • Setup Guide (Continued)
Renaming the NetPA U 2002 SB Amplifier in Dante Controller
From the control computer Start menu select: All Programs > Audinate > Dante Controller > Dante
1.
Controller
The Dante Controller - Network View screen opens. All Dante devices on the network are discovered and listed.
2.
From the Device menu, select Device View or press <Ctrl+D> on the keyboard.
3.
The Dante Controller - Device View dialog opens. Select the device being configured from the (Select a Dante
4.
Device...) drop-down list. The Device View dialog populates with the selected NetPA U 2002 SB information (see figure
9 below).

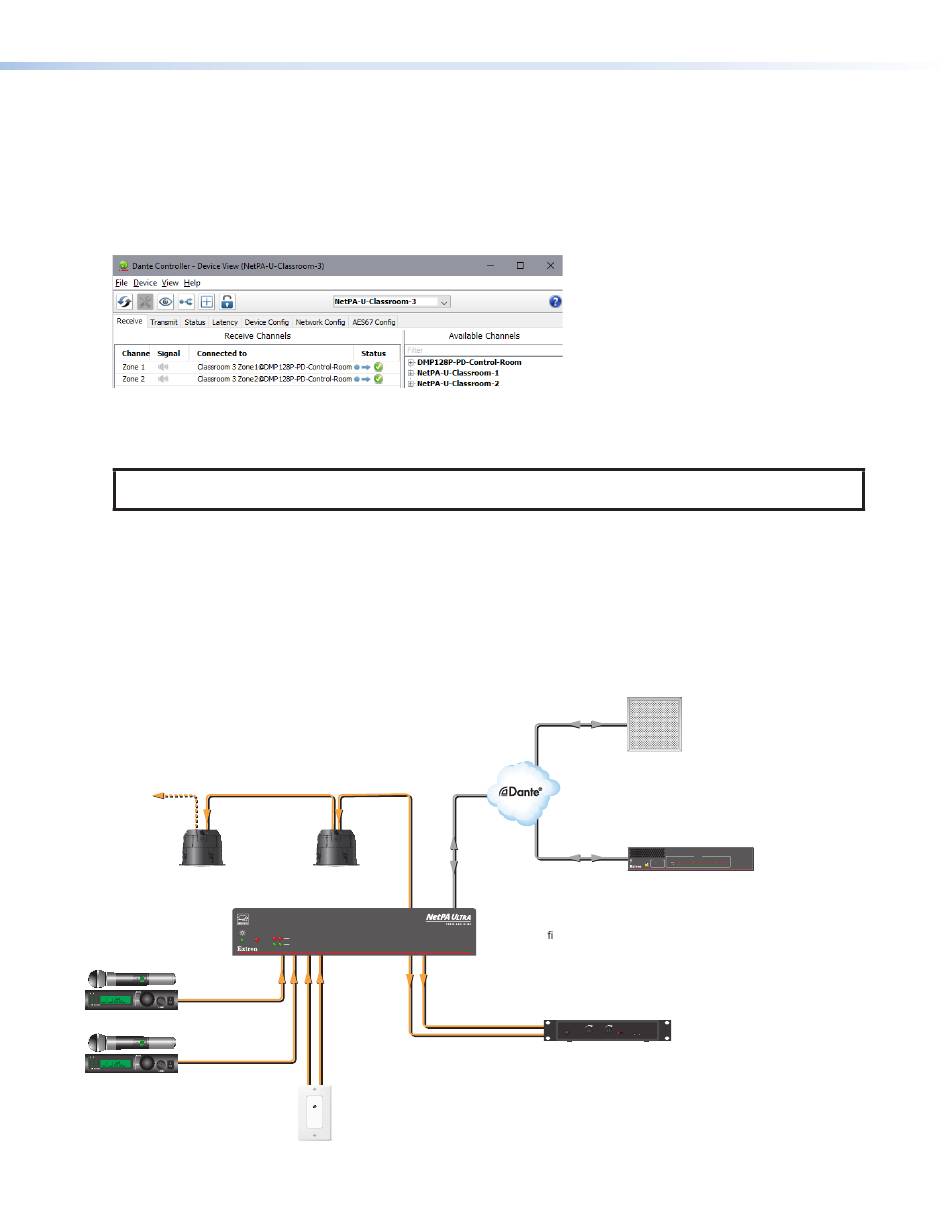

Figure 9. Populated Device View Dialog Box
Click the Device Config tab to open the Device Config page.
5.
In the Rename Device panel, enter the new name of the device in the text field.
6.
NOTE:
No spaces are allowed in the name and names should be significant identifiers. For example,
NetPAUAmplifier-MainRack
Click Apply. A confirmation prompt opens. Click Yes to confirm the new name.
7.
Repeat as necessary for all devices.
8.

Creating a Physical Dante Network

A physical network is required to share Dante audio channels among Dante-enabled devices like those found in the
NetPA U 2002 SB. Other devices capable of sending and receiving audio over a Dante network must be on the same physical
network in order to communicate with Dante (see figure 10 below for an example of a Dante network).
Extron
SF 26CT
Two-Way Ceiling Speakers
Wireless Mic 1
Wireless Mic 2
Physical Dante Network Diagram
Figure 10.
8
OVER
TEMP
1 2
LIMITER/PROTECT
SIGNAL
Audio Inputs
Extron
WPD 101 3.5 mm
AUDIO
Audio Pass-Through Wallplate
- Decorator-Style
Extron
Local Audio
Ethernet
Ethernet
Ethernet
Extron
NetPA U 2002 SB
Power Ampli er
NetPA U 2002 SB
Audio Line Out
Assistive Listening
System Transmitter
Ceiling
Array Mic
INPUTS
ACTIVITY
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
EXP LAN CLIP
CONFIG
SIGNAL
XMP 240 C AT
EXPANSION MATRIX PROCESSOR
Extron
XMP 240 C AT
Expansion Matrix Processor
