NetPA U 8001 SUB • Setup Guide (Continued)
To configure Dante device settings:
Open DSP Configurator and connect live to the NetPA U 8001 SUB.
1.
Select Tools > Device Settings. The Device Settings dialog box opens.
2.
From the tabs at the top of the Device Settings dialog box, select Dante Device.
3.
In the Device Name field, give the NetPA U 8001 SUB a name (recommended to be device model and location) so that it can
4.
be easily identified in Dante Controller. No spaces are allowed in the name.
Dante device network settings can also be configured in this dialog box. Use the radio buttons and text fields to choose
5.
DHCP (recommended) or Static IP and enter a static IP address configuration.
Click Apply.
6.
OK
Click to confirm changes and close the
7.
Renaming the NetPA U 8001 SUB Amplifier in Dante Controller
From the control computer Start menu select: All Programs > Audinate > Dante Controller > Dante
1.
Controller
The Dante Controller - Network View screen opens. All Dante devices on the network are discovered and listed.
2.
From the Device menu, select Device View or press <Ctrl+D> on the keyboard.
3.
The Dante Controller - Device View dialog opens. Select the device being configured from the (Select a Dante
4.
Device...) drop-down list. The Device View dialog populates with the selected NetPA U 8001 SUB information.

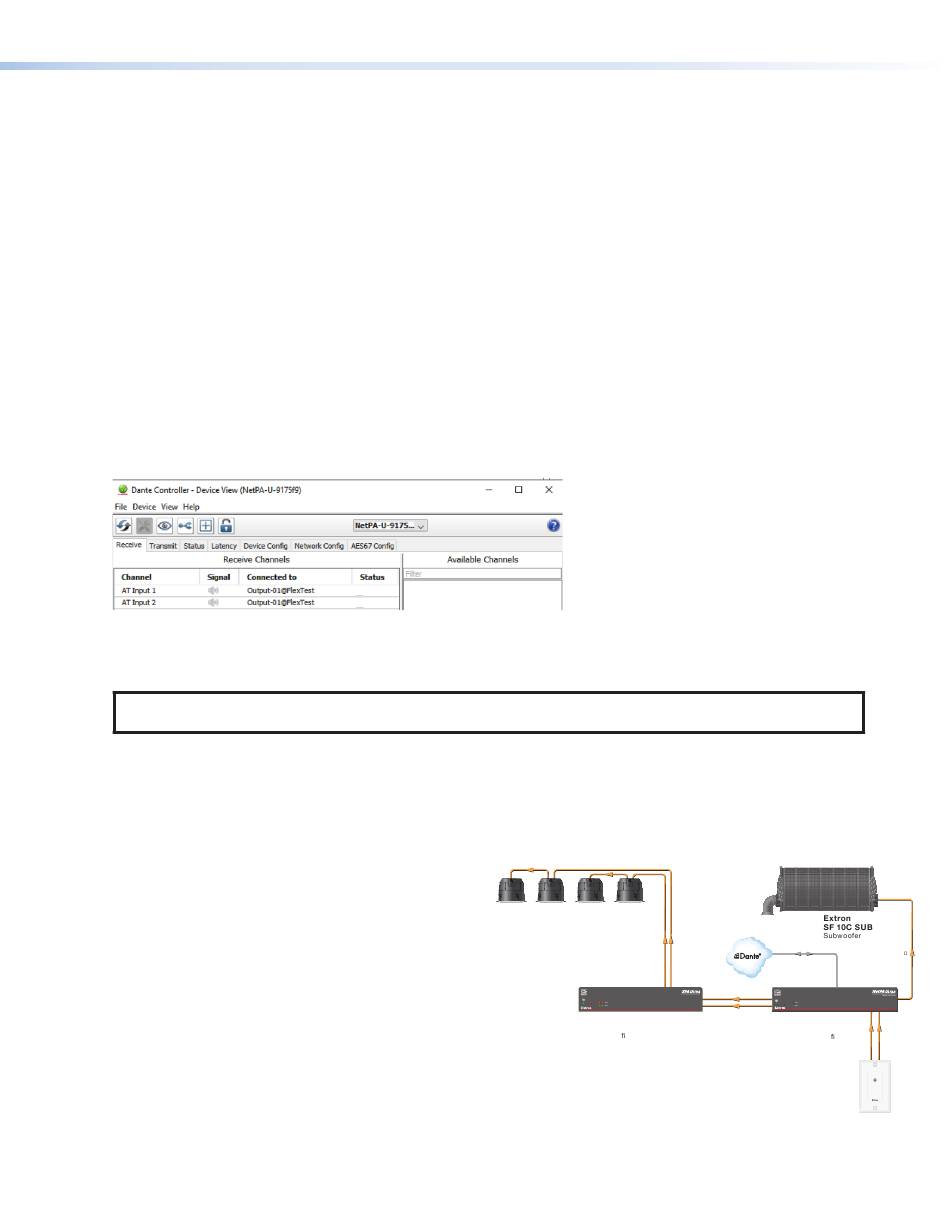

Figure 6. Populated Device View Dialog Box
Click the Device Config tab to open the Device Config page.
5.
In the Rename Device panel, enter the new name of the device in the text field.
6.
NOTE:
No spaces are allowed in the name and names should be significant identifiers. For example,
NetPAUAmplifier-MainRack
Click Apply. A confirmation prompt opens.
7.
Click Yes to confirm the new name.
8.
Repeat as necessary for all devices.
9.

Creating a Physical Dante Network

A physical network is required to share Dante audio channels
among Dante-enabled devices like those found in the NetPA
U 8001 SUB. Other devices capable of sending and receiving
audio over a Dante network must be on the same physical
network in order to communicate with Dante (see figure 7 on
the right for an example of a Dante network).
Device Settings
dialog box.
Extron
SF 26CT
Speakers
Figure 7.
Audio
Audio Line Out
POWER AMPLIFIERS
OVER
TEMP 1 2
LIMITER/PROTECT
SIGNAL
XPA U 1002 SERIES
Extron
XPA U 1002-70V
Power Ampli er
Example of a Dante Network
800 Watt @ 8
Ethernet
OVER
TEMP
LIMITER/PROTECT
SIGNAL
NetPA U 8001 SUB
Extron
NetPA U 8001 SUB
Line Inputs
Subwoofer Ampli er
Extron
AUDIO
WPD 101 3.5 mm
Single Gang
Pass-Through
Wallplate
6
