Step 7 - Checking Leds - Extron electronics NetPA U 2002 SB Setup Manual

Once the boot-up sequence is complete, the amplifier takes more time to sync with the Dante network and begin the playback of
streamed content. The front panel LED lights green after approximately 20 seconds.
ATTENTION:
• The amplifier must be powered on last.
• L'amplificateur doit être mis sous tension en dernier.
Step 7 — Checking LEDs
Check the Limiter/Protect and Signal LEDs on the front and rear panels to see if any problems are encountered (see "Front Panel
Features and Troubleshooting" in the NetPA U 2002 SB User Guide for more information).
Double-check the correct load is connected and properly wired to the rear panel connections (see
more information).
Step 8 — DSP Configurator Software Installation
There are no hardware controls for the NetPA U 2002 SB. Configuration is done using Extron DSP Configurator software and
control is performed using SIS commands. To learn about full computer requirements, see the DSP Configurator product page on
www.extron.com.
Download DSP Configurator from the Extron Website
From the Extron home page (www.extron.com), click the Download tab to open the Download page.
1.
Under Software (located on the left side of the page), select DSP Configurator Software. The DSP Configurator
2.
Software product page opens.
Click the Download button and follow the on-screen instructions.
3.
NOTE:
An Extron Insider account is required to download DSP Configurator.
Step 9 — NetPA U 2002 SB Configuration
When power is connected to the unit and the rest of the audio system, audio output can be easily configured for any listening
environment via the DSP Configurator. The following steps detail how to configure a NetPA U 2002 SB amplifier.
Configure the NetPA U 2002 SB Amplifier
Ensure the control computer is connected to either the AT port, RS-232 port, or the rear panel USB configuration port.
1.
Start the DSP Configurator software. From the splash screen drop-down list, select NetPA U 2002 SB. Click OK. The main
2.
workspace opens.
The software starts in Emulate mode:
3.
To create a configuration file offline and then upload that configuration to a NetPA U 2002 SB unit at a later time, remain
a.
in Emulate mode and save the configuration file.
To upload a configuration to the NetPA U 2002 SB unit or download the current configuration from the unit, enter Live
b.
mode. When in Live mode, changes made in DSP Configurator immediately affect the connected NetPA U 2002 SB. To
enter Live mode, click Live at the top of the DSP Configurator workspace, or select Tools > Connect to Device, or
press <F6> on the keyboard.
NOTE:
When Live mode is selected, a connection dialog box appears. Select the desired connection type and
follow the on-screen prompts (see the NetPA U 2002 SB User Guide for more information on connecting live to a
device).

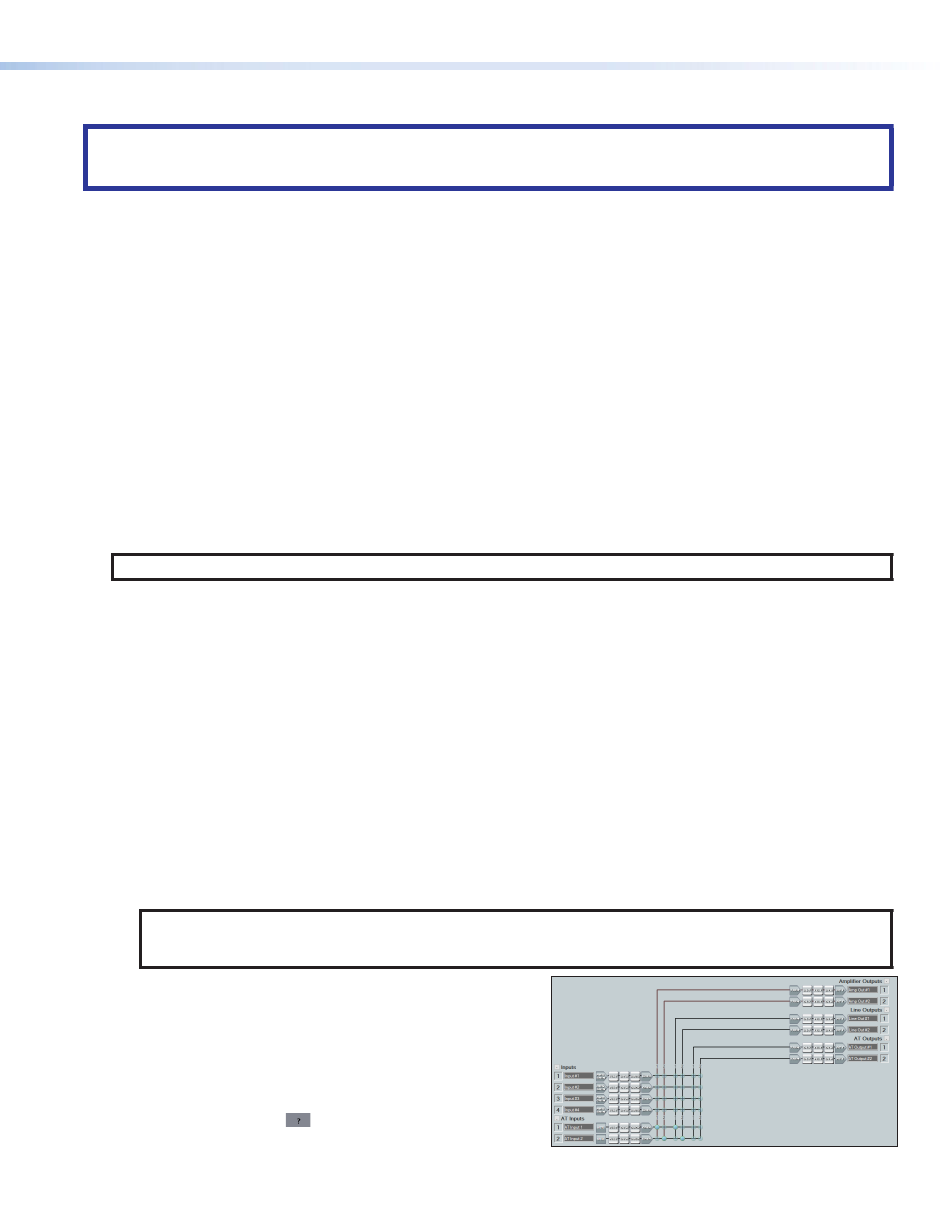

The main workspace provides access to mix matrices, gain
blocks, and DSP processors for configuring a NetPA U 2002
SB. It also provides a menu bar across the top with additional
configuration tools. For more information on using the DSP
Configurator, see the "DSP Configurator" section of the
NetPA U 2002 SB User Guide, or the DSP Configurator Help File
that can be accessed by selecting Help > Contents or
pressing <F1>. Most dialog boxes within DSP Configurator
contain a Help button (
button to open the help file topic for that particular dialog box.
) in the top right corner. Click this
Speaker Wiring on page 3 for
