NetPA Ultra Series • Setup Guide (Continued)
7

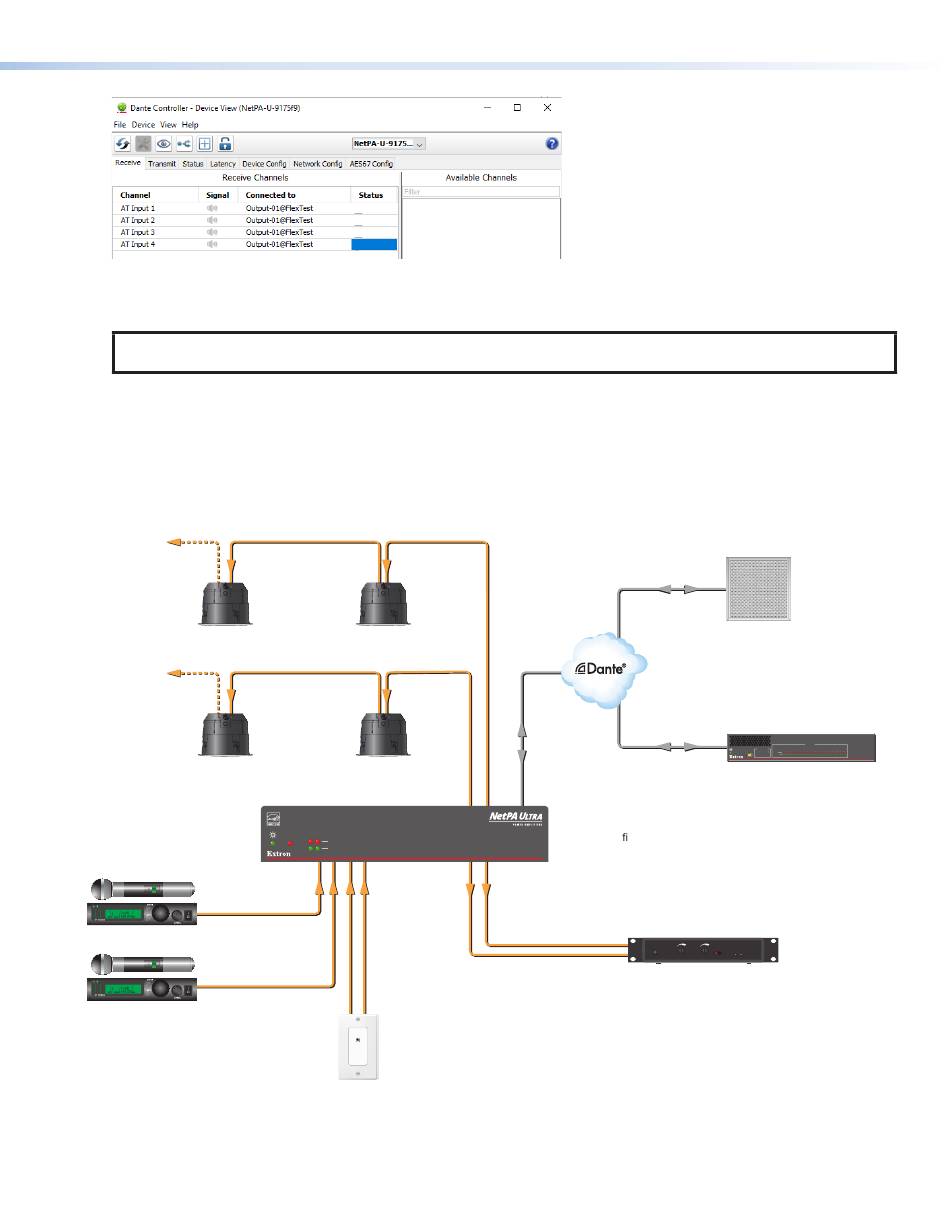

Figure Populated Device View Dialog Box
5. Click the Device Config tab to open the Device Config page.
6. In the Rename Device panel, enter the new name of the device in the text field.
NOTE:
No spaces are allowed in the name and names should be significant identifiers.
For example, NetPAUAmplifier-MainRack
7. Click Apply. A confirmation prompt opens. Click Yes to confirm the new name.
8. Repeat as necessary for all devices.

Creating a Physical Dante Network

A physical network is required to share Dante audio channels among Dante-enabled devices like those found in the NetPA Ultra
Series. Other devices capable of sending and receiving audio over a Dante network must be on the same physical network in
order to communicate with Dante. (see figure 8 for an example of a Dante network.)
Extron
SF 26CT
Two-Way Ceiling Speakers
Extron
SF 26CT
Two-Way Ceiling Speakers
Wireless Mic 1
Wireless Mic 2
6
OVER
TEMP
1 2
LIMITER/PROTECT
SIGNAL
Audio Inputs
Extron
WPD 101 3.5 mm
AUDIO
Audio Pass-Through Wallplate
- Decorator-Style
Extron
Local Audio
8
Figure Physical Dante Network Diagram
Ethernet
Ethernet
Ethernet
Extron
NetPA U 1002-70V
Power Ampli er
NetPA U 1002 SERIES
Audio Line Out
Ceiling
Array Mic
INPUTS
ACTIVITY
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONFIG EXP LAN CLIP
SIGNAL
XMP 240 C AT
EXPANSION MATRIX PROCESSOR
Extron
XMP 240 C AT
Expansion Matrix Processor
Assistive Listening
System Transmitter
