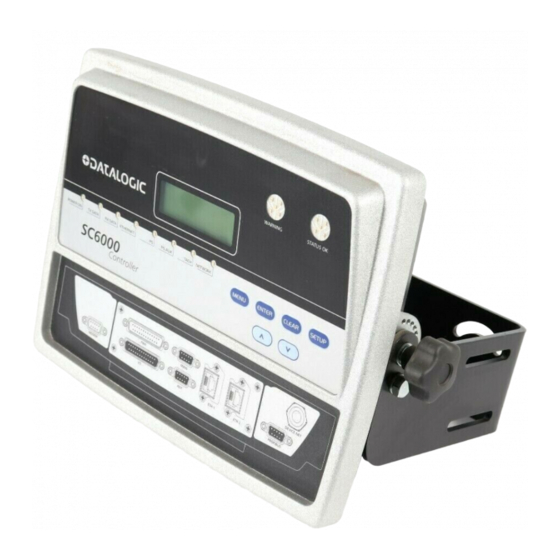

Datalogic SC6000 Installation Manual
Reds redundancy system
Hide thumbs
Also See for SC6000:
- Reference manual (76 pages) ,
- Quick reference manual (20 pages) ,
- Reference manual (60 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Datalogic SC6000
Summary of Contents for Datalogic SC6000
- Page 1 REDS Redundancy System INSTALLATION MANUAL...
- Page 2 ALL RIGHTS RESERVED Datalogic reserves the right to make modifications or improvements without prior notification. Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.
-
Page 3: Table Of Contents
1.3.2 Lonworks Network......................4 1.3.3 Presence Sensor and Encoder ..................5 1.3.4 Redundancy Cable....................... 5 INSTALLING A REDUNDANT SYSTEM..............6 Redundant SC6000 Reading Station Layout ............... 6 Required Parts ......................7 Redundant System Installation..................7 Notes ..........................8 Presence Sensors and Encoders................. 9 2.5.1 Presence Sensors mounting .................. -
Page 4: Introduction
1 INTRODUCTION 1.1 OVERVIEW The REDS function replicates the SC6000 controller, the presence sensor and the encoder devices. The scanner network is not replicated as it already implements a form of redundancy. 1.2 BASIC CONCEPTS REDS is based on the following: •... -
Page 5: Presence Sensor And Encoder
1.3.3 Presence Sensor and Encoder Each controller has its own presence sensor and encoder. The scanners use the active controller’s encoder signal. No presence sensor signal is used by the scanners (only PackTrack mode is supported). 1.3.4 Redundancy Cable A dedicated cable (Lonworks + Serial) is used both to interconnect the two halves of the Lonworks network and exchange redundancy data. -
Page 6: Installing A Redundant System
2 INSTALLING A REDUNDANT SYSTEM 2.1 REDUNDANT SC6000 READING STATION LAYOUT to Host ETHERNET SC6000 VAC INPUT CAB-SC6103 Power/Net CAB-SC6013 Working CAB-SC6003 Controller Extended I/O LONWORKS ENCODER CAB-810x PS Aux BTK8100 CAB-810x CAB-810X CAB-810x DS8100A DS8100A DX8200A DX8200A Redundancy CAB-PWO 03... -
Page 7: Required Parts
Optical Encoder (Cab 10 meters + Spring) 93ACC1770 2.3 REDUNDANT SYSTEM INSTALLATION 1. Install the two SC6000/PWO groups, each with its own Encoder and PS, using the cables and accessories listed in the parts table (standard hardware configuration). See the relative product Reference Manual. -
Page 8: Notes
Configure the Redundancy Parameters on the SC6000 as described in paragraph 2.7.1 Master Working Controller REDS configuration of this document. Configure the SC6000 for Code Selection, Data Formatting and all the necessary parameters. Send the configuration to the Working Controller with Options + Environmental Parameters as follow: Genius... -
Page 9: Presence Sensors And Encoders
This is the easiest and preferred way because the PS Line parameters and the Pack/Track origin XYZ=0 are equal for both SC6000. In this case it is not possible to detect lower packs with both photocells because they are at different height, one over the other. -
Page 10: Ps Line
2.5.4 PS Line 2.5.5 Encoders mounting Both encoders must give to the controllers the same information at the same time, so some precautions must be taken: The Encoders must be mounted on the same belt. The Encoders switch setting and wheels dimension must be the same. Make sure that both Encoders wheels have the right touching pressure on the belt in order to avoid detaching that produce different speed. -
Page 11: Redundancy Scanner Connections
2.6 REDUNDANCY SCANNER CONNECTIONS Reliability and robustness of the system can be improved by connecting scanners together in a particular way. In case of failure for the redundancy cable, which connects the two PWOs together, the active device only sees the scanners physically attached to the relative PWO. In this case, the best result will be achieved if the scanners in question read as much as possible over the entire reading area. -
Page 12: L-Label Station
2.6.2 L-Label station Working Protecting Working Protecting 110-220 Vac 110-220 Vac CAB-SC6003 CAB-SC6003 CAB-PWO 03 CAB-SC6013 CAB-SC6013 Host Host Encoder 1 Encoder 2 Presence sensor 1 Presence sensor 2 CAB-810x CAB-810x CAB-810x CAB-810x CAB-810x BTK-8100 CAB-810x CAB-810x CAB-810x BTK-8100... -
Page 13: Reds Parameters Configuration
2.7 REDS PARAMETERS CONFIGURATION 2.7.1 Master Working Controller REDS configuration After the Net and Scanner setting, complete the Working configuration as follow: 1. Redundancy Parameters Reds Functionality = checked. 2. Redundancy Parameters Topology Redundancy = Master Working. 3. Data Communication settings Built-in Ethernet Line Parameters IP_address... -
Page 14: Master Protecting Controller Reds Configuration
11. Digital I/O Setting Digital Output Lines Setting Output 6 Use = Redundancy. Only one Controller (the Working or the Protecting) will have the OUT-6 On. This output is used to inform the Host about which is the Active Controller: OUT-6 On = Controller is Active OUT-6 Off = Controller is in Stand By NOTE... -
Page 15: Reds Redundancy Systems
3 REDS REDUNDANCY SYSTEMS 3.1 DIAGNOSTIC PROCEDURES The messages exchanged by the controllers over the redundancy cable are of two different types: 1. Notification of the redundancy role 2. Diagnostic status (presence sensor and encoder status) Notifications are used both at initialization time and runtime (cyclic notifications). Diagnostic status exchange (cyclic) conveys diagnostic data and is used only by the Standby controller to validate the status of the active controller. -
Page 16: Configuration
If compared with a stand-alone station, no additional settings are needed on the slave scanners when the REDS function is used. All the parameters related to REDS function have to be set on the active SC6000 as described in the following. A simple procedure (see par. 3.2.3 Alignment of the Configuration on the Protecting Controller) is needed to align the reserve SC6000. -
Page 17: Standby-Active Switch Over
3.3 STANDBY-ACTIVE SWITCH OVER The switch over is the situation that leads to a swapping of the role that the controllers play in the redundant system. The Standby controller is responsible for the decision to switch over as a final result of the evaluation of the local and remote diagnostics or of parcel error count conditions. -
Page 18: Validation Of The Parcel Error Count Condition
On the Standby controller, the comparison of the local/remote data is based on a table that summarizes the configuration of the validating rules that contains the following parameters both for the encoders and for the presence sensors: • Validation procedure enabling/disabling flag. •... -
Page 19: Host Interface
Various alarms can be sent by REDS to the host computer through the standard communication ports, based on the standard SC6000 diagnostics. 3.6 POWER SUPPLY Two separate paralleled power supplies are present to supply power both to the controllers and the scanners. -
Page 20: Dual Ethernet
3.7 DUAL ETHERNET Each controller (Dual Ethernet models) is able to interface to the host computer through two different Ethernet networks. The dual Ethernet is intended to allow the physical replication of the connection to the host computer, however dual Ethernet is not managed by REDS. 3.8 GENIUS CONFIGURATION PARAMETERS Parameter Values (default) - Page 21 Mode 0 / Mode 1 Leve set as Default (Mode 0) Mode Data Communication Setting \Built-in Ethernet\LineParameters IP-address Active * IP address Active SC6000 IP-address Standby * IP address Standby SC6000 Only Dual Ethernet Models Data Communication Setting \Additional Ethernet\LineParameters...
-
Page 22: Diagnostic Error Messages
Error Number [136] Redundancy Role Exchange Warning: this warning is generated on the Stand- by SC6000 to signal that the exchange of the Redundancy Role is in progress. [137] Redundancy Serial Communication Failure: the communication through the redundancy serial interface (PWO to PWO) has failed.
