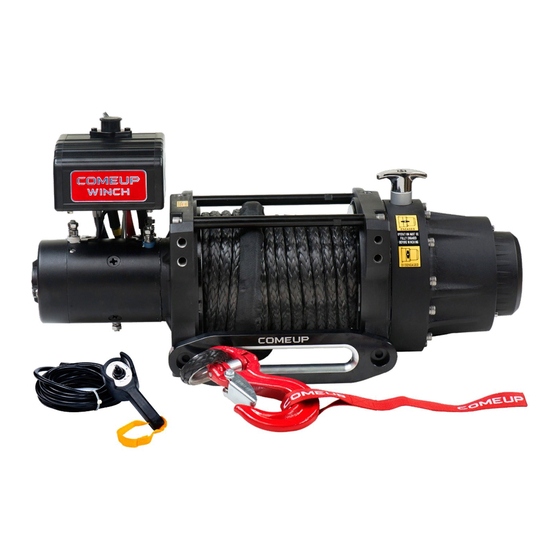

Comeup Winch Seal Gen2 16.5s Quick Start Manual

Introduction

 Feature
Line pull: 7,484 kg / 16,500 lb synthetic rope first layer
Wire rope: 12.7 mm × 25 m (1/2"×82') synthetic rope
Brake: Patented cone brake holds full load
Clutch: Turn the T-handle for rapid wire rope payout
Control: Handheld pendant switch powers the winch
 Unpacking
．Winch assembly................................................................... 1 pc
． Potted control box.................................................................... 1 pc
．Remote control.................................................................... 1 pc
．Synthetic rope with sling hook................................................. 1 pc
．Hawse fairlead..................................................................... 1 pc
．1.8 m (6') 2 gauge battery lead............................................... 1 pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Winch and hawse fairlead mountings
． It is very important that the winch will be
mounted on a flat and hard surface of
mounting channel in order to make sure the
motor, drum and gearbox housing are
aligned correctly.
． Hawse fairlead does not mount to the winch
directly.
Self-Recovery Winch
Seal Gen2 16.5s
Model:
PN: 295635 12V 295631 12V
295646 24V 295642 24V
． The synthetic rope shall be wound in an under-wound orientation only.
． Eight (8) M12 x 1.75 pitch 12.9 grade
high tensile steel bolts must be used in order to sustain the loads imposed
on the winch mounting.
•Two (2) M10 x 1.50 pitch stainless steel bolts must be used for fastening the
hawse fairlead into the mounting channel.
 Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor
must not exceed 10% of the nominal voltage of 12V or 24V DC.
 Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 14 N-m/124 lb-in.
w/137 N-m torque setting (maximum)
