Rimage Allegro 100 Setup And Installation Manual page 2

5

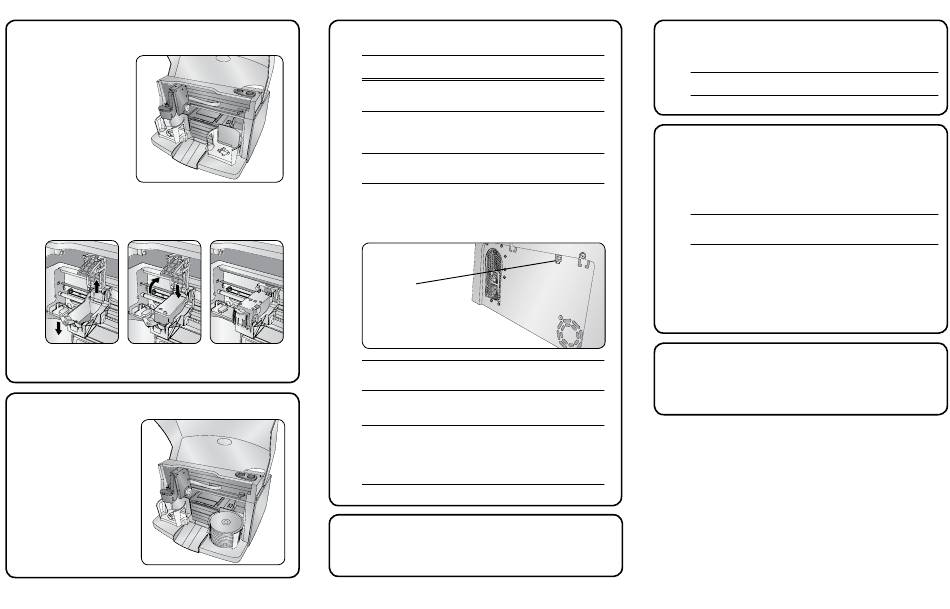

Install the all-in-one ink cartridge
a. Lift the printer cover.
b. The ink cartridge cradle
automatically moves to
loading position.
c. When the ink cartridge cradle is stationary, lift the cartridge latch
(see below).
d. Slide the all-in-one ink cartridge into the cradle as shown.
e. Close the cartridge latch.
f. Close the printer cover. The Allegro 100 system initializes.
6
Load discs in the system
The input bins hold 50 discs
each. Use only recordable
discs that are coated with an
inkjet printable surface. Place
the discs in the right input
bin so that the recording side
of the discs is facing down;
the print surface will be
facing up.
If desired, also place discs
in the left input/output bin,
attach the external output
bin and holder, and specify
bin configuration in the
software.
4001942_B
7
Install the software and plug in the USB cable
Important!
Do not plug in the USB cable until instructed to do so.
Note:
You must have administrative privileges to install the software on
the external PC.
a. Place the Rimage Software Suite disc into the disc drive of the
connected external PC. The Choose Setup Language dialog box opens.
(The default is English).
Tip:
If the software installation does not start automatically, browse to the
DistSetup.exe file on the Rimage Software Suite disc.
b. Follow the on-screen prompts to continue the software installation.
c. When prompted, connect the USB cable.
i. Connect the USB cable to the back of the Allegro 100.
ii. Connect the other end of the USB cable to the external PC.
USB 3.0 Port
USB 3.0
Port
Note:
For optimum performance, connect the Allegro 100 USB cable to a
USB port on your motherboard rather than to a USB card port.
d. Continue to follow the on-screen prompts to complete installation. Once
installation is complete, you may be prompted to reboot your PC.
Note:
After the software starts, the Allegro 100 system begins the
initialization process. Initialization may take up to 5 minutes. During the
initialization process, the lift arm moves to the recorder and the printer.
When the lift arm assembly stops moving, initialization is complete and
your system is ready to process jobs.
8
Answer setup prompts
Your PC may prompt you for alignment and calibration. Follow the prompts
on the screen.
Copyright © 2017 Rimage
9
Test and verify
Use QuickDisc™ to run a 3-disc test job to verify that the Allegro 100 system is
operating correctly.
Note:
You can now use Rimage WebRSM™ to adjust the system settings.
10
Learn more
• These documents are available on the Rimage Allegro User Guide disc
that shipped with your Allegro 100 system:
Rimage Allegro 100 User Guide
ƒ
Rimage Product Warranty
ƒ
Access these documents by placing the User Guide disc in the disc drive
of a PC.
Note:
If the User Guide menu does not display automatically, browse to the
Home.htm file on the User Guide disc.
• Please refer to www.rimage.com for the most current versions of all
documents.
• For information about operating and maintaining the Allegro 100
system, refer to the Rimage Allegro 100 User Guide.
• For additional support and product information, go to
www.rimage.com/support.
11
How to power off your Allegro 100 system
We recommend always leaving the main power switch on the back of the
system in the "on" position to ensure that the Allegro 100 system is ready
when needed. To power the Allegro 100 off, press the power button once.
