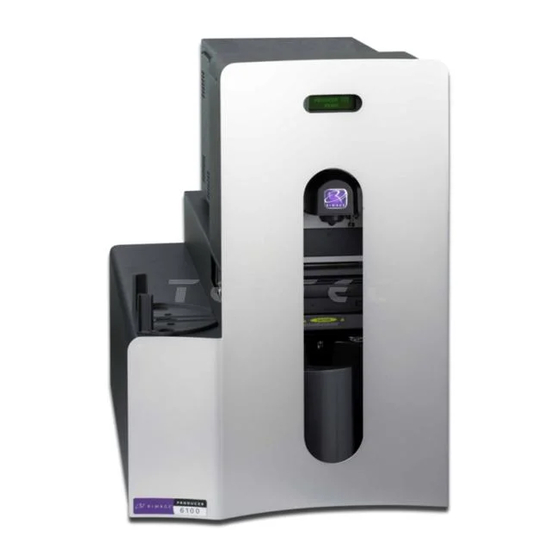

Rimage Producer 7100N Hardware Manual

Rimage Producer Family™

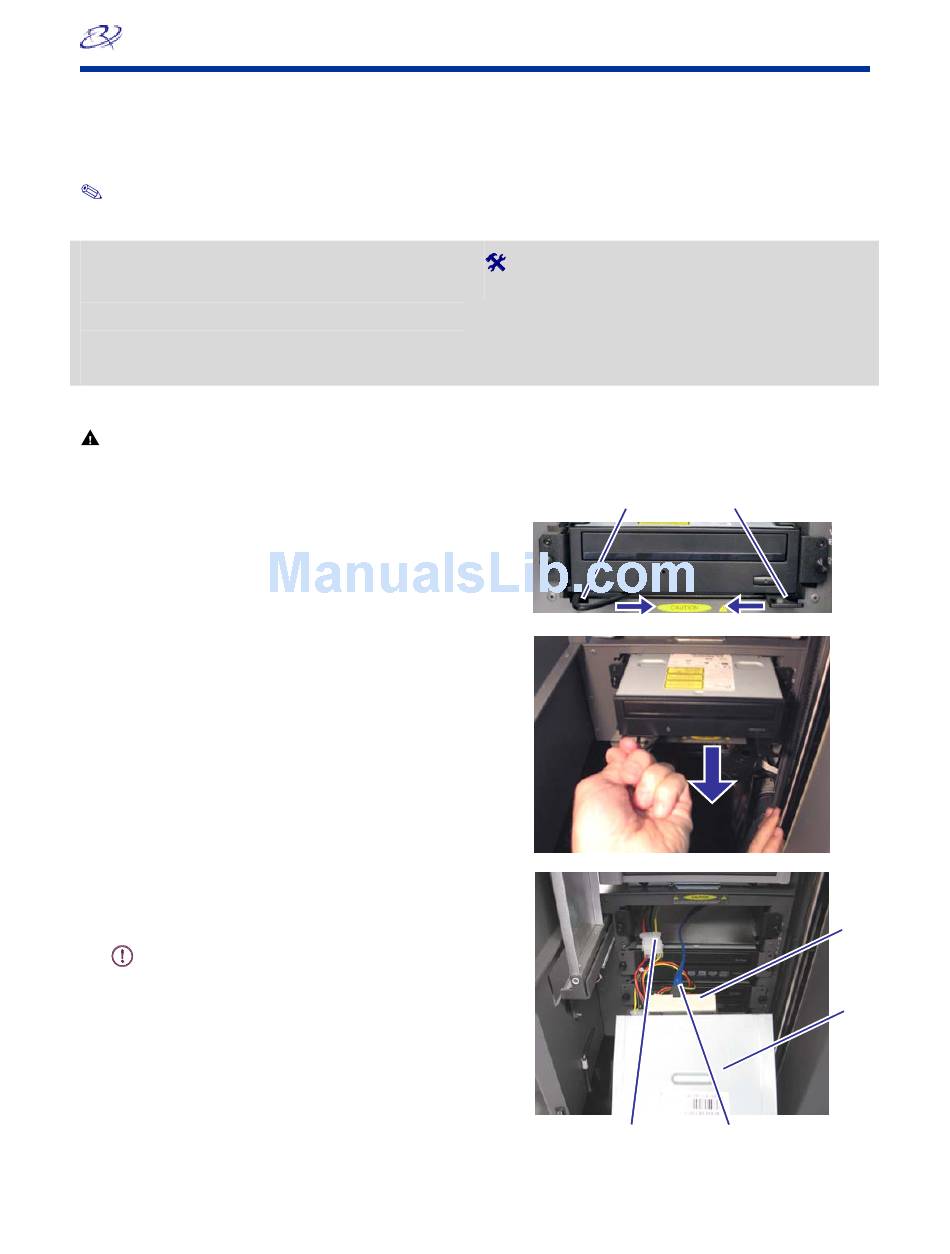

Replace a Quick-Release Recorder on a Producer IIIN
Use this procedure to replace a quick-release recorder in a Producer 7100N™ and Producer 8100N™.
Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are
used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.
Notes:
•
Your system may not look exactly like the system pictured.
•
The term "PIIIN" is used throughout this document to refer to the Producer 7100N or Producer 8100N.
Before you begin
1. Stop or pause all jobs.
2. Power off the embedded control center.
3. Power off the PIIIN.
4. Disconnect the power cord from the power outlet.
Remove the Recorder
Caution! Some cables in this system are latched. Equipment damage may occur if cables are not disconnected
appropriately.
1. Open the front door.
2. Access the cables on the recorder to be replaced.
a. Gently squeeze together the quick-release tabs
while the pulling the recorder out. The recorder
detaches from the system.
b. Using the tab on the left, pull the recorder out until
you can access the cables.
3. Disconnect the cables (Qty. 2) from the recorder.
•
Power cable
•
SATA cable
Important! Disconnect the cables at the positions
indicated. If there is no bridge board, disconnect
the SATA cable directly from the back of the
recorder. Do not allow the cables to fall back into
the system.
2000770_B
Required tools:
•
None required
© 2008, Rimage Corporation
Quick-Release Tabs
SATA Cable
Power Cable
Operator
Bridge
Board
Recorder
1
