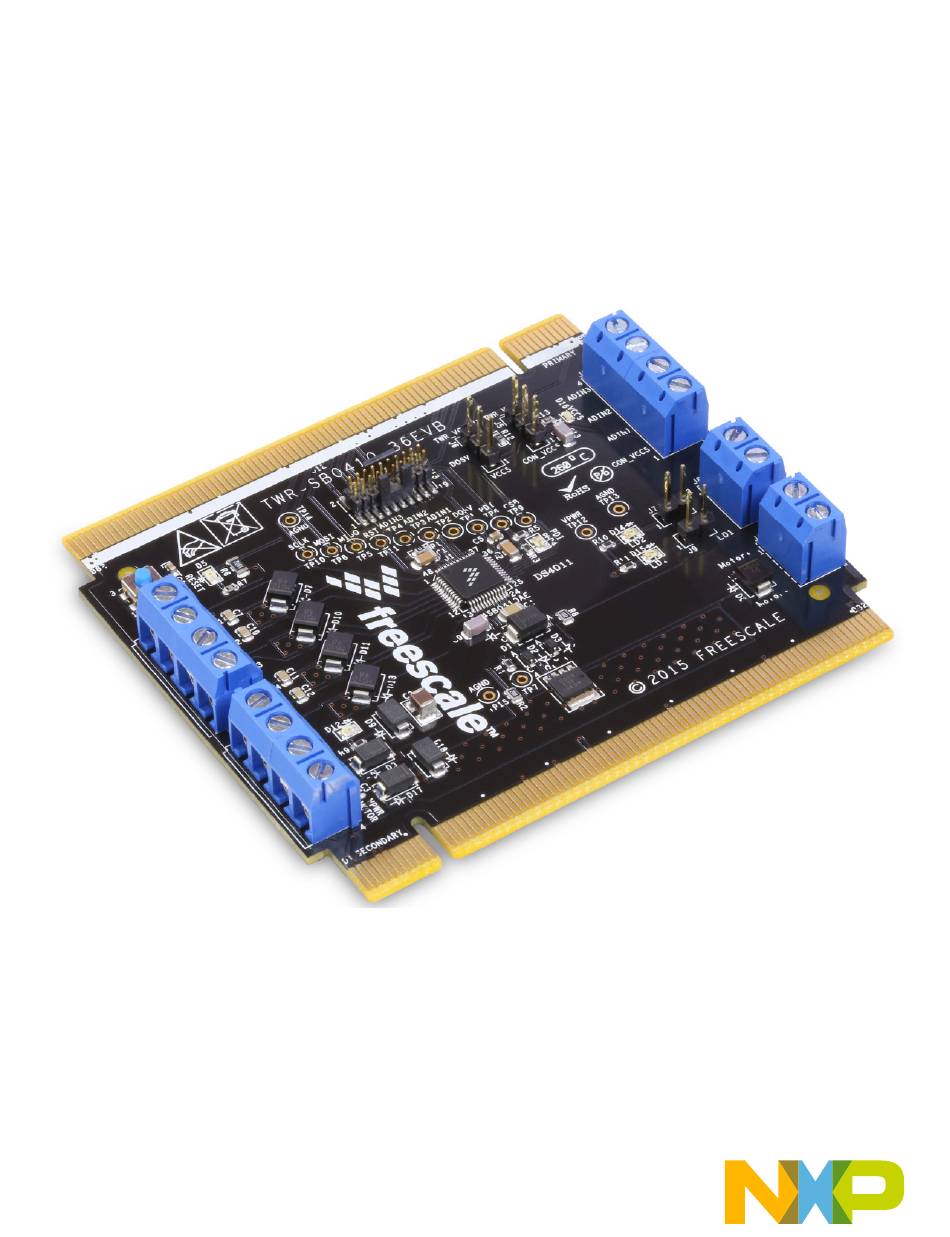

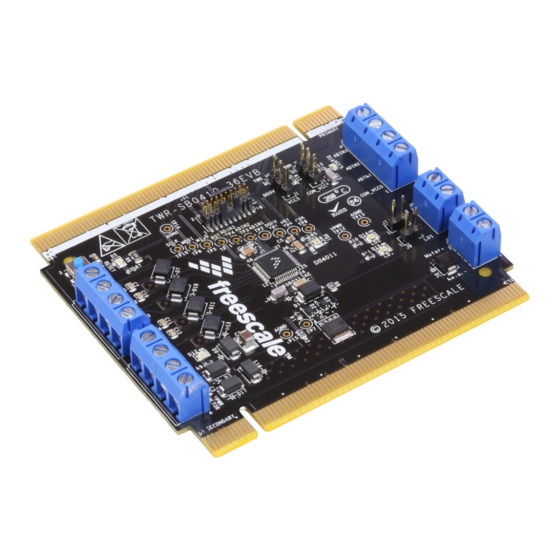

- Page 1 NXP Semiconductors Document Number: KTTWRSB0410-36EVBUG User’s Guide Rev. 1.0, 7/2016 TWR-SB0410-36EVB tower system platform Figure 1. TWR-SB0410-36EVB © 2016 NXP B.V.
-
Page 2: Table Of Contents
10 Revision history ..................24 TWR-SB0410-36EVB tower system platform, Rev. -
Page 3: Important Notice
NXP was negligent regarding the design or manufacture of the part. NXP™ and the NXP logo are trademarks of NXP Semiconductors. All other product or service names are the property of their respective owners. © 2016 NXP B.V. -
Page 4: Getting Started
Getting started Getting started Kit contents/packing list The TWR-SB0410-36EVB contents include: • TWR-SB0410-36EVB tower board • Plug-in connectors • Warranty card Jump start NXP’s analog product development boards help to easily evaluate NXP products. These tools support analog mixed signal and power solutions including monolithic ICs using proven high-volume SMARTMOS mixed signal technology, and system-in-package devices utilizing power, SMARTMOS and MCU dies. -
Page 5: Understanding The Tower System Modular Development Board Platform
Featuring more than fifty development boards or modules, the Tower System provides designers with building blocks for entry-level to advanced MCU development. Figure 2 shows a Tower System platform with the TWR-SB0410-36EVB configured with another Tower System module, the TWR-KL25Z48M board. TWR-SB0800-36EVB or TWR-SB0410-36EVB... - Page 6 6.0 V to 36 V MCU Tower Board Selection (Jumpers)) MC34SB0410 Quad Valves Controller Secondary Elevator GPIO & SPI (single, ADC input daisy chain) (x3) Tower System Interface EXTERNAL USE Figure 3. Block diagram TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
-
Page 7: Getting To Know The Hardware
Board overview The TWR-SB0410-36EVB is a tower peripheral module that exercises valve control functions on SoC products based on the Tower System. The Tower System acts as a debug and communication port for the PC being used to debug/download programs from the Kinetis Design Studio/CodeWarrior system. - Page 8 Select the 5.0 V - 3.3 V Tower supply or 5.0 V external supply 5.0 V external supply Jumpers Selection for Daisy Chain / input PWM Jumpers selection for Daisy Chain / input PWM motor control motor control Primary Connector Plug into primary elevator board TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
- Page 9 Getting to know the hardware 4.4.1 LED display The following LEDs are provided as visual output devices for the TWR-SB0410-36EVB: Figure 5. LED locations Table 3. LEDs LED ID Description Indicates when MC34SB0410 is in Reset or Safe / Normal Mode...
- Page 10 TP7 & TP15 Power jumper connections that can be used for Motor signal analysis Indicates MOSI signal Indicates SPI / Chip Select signal TP10 Indicates SPI clock signal TP11 Indicates Reset signal TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
- Page 11 VPWR_MOTOR DC motor power supply input of MC34SB0410 Motor - DC motor negative output of MC34SB0410 Motor + DC motor positive output of MC34SB0410 Low-side driver 2 (general purpose) output of MC34SB0410 TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
- Page 12 Selects the digital voltage level 5.0 V or 3.3 V 3.3 V Digital Voltage Level LED connected Connect / disconnect the LED as a load for the low-side driver 2 (general purpose) Not connected LED disconnected TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
- Page 13 Connect / disconnect the LED as a load for the low-side driver 1 (general purpose) Not connected LED disconnected Selects compatibility settings when using additional tower Multiple Section 5.2 "Tower board settings" boards TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
-
Page 14: Setting Up The Hardware
TWR-KL25Z48M TWR-KV31F120M TWR-KV10Z32 TWR-K64F120M TWR-K20 TWR-K22F120 TWR-K70 RSTB GPIO1 GPIO1 GPIO1 GPIO1 GPIO8 GPIO1 GPIO2 GPIO2 GPIO2 GPIO2 GPIO2 GPIO9 GPIO2 GPIO3 PWM4 PWM4 PWM4 PWM4 PWM4 PWM0 PWM4 Figure 9. Configuration example TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors... - Page 15 Tower board settings A jumper block (J13) on the TWR-SB0410-36EVB provides a means of configuring the board for use with additional MCUs. The J13 jumper settings define the routing of all SPI signals, the reset signal from the MCU, and the PWM motor control signal. In addition, jumper J6 allows you to select between either 3.3 V or 5.0 V depending on the requirement of the MCU being used.
-
Page 16: Schematics
Schematics Schematics Figure 11. Schematic Part 1 TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors... - Page 17 Schematics Figure 12. Schematic part 2 TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
- Page 18 Schematics Figure 13. Schematic part 3 TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
-
Page 19: Board Layout
Board layout Board layout Silkscreen TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors... -
Page 20: Board Bill Of Materials
CRCW06030000Z0EA Switches, Connectors, Jumpers and Test Points HDR 2x8 2.54 MM FEMALE (STACKABLE) - J1, J8 CON_2_TB SSQ-108-23-G-D SAMTEC HDR 2x10 2.54 MM FEMALE (STACKABLE) - J2, J3, J4 CON_4_TB SSQ-110-23-G-D SAMTEC TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors... - Page 21 NXP does not assume liability, endorse, or warrant components from external manufacturers are referenced in circuit drawings or tables. While NXP offers component recommendations in this configuration, it is the customer’s responsibility to validate their application. Do Not Populate TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
-
Page 22: References
Tower System Modular Development Tower System http://www.nxp.com/tower Board Platform TWR-KL25Z48M Tool Summary Page http://www.nxp.com/TWR-KL25Z48M K20D72M Tool Summary Page http://www.nxp.com/K20D72M KV31F120M Tool Summary Page http://www.nxp.com/KV31F120M Kinetis Design Studio Software http://www.nxp.com/kinetis http://www.nxp.com/codewarrior CodeWarrior Software TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors... - Page 23 References Support Visit www.nxp.com/support for a list of phone numbers within your region. Warranty Visit www.nxp.com/warranty to submit a request for tool warranty. TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors...
-
Page 24: Revision History
Revision history Revision history Revision Date Description of Changes 1/2016 • Initial release • Updated to NXP document form and style 7/2016 TWR-SB0410-36EVB tower system platform, Rev. 1.0 NXP Semiconductors... - Page 25 How to Reach Us: Information in this document is provided solely to enable system and software implementers to use NXP products. There are no expressed or implied copyright licenses granted hereunder to design or fabricate any integrated circuits based on Home Page: the information in this document.
- Page 26 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: TWR-SB0410-36EVB...
