Specifications

Click on Ok, then Next. The software will install. If you see a prompt, click Continue
Anyway. Once installation is complete, click Finish.
5. The PC will prompt you to install serial port driver software. Repeat the procedure in
Step 4. You may need to restart your PC once the driver software is installed.

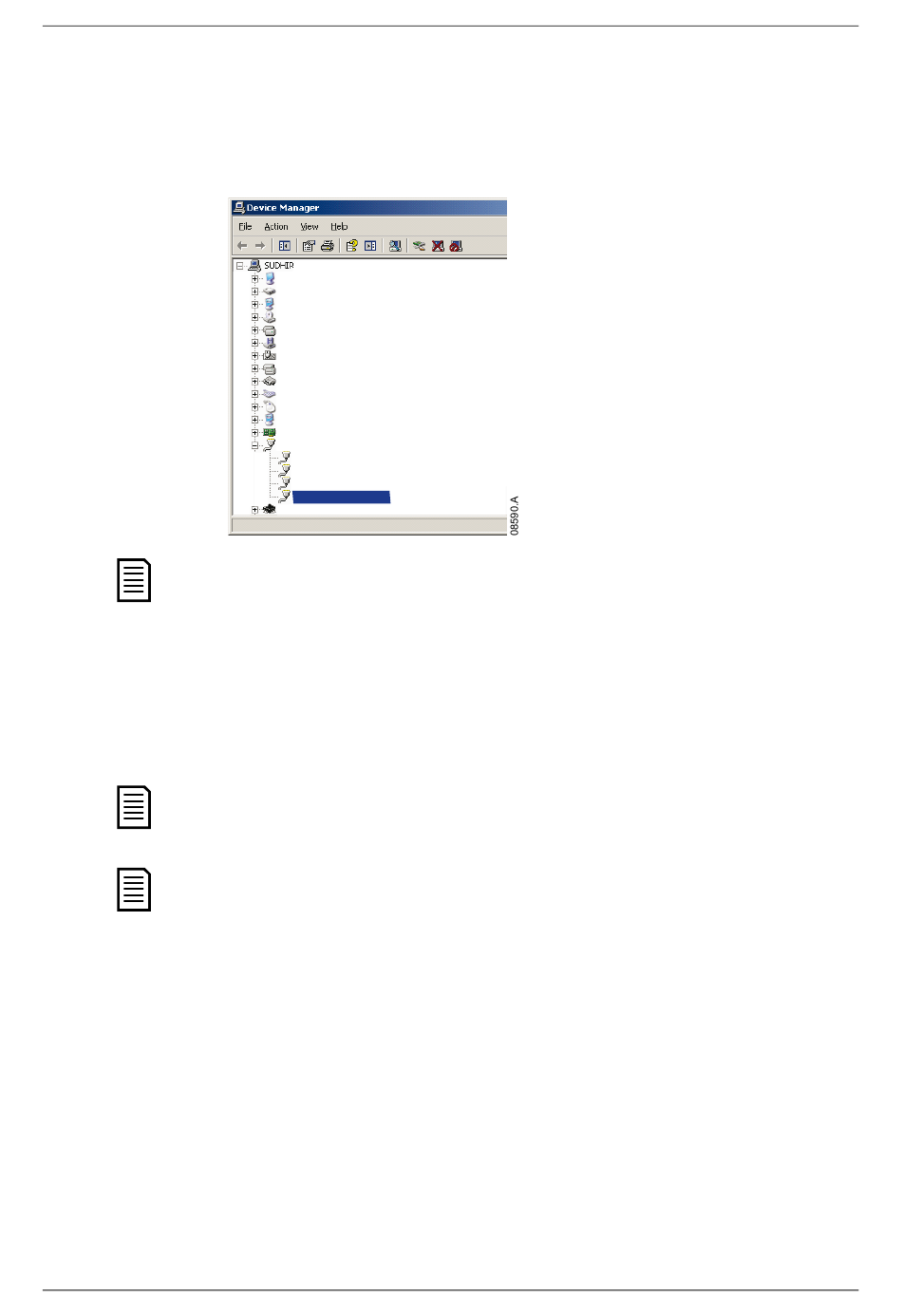

6. Identify the USB Serial Port assignment by checking Control panel > System >
Hardware > Device Manager > Ports (COM & LPT).
NOTE
If the USB port is not shown, disconnect then reconnect the cable. If the
problem persists, restart your PC.
7. Open WinMaster and change the settings as follows:
Protocol:
Baud rate:
Address:
Port:
8. Apply control voltage to the soft starter and bring the Master on-line.
NOTE
The starter may trip on Starter Comms while the Master is off-line. Reset the
soft starter and place the Master on-line.
NOTE
The drivers will configure the USB port that the module is connected to. You must
use the same physical USB port every time you connect the module to the PC.
7 Specifications
• Enclosure
Dimensions
Weight .................................................................................................................
Protection .............................................................................................................. IP20
Mounting
•
Spring-action plastic mounting clips (x 2)
• Connections
Soft starter
Network .............................................................................................................. USB-B
Maximum cable length
4/5
Computer
Disk drives
Display adapters
DVD/CD-ROM drives
Floppy disk controllers
Floppy disk drives
Human Interface Devices
IDE ATA/ATAPI controllers
IEEE 1394 Bus host controllers
Keyboards
Mice and other pointing devices
Monitors
Network adapters
Ports (COM & LPT)
Communications Port (COM1)
ECP Printer Port (LPT1)
Intel(R) Active Management Technology - SOL (CO
USB Serial Port (COM5)
Processors
AP ASCII or AP Binary
9600
20
Use the serial port number identified above
.....................................................
....................................................................................
.............................................................
40 mm (W) x 166 mm (H) x 90 mm (D)
6-way pin assembly
3 metres (not supplied)
USB Module
250 g
User Manual
