Eaton Cutler Hammer C30CN Series Instruction Sheet

C30CN Lighting Contactor Series
! WARNING !
HAZARDOUS VOLTAGE
Disconnect all power before working on equipment.
Electrical shock will cause severe injury or death.
TENSION DANGEREUSE
Coupez l'alimentation avant travailler sur le produit.
Electrocution peut causer de sévères blessures ou la mort.
Description
The Cutler Hammer C30CN Series is a magnetically operated
lighting contactor, and is available in both open and enclosed
forms. These contactors are field configurable for up to twelve
poles, with a maximum of eight normally closed "NC" poles.
NO Aux.
Contact

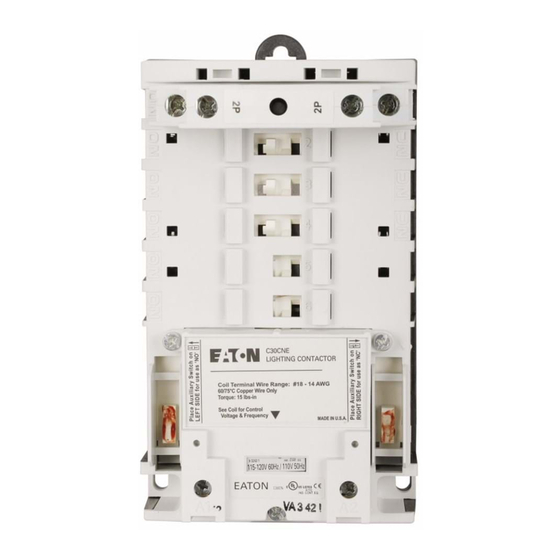

Figure 1: Mechanically Held Contactor
1 MAIN BASE

1.1 Description

The base of the lighting contactor (see Figure 1) has provisions
to accept power poles at positions "1" to "6". Provisions are
also provided for up to 2 "NO" and 2 "NC" auxiliary contacts.

1.2 Installation

1. Remove all packing material from the base and all the kits.
2. Contactor must be mounted in the vertical position on a
sturdy support.
3. Additional over-current protection may be required. Refer
to the National Electrical Code or local electrical code as
required.
4. Refer to Section 5.3 and Table D on page 3 for the wire
size and the required torque for the coil terminals.
DEH-41043
Instruction Sheet
Revision A
2 POWER POLES: C320PRP1 & C320PRP2

2.1 Description

Power poles are available in both single pole (C320PRP1) and
double pole (C320PRP2) versions. A maximum of twelve
poles may be installed on the base. Positions "1" to "4" on the
base can be configured as either normally open "NO" or "NC"
while positions "5" and "6" can be configured as "NO" only.

2.2 Removal and Conversion of Power Poles

1. If installed ensure that all power is disconnected.
2. For multiple possible configurations of the power poles,
refer to Table A below.
Main Base
# of NO Contacts Desired (4)
NC Aux.
3. Remove block by using a screwdriver to pull the clip as
Contact
shown (see Figure 2). Rotate block 180 degrees to convert
from NO to NC or from NC to NO and install per 2.3
below.

2.3 Installation of Power Poles

1. Check moving carrier to assure free movement
2. Install the block by sliding foot into slot; using a
screwdriver pull the clip, and position block onto base.
Release the clip.
3. Check for the lettering on the base. "NO" should be
visible if the power pole is assembled as normally open,
and "NC" should be visible if it is assembled as normally
closed (see Figure 3).
ECR LT#10001
Pub50765
Page 1 of 4
# of NC Contacts Desired (3)
Table A
Standard Catalog # C30CNE43A0
Figure 2
1
