T2HCK7F8: Configuration of Hartmann Controls Boards:
1. Align the Hartmann Controls boards on the backplane to match the boards' mounting holes with corresponding pems.
2. Fasten spacers (provided) to pems that match the hole pattern for Hartmann Control boards (Fig. 3, 3a, pg. 4).
Note: Hartmann Controls boards must be properly grounded.
Please use provided metal spacers for the lower right mounting holes (Fig. 3, pg. 4).
3. Mount Hartmann Controls boards to spacers utilizing provided 5/16" pan head screws (Fig. 3a, pg. 4).
4. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

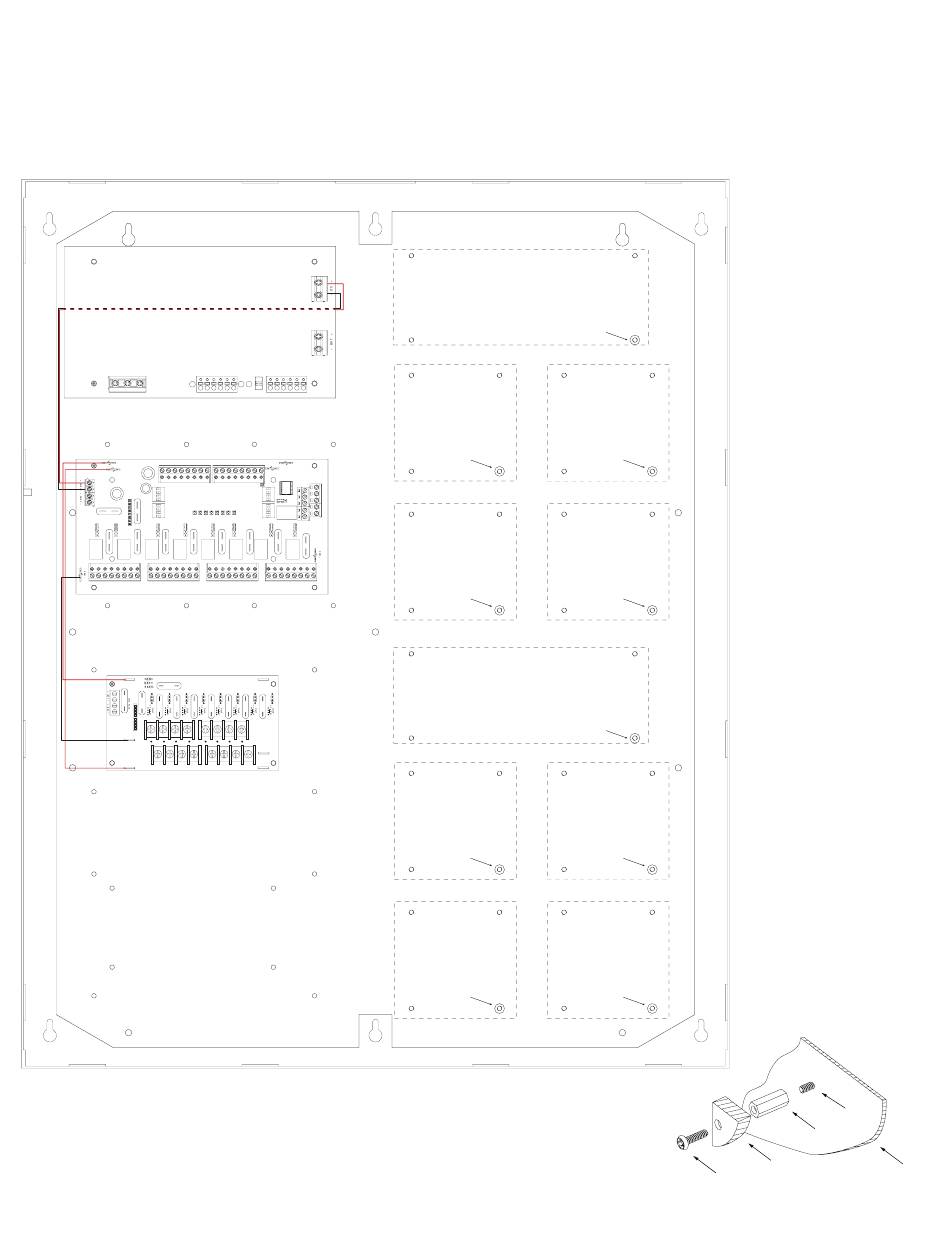

Fig. 3
Altronix - eFlow104NB
L G N
Altronix VR6 mounted under ACMS8
PWR1 +
PWR2 +
Altronix - ACMS8
PWR1 +
OFF IN1 Fuse
Altronix - PDS8
IN1
10
IN2
10
3
3 3 3
P
COM ---
OUT1 OUT2 OUT3 OUT4
N
PWR2 +
1 2 3 4
Common Power Outputs (NEG)
- 4 -
PWR1 +
PWR2 +
PWR1 +
3 3 3 3
OUT5 OUT6 OUT7 OUT8
COM ---
PWR2 +
5 6 7 8
PRS_MASTER
Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer
Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer
Metal Spacer
PRS_MASTER
Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer
Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer
Metal Spacer
Pem
Spacer
Power Supply or
Pan Head
Sub-Assembly
Screw
Fig. 3a
Backplane
THC2 Kits
