Altronix Trove T2HCK5F Installation Manual page 3

T2HCK5F: Configuration of Hartmann Controls Boards:
1. Align the Hartmann Controls boards on the backplane to match the boards' mounting holes with corresponding pems.
2. Fasten spacers (provided) to pems that match the hole pattern for Hartmann Control boards (Fig. 2, 2a, pg. 3).
Note: Hartmann Controls boards must be properly grounded.
Please use provided metal spacers for the lower right mounting holes (Fig. 2, pg. 3).
3. Mount Hartmann Controls boards to spacers utilizing provided 5/16" pan head screws (Fig. 2a, pg. 3).
4. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

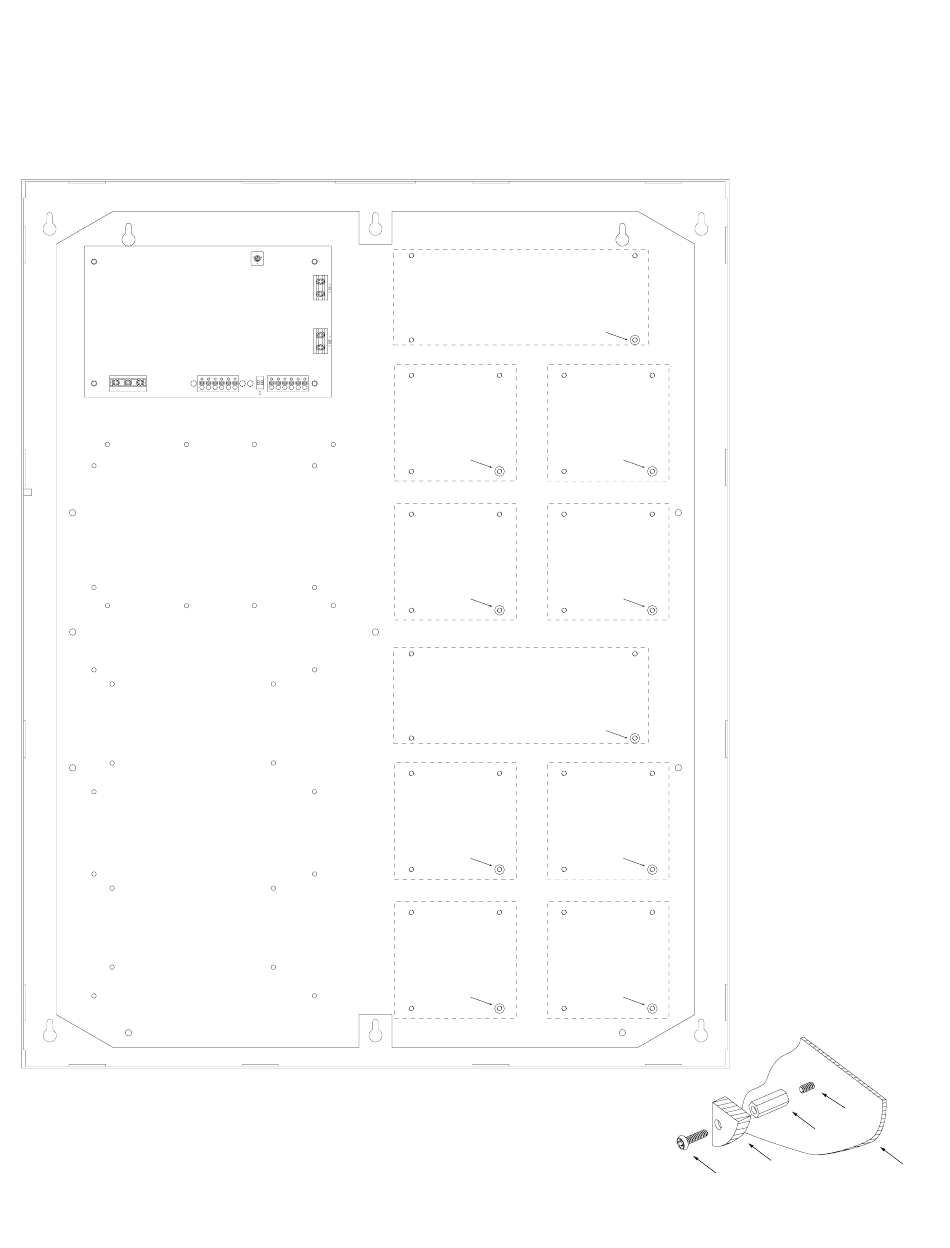

Fig. 2
Altronix - eFlow102NB
AC1
L G N
THC2 Kits
AC DC
1 min enable
NC C NO NC C NO TRIGGER EOL NO GND
2 hr disable + AUX -
SUPERVISED
AC FAIL BAT FAIL RESET
PRS_MASTER
Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer Metal Spacer
PRS_MASTER
Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer Metal Spacer
PRS_TDM or PRS_IO8 PRS_TDM or PRS_IO8
Metal Spacer Metal Spacer
Pem
Spacer
Power Supply or
Pan Head
Sub-Assembly
Screw
Fig. 2a
Backplane
- 3 -
