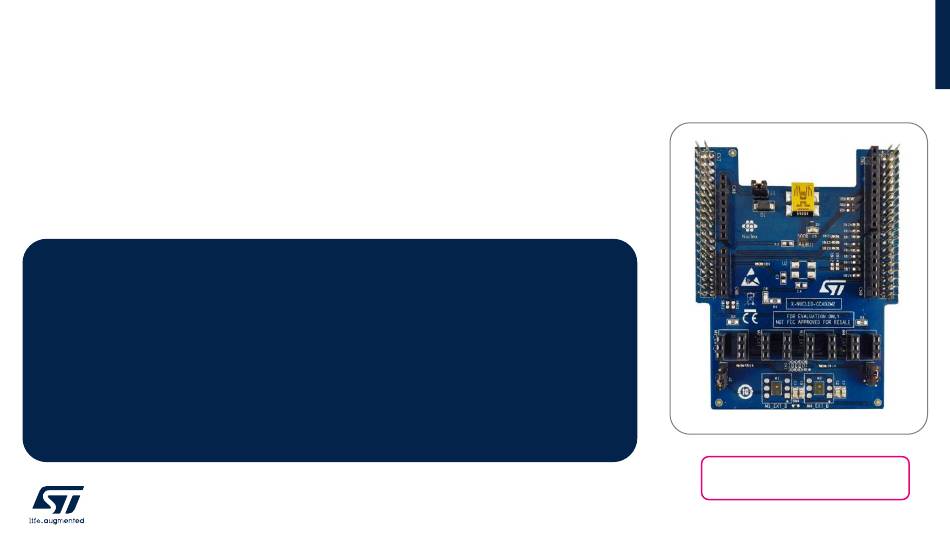

X-NUCLEO-CCA02M2 Hardware Description
The X-NUCLEO-CCA02M2 expansion board has been designed around MP34DT06J digital MEMS microphone. It is
compatible with the ST morpho connector layout and with digital microphone coupon boards such as STEVAL-
MIC001V1, STEVAL-MIC002V1 and STEVAL-MIC003V1.
The X-NUCLEO-CCA02M2 embeds two MP34DT06J microphones and allows synchronized acquisition and
streaming of up to 4 microphones through I²S, SPI, DFSDM or SAI peripherals.
Key Product on board
• 2 on-board MP34DT06J digital MEMS microphones
• 6 slots to plug in digital microphone coupon boards such as STEVAL-MIC001V1, STEVAL-MIC002V1 and STEVAL-
MIC003V1
• Synchronized acquisition and streaming of up to 4 microphones
• Free comprehensive development firmware library and audio capture plus USB streaming sample application
compatible with STM32Cube
• Compatible with STM32 Nucleo boards
• Equipped with ST morpho connector (upwards and downwards)
• Equipped with Arduino UNO R3 connector (upwards) to allow multiple boards
• RoHS and WEEE compliant
MEMS Microphones Expansion Board (CCA02M2)
Hardware Overview
Latest info available at www.st.com
X-NUCLEO-CCA02M2
