Care and Maintenance
Replacing the Indicator
Materials Needed:
·
IT-5100 gage
·
Indicator

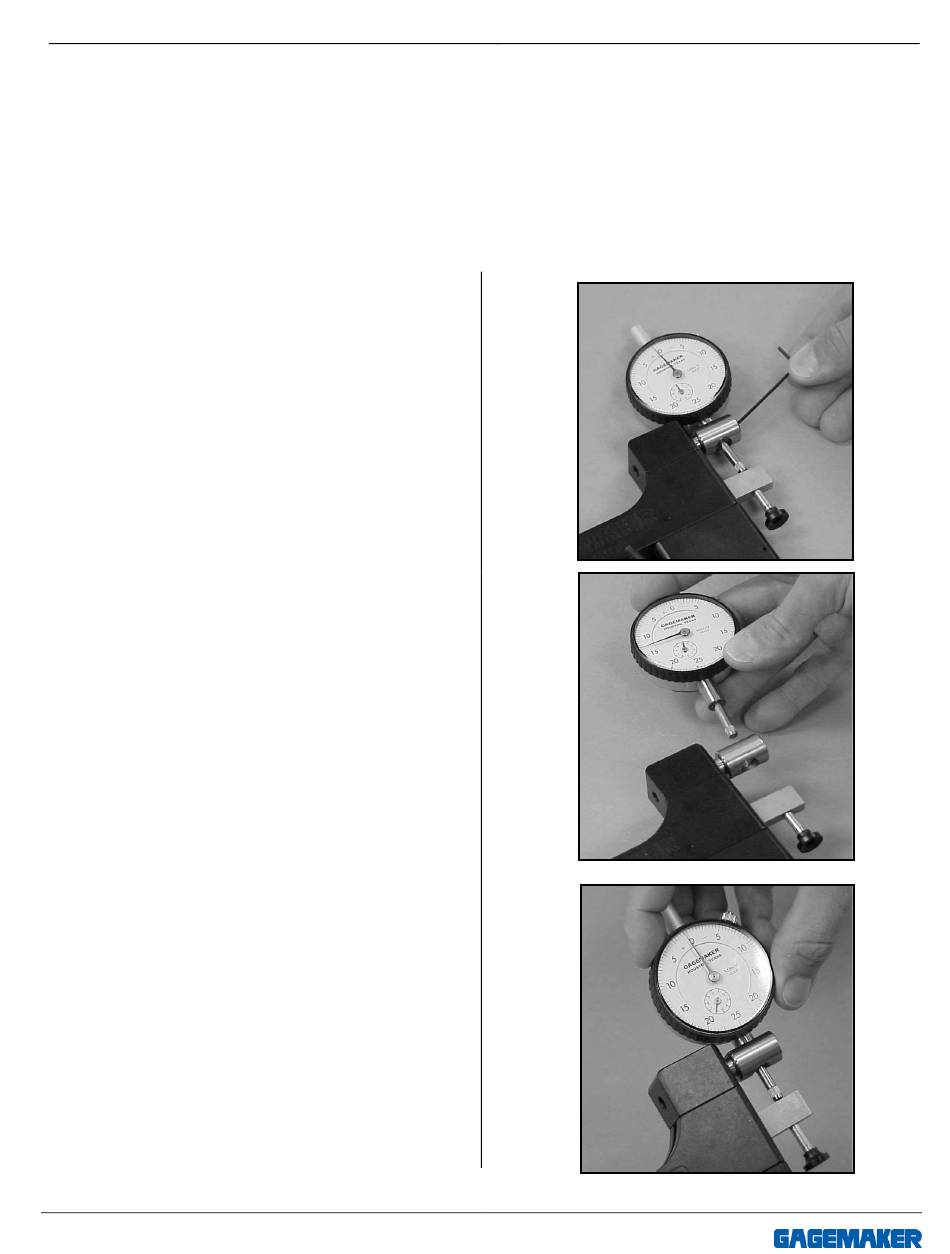

1. Using a 7/64" hex wrench, loosen the set screw
on the upper arm assembly.
2. Remove the indicator from the indicator block.
3. Insert the new indicator into the indicator block
and tighten the set screw.
