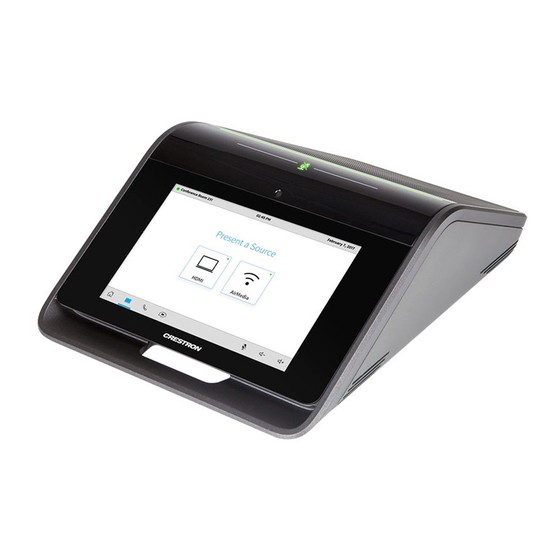

CCS-UC-1
Crestron Mercury®
Tabletop Conference System
Product Manual
Crestron Electronics, Inc.
Firmware v1.4095.00091.001 and later
