Crestron CCS-UC-1-T Quick Start

CCS-UC-1-T

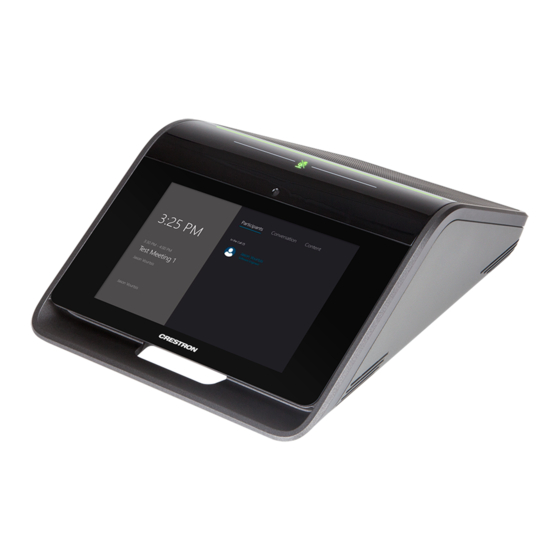

Crestron Mercury® Tabletop UC Audio Conference System for Microsoft Teams™
The CCS-UC-1-T provides a complete audio conference room solution for engineered use with the Microsoft Teams™ intelligent communications
platform.
Check the Box
Item
CCS-UC-1-T
Cable, CAT5e, RJ-45 Male - RJ-45 Male, 12 ft (3.66 m) (P/N 2033988)
Retention Plate, Cable (P/N 2047908)
Tie Wrap (P/N 2047935)

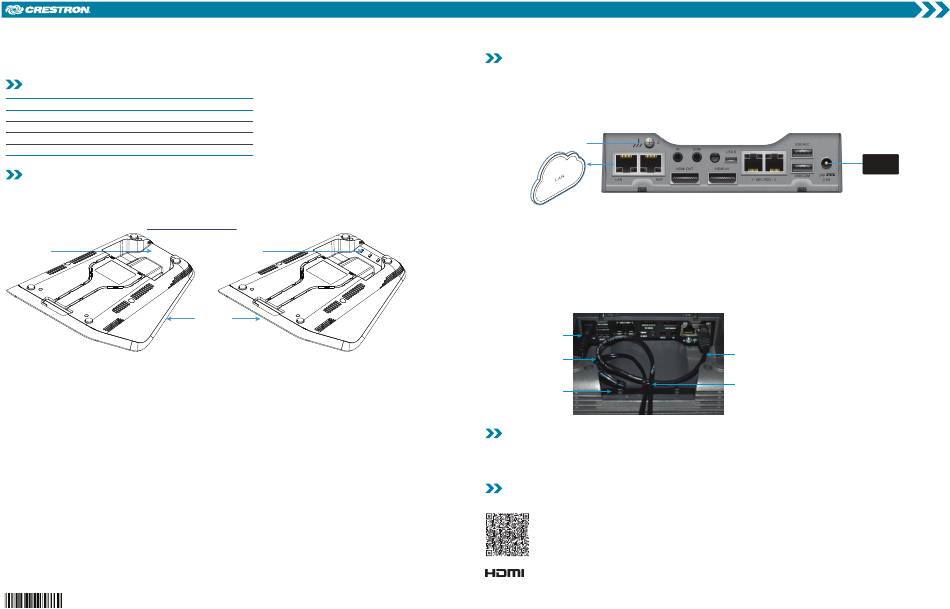

Install the Cable Retention Plate
Remove the adhesive backing from the cable retention plate and install it as shown in the following diagram. The cable retention plate is designed
to fit at the cable exit location at the rear of the chassis and provides three tie-down points for cables connected to the device.
CAUTION: When turning over the device, place the device on a soft surface to avoid damage.
NOTE:
If the CCS-UCA-SMK swivel mount kit is to be used, use the cable retention bracket included with the CCS-UCA-SMK. For details, refer to
the CCS-UCA-SMK DO Guide (Doc. 7882) at www.crestron.com/manuals.
Install cable
retention
plate here
NOTE: Before securing cables, ensure the cable retention plate is firmly attached.
Qty
1
1
1
3
Cable retention
plate installed
CCS-UC-1-T
Connect the Device
Feed Cables Through the Swivel Tube Plate (Installations with CCS-UCA-SMK only)
If the CCS-UCA-SMK swivel mount kit is used in the installation, refer to the CCS-UCA-SMK DO Guide (Doc. 7882) for cabling instructions.
Hardware Hookup
When wiring the device, it is highly recommended to use the cables that ship with the device.
CCS-UC-1-T
Ground
Corporate
network
or PoE+
via included
Ethernet Cable
1. Observe the following when making connections to the device:
• PoE-type networks connected to these ports are for intrabuilding use only and should not be connected to lines that run outside of the
building in which this device is located.
• The device can receive power over PoE+ (IEEE 802.3at) or the PW-2420RU power pack (sold separately). A standard PoE switch cannot
provide sufficient power to the device.
• When powering the CCS-UC-1-T with PoE+ (IEEE 820.3at), PoE+ switches that utilize Link Layer Discovery Protocol (LLDP) must have
LLDP enabled. Please coordinate with the IT Administrator who manages network infrastructure at the customer site to make sure the
PoE+ ports have LLDP enabled. For more information, refer to the CCS-UC-1-T Supplemental Guide (Doc. 8401).
• The PW-2420RU power pack must be connected to the CCS-UC-1-T if the optional CCS-UCA-MIC microphone pods are to be used.
2. Connect the 12 ft CAT5e cable to the LAN port on the device and the local network.
3. Use the provided tie wraps to secure the cables to the cable retention plate, leaving enough cable to create a 2- to 3-inch service loop.
Power cable
Service Loop
Cable Retention Plate
Configure the Device
Use the touch screen of the device and the web interface to configure the device. For details, refer to the CCS-UC-1-T Supplemental Guide (Doc.
8401).
NOTE: A Microsoft Teams account is required for operation.
For Additional Information
Scan or click the QR code for detailed product information.
CCS-UC-1-T
Quick Start
