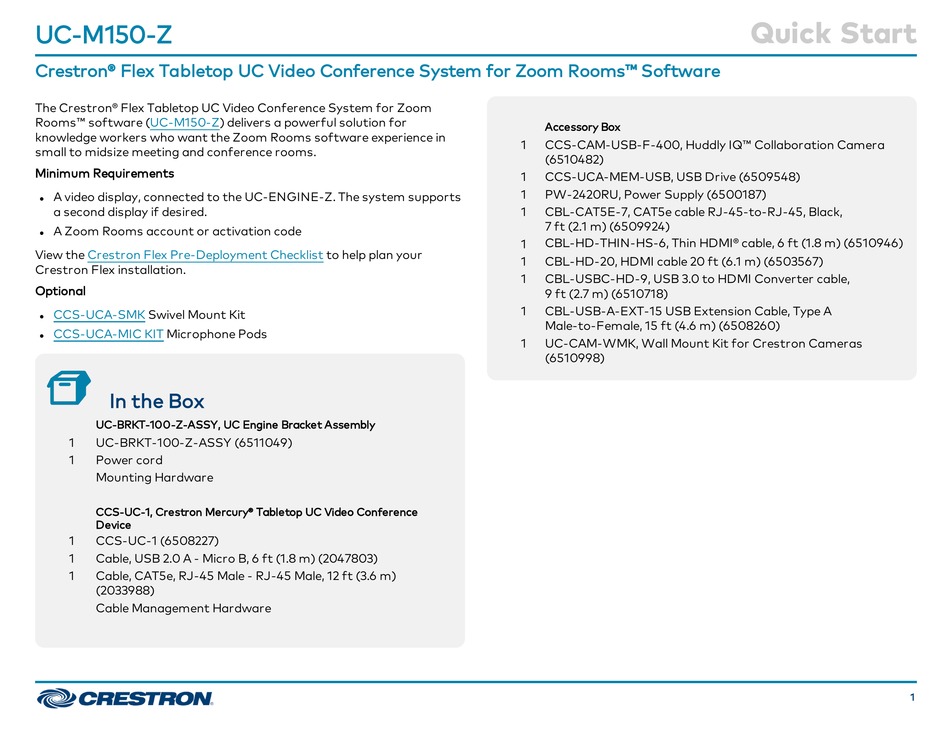

UC-M150-Z
Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software
The Crestron® Flex Tabletop UC Video Conference System for Zoom
Rooms™ software (UC-M150-Z) delivers a powerful solution for
knowledge workers who want the Zoom Rooms software experience in
small to midsize meeting and conference rooms.
Minimum Requirements
A video display, connected to the UC-ENGINE-Z. The system supports
l
a second display if desired.
A Zoom Rooms account or activation code
l
View the
Crestron Flex Pre-Deployment Checklist
Crestron Flex installation.
Optional
CCS-UCA-SMK
Swivel Mount Kit
l
CCS-UCA-MIC KIT
Microphone Pods
l
In the Box
UC-BRKT-100-Z-ASSY, UC Engine Bracket Assembly
1
UC-BRKT-100-Z-ASSY (6511049)
1
Power cord
Mounting Hardware
CCS-UC-1, Crestron Mercury® Tabletop UC Video Conference
Device
1
CCS-UC-1 (6508227)
1
Cable, USB 2.0 A - Micro B, 6 ft (1.8 m) (2047803)
1
Cable, CAT5e, RJ-45 Male - RJ-45 Male, 12 ft (3.6 m)
(2033988)
Cable Management Hardware
to help plan your
Accessory Box
1
CCS-CAM-USB-F-400, Huddly IQ™ Collaboration Camera
(6510482)
1
CCS-UCA-MEM-USB, USB Drive (6509548)
1
PW-2420RU, Power Supply (6500187)
1
CBL-CAT5E-7, CAT5e cable RJ-45-to-RJ-45, Black,
7 ft (2.1 m) (6509924)
CBL-HD-THIN-HS-6, Thin HDMI® cable, 6 ft (1.8 m) (6510946)
1
1
CBL-HD-20, HDMI cable 20 ft (6.1 m) (6503567)
1
CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,
9 ft (2.7 m) (6510718)
1
CBL-USB-A-EXT-15 USB Extension Cable, Type A
Male-to-Female, 15 ft (4.6 m) (6508260)
1
UC-CAM-WMK, Wall Mount Kit for Crestron Cameras
(6510998)
Quick Start
1
Advertisement
Related Manuals for Crestron UC-M150-Z
Summary of Contents for Crestron UC-M150-Z
- Page 1 Quick Start UC-M150-Z Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software The Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ software (UC-M150-Z) delivers a powerful solution for Accessory Box knowledge workers who want the Zoom Rooms software experience in CCS-CAM-USB-F-400, Huddly IQ™...
- Page 2 Quick Start UC-M150-Z Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software Overview The following diagram illustrates system connections.
- Page 3 Quick Start UC-M150-Z Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software Connect 1. Remove the connector covers prior to making UC-ENGINE-Z connections on the UC-BRKT-100-Z-ASSY bracket assembly.
- Page 4 Quick Start UC-M150-Z Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software 2. Make connections to the Crestron Mercury device and UC-BRKT-100-Z-ASSY bracket assembly as shown in the following illustration.
- Page 5 Quick Start UC-M150-Z Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software 3. Connect the display devices and camera to the UC-ENGINE-Z as shown below.
- Page 6 Quick Start UC-M150-Z Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software 4. Bundle the cables with the integrated cable tie wraps. The cable tie wraps are reusable.
-
Page 7: Complete The Installation
Quick Start UC-M150-Z Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ Software Complete the Installation After completing UC-ENGINE-Z connections, secure the connector covers using a #1 Phillips head screwdriver to replace the screws. NOTE: For additional security, replace the screws with the spanner screws included with the bracket assembly. -
Page 8: Apply Power
6. Tap Meet Now to exit. Log In to the Zoom Rooms Service Use the Crestron Mercury device to sign in to the Zoom Rooms service using an activation code or a Zoom Room Sign-In. 1. Enter the pairing code shown on the display to pair the Crestron Mercury device with the UC-ENGINE-Z. - Page 9 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
