Crestron UC-M130-T Quick Start Manual

UC-M130-T

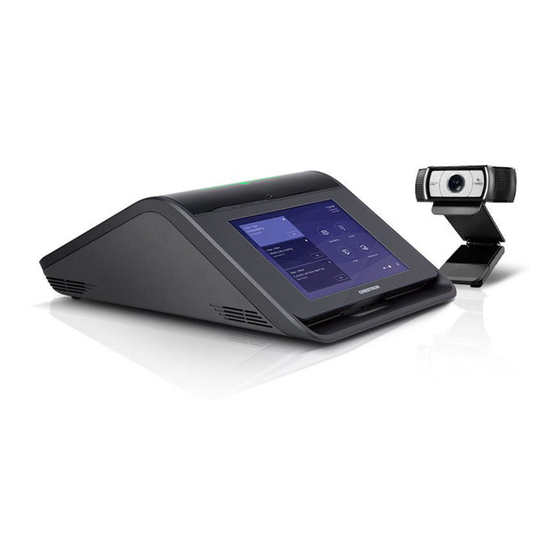

Crestron Flex Tabletop UC Video Conference System for Microsoft Teams® Rooms
The Crestron Flex Tabletop UC Video Conference System for Microsoft
Teams Rooms (UC-M130-T) delivers a powerful, professional solution for
knowledge workers who want the Microsoft Teams software experience
in small to midsize meeting and conference rooms.
The UC-M130-T allows the installer to select a direct connection method
for simplified installation and configuration or a network connection for
network management of included system components.
View the Crestron Flex Pre-Deployment Checklist
Crestron Flex installation.
Minimum Requirements
A video display, connected to the UC-ENGINE-SD
l
A Microsoft Teams or Skype® for Business software account
l
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365™ software
for Cloud) for scheduling and/or Skype for Business 2015
(on-premises installation or Microsoft 365 software for Cloud)
HDMI® cable to connect an HDMI source (CBL-HD-20 HDMI cable sold
l
separately)*
* Crestron recommends using Crestron cables only. For optimum
performance, Crestron offers the
required hookup cables.
Optional Accessories
CCS-UCA-SMK Swivel Mount Kit
l
CCS-UCA-MIC KIT Microphone Pods
l
to help plan your
UC-M-ACCY KIT which includes the
In the Box
UC Engine Bracket Assembly
1 UC-BRKT-100-SD-ASSY (6511033)
1 Power cord
Mounting Hardware
Crestron Mercury® Tabletop Conference System for Microsoft
Teams Software
1 CCS-UC-1-T-V (6510716)
1 Cable, CAT5e, RJ-45 Male - RJ-45 Male, 12 ft (3.6 m)
(2033988)
Cable Management Hardware
Accessories
1 CCS-CAM-USB-F-300, Huddly GO® Collaboration Camera
(6510481)
1 PW-2420RU, Power Supply (6500187)
1 CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,
7 ft (2.1 m) (6509924)
1 CBL-USB-A-BMICRO-6, USB 2.0 A - Micro-B, 6 ft (1.8 m)
(6510947)
1 CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,
9 ft (2.7 m) (6510718)
1 CBL-USB-A-EXT-15 USB Extension Cable, Type A
Male-to-Female, 15 ft (4.6 m) (6508260)
Quick Start
