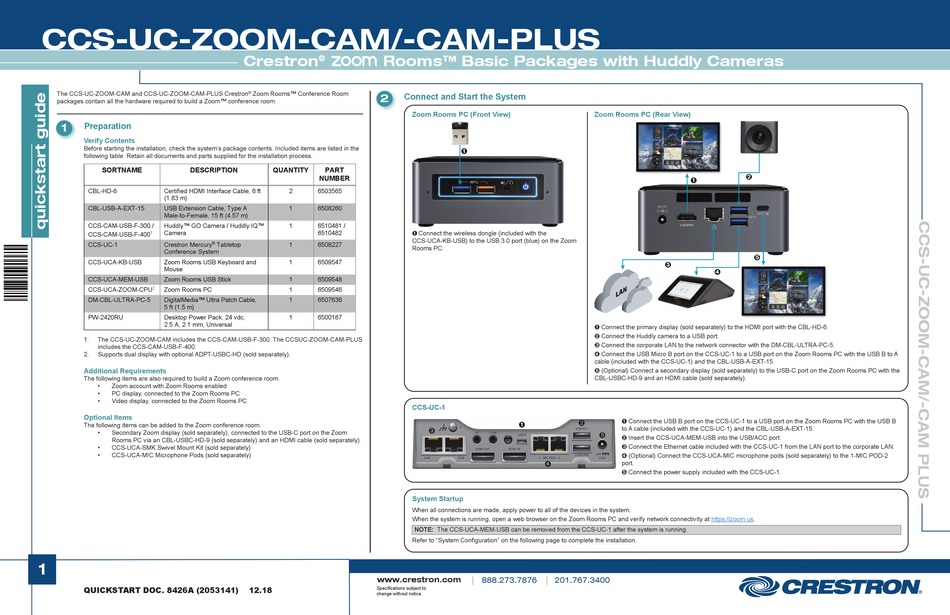

Crestron Zoom Rooms Quick Start Manual

CCS-UC-ZOOM-CAM/-CAM-PLUS
The CCS-UC-ZOOM-CAM and CCS-UC-ZOOM-CAM-PLUS Crestron
packages contain all the hardware required to build a Zoom™ conference room.
1 Preparation
Verify Contents
Before starting the installation, check the system's package contents. Included items are listed in the
following table. Retain all documents and parts supplied for the installation process.
SORTNAME DESCRIPTION
CBL-HD-6 Certified HDMI Interface Cable, 6 ft
(1.83 m)
CBL-USB-A-EXT-15 USB Extension Cable, Type A
Male-to-Female, 15 ft (4.57 m)
CCS-CAM-USB-F-300 / Huddly™ GO Camera / Huddly IQ™
Camera
CCS-CAM-USB-F-400 1
CCS-UC-1 Crestron Mercury ® Tabletop
Conference System
CCS-UCA-KB-USB Zoom Rooms USB Keyboard and
Mouse
CCS-UCA-MEM-USB Zoom Rooms USB Stick
CCS-UCA-ZOOM-CPU 2 Zoom Rooms PC
DM-CBL-ULTRA-PC-5 DigitalMedia™ Ultra Patch Cable,
5 ft (1.5 m)
PW-2420RU Desktop Power Pack, 24 vdc,
2.5 A, 2.1 mm, Universal
1. The CCS-UC-ZOOM-CAM includes the CCS-CAM-USB-F-300. The CCSUC-ZOOM-CAM-PLUS
includes the CCS-CAM-USB-F-400.
2. Supports dual display with optional ADPT-USBC-HD (sold separately).
Additional Requirements
The following items are also required to build a Zoom conference room.
• Zoom account with Zoom Rooms enabled
• PC display, connected to the Zoom Rooms PC
• Video display, connected to the Zoom Rooms PC
Optional Items
The following items can be added to the Zoom conference room.
• Secondary Zoom display (sold separately), connected to the USB-C port on the Zoom
Rooms PC via an CBL-USBC-HD-9 (sold separately) and an HDMI cable (sold separately)
• CCS-UCA-SMK Swivel Mount Kit (sold separately)
• CCS-UCA-MIC Microphone Pods (sold separately)
1
QUICKSTART DOC. 8426A (2053141)
Crestron Rooms™ Basic Packages with Huddly Cameras
®
Zoom Rooms™ Conference Room
® Connect and Start the System
2

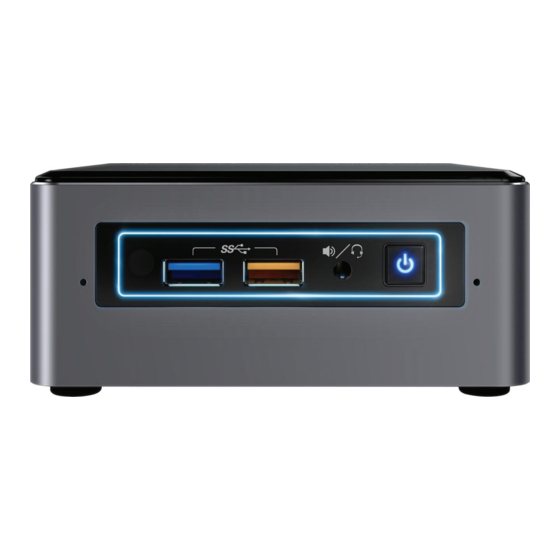

Zoom Rooms PC (Front View)
QUANTITY PART
NUMBER
2 6503565
1 6508260
1 6510481 /
6510482
 Connect the wireless dongle (included with the
CCS-UCA-KB-USB) to the USB 3.0 port (blue) on the Zoom
1 6508227
Rooms PC.
1 6509547
1 6509548
1 6509546
1 6507636
1 6500187
CCS-UC-1
System Startup
When all connections are made, apply power to all of the devices in the system.
When the system is running, open a web browser on the Zoom Rooms PC and verify network connectivity at https://zoom.us.
NOTE: The CCS-UCA-MEM-USB can be removed from the CCS-UC-1 after the system is running.
Refer to "System Configuration" on the following page to complete the installation.
www.crestron.com
12.18 Specifications subject to
change without notice.
Zoom Rooms PC (Rear View)

 Connect the primary display (sold separately) to the HDMI port with the CBL-HD-6.
 Connect the Huddly camera to a USB port.
 Connect the corporate LAN to the network connector with the DM-CBL-ULTRA-PC-5.
 Connect the USB Micro B port on the CCS-UC-1 to a USB port on the Zoom Rooms PC with the USB B to A
cable (included with the CCS-UC-1) and the CBL-USB-A-EXT-15.
 (Optional) Connect a secondary display (sold separately) to the USB-C port on the Zoom Rooms PC with the
CBL-USBC-HD-9 and an HDMI cable (sold separately).





888.273.7876 201.767.3400





N
L A
 Connect the USB B port on the CCS-UC-1 to a USB port on the Zoom Rooms PC with the USB B
to A cable (included with the CCS-UC-1) and the CBL-USB-A-EXT-15.
 Insert the CCS-UCA-MEM-USB into the USB/ACC port.
 Connect the Ethernet cable included with the CCS-UC-1 from the LAN port to the corporate LAN.
 (Optional) Connect the CCS-UCA-MIC microphone pods (sold separately) to the 1-MIC POD-2
port.
 Connect the power supply included with the CCS-UC-1.
