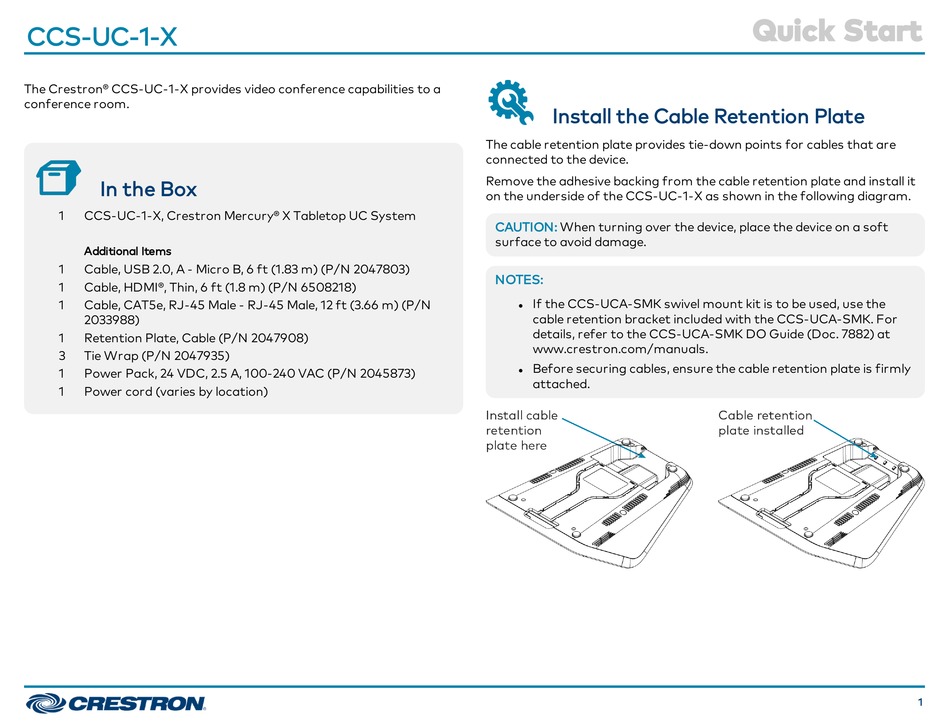

Crestron CCS-UC-1-X Quick Start

CCS-UC-1-X
The Crestron® CCS-UC-1-X provides video conference capabilities to a
conference room.
In the Box
1 CCS-UC-1-X, Crestron Mercury® X Tabletop UC System
Additional Items
1 Cable, USB 2.0, A - Micro B, 6 ft (1.83 m) (P/N 2047803)
1 Cable, HDMI®, Thin, 6 ft (1.8 m) (P/N 6508218)
1 Cable, CAT5e, RJ-45 Male - RJ-45 Male, 12 ft (3.66 m) (P/N
2033988)
1 Retention Plate, Cable (P/N 2047908)
3 Tie Wrap (P/N 2047935)
1 Power Pack, 24 VDC, 2.5 A, 100-240 VAC (P/N 2045873)
1 Power cord (varies by location)
Install the Cable Retention Plate
The cable retention plate provides tie-down points for cables that are
connected to the device.
Remove the adhesive backing from the cable retention plate and install it
on the underside of the CCS-UC-1-X as shown in the following diagram.
CAUTION: When turning over the device, place the device on a soft
surface to avoid damage.
NOTES:
If the CCS-UCA-SMK swivel mount kit is to be used, use the
l
cable retention bracket included with the CCS-UCA-SMK. For
details, refer to the CCS-UCA-SMK DO Guide (Doc. 7882) at
www.crestron.com/manuals.
Before securing cables, ensure the cable retention plate is firmly
l
attached.
Quick Start
1
