Ports; Fig. 4.1: Product Description - Union Instruments PMS3000 Translation Of The Original Operating Instructions

4 Ports

11
10
9
8
7
6

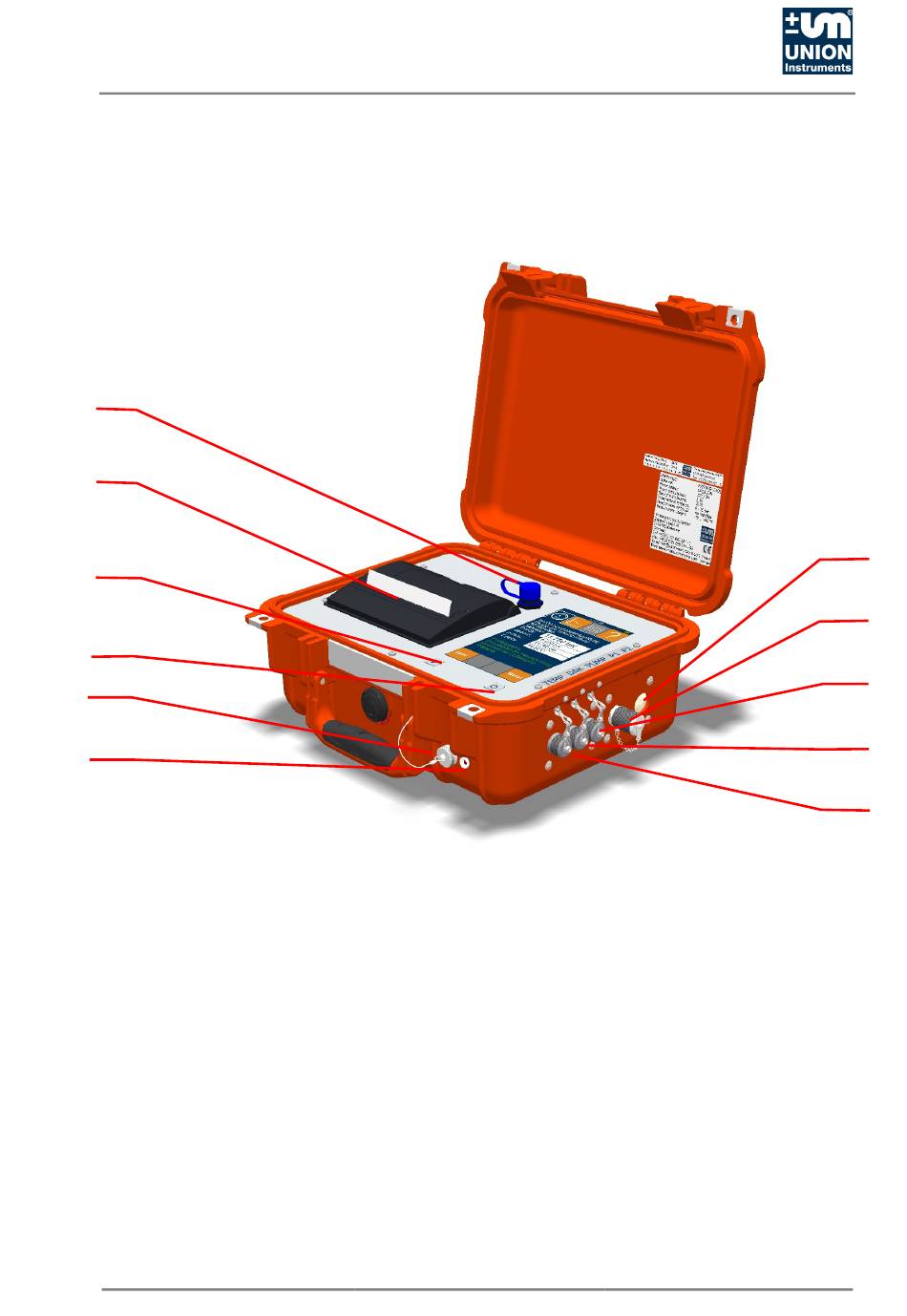

Fig. 4.1:
1. Pressure input, 2 Measuring port,
optional
2. Pressure input, 1 Measuring port,
standard
3. Pump controller input,
(optional)
4. DAK2060 pressure relief kit control,
ESS calibration
5. Temperature sensor input/measuring
port
6. Status LED
Jul-2020
Product description
7. Power supply charging socket
8. On/off switch
9. Display light,
on/off – brightness levels
10. Thermal printer
11. USB port (slave)
1
2
3
4
5
