Summary of Contents for Spypoint LINK-CT

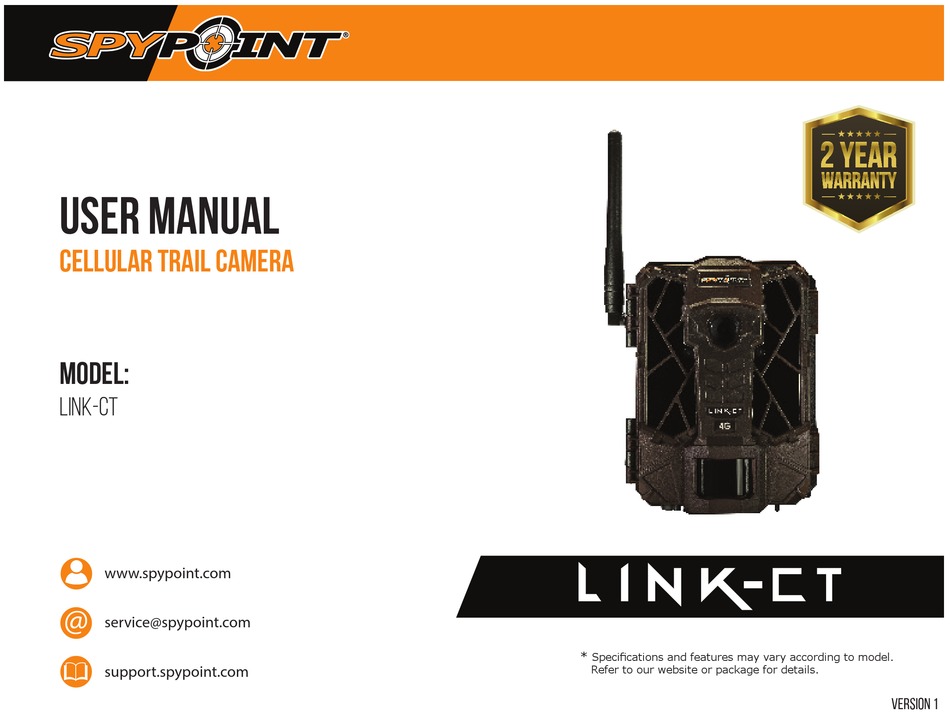

- Page 1 Link-ct www.spypoint.com service@spypoint.com Specifications and features may vary according to model. support.spypoint.com Refer to our website or package for details. Version 1...
- Page 2 This manual is designed to guide you through all the great features of easy-to-use, innovative, affordable, and of exceptional quality. your SPYPOINT device so you can optimize its use, all while making the SPYPOINT products are mainly used for hunting or residential and most of your time in the field.
-
Page 3: Table Of Contents
Power ................... 7 Memory card and Busy LED ............8 Getting started ................9 Software: Configuration and diagnosis tool .........10 SPYPOINT LINK App .............. 11-13 Installation and Mounting bracket ..........14 File transfer to a computer ............15 Available accessories ..............16 Troubleshooting ..............17-18 Warranty and Repair ..............19... -
Page 4: Components / 4
components / 4 Antenna LEDs Photo lens Light sensor Test light Signal meter ON / OFF Switch SD card slot Fresnel lens Battery case and Micro SIM card reader Slot for installation strap Locking latch Cable lock hole 12V jack Tripod mount Battery door push button... - Page 5 components / 5 Antenna Allows cellular wireless communication. Battery case Case for AA batteries or a rechargeable lithium battery pack. LEDs Night lighting to obtain black and white photos and videos. Micro SIM card slot A micro SIM card is required for cellular func- tions.
-
Page 6: Specifications / 6
LINK-CT: 4G •External memory : SD/SDHC card Photo transmission Wireless photo transmission via the free, (up to 32 GB) SPYPOINT LINK App with a SPYPOINT Power sources plan. For more information, please vi- sit the link below. Alkaline or lithium batteries... -
Page 7: Power / 7
power / 7 POWER SOURCES EXTERNAL (12V) AA BATTERIES This camera can also be powered by an This camera can be powered by 8 AA batteries external 12-volt DC input such as a 12-volt (1.5V). The use of alkaline or lithium batteries is battery (KIT-12V, BATT-12V or KIT6V/12V) or a DC 12V recommended. -
Page 8: Memory Card And Busy Led / 8
Many photo and video resolutions are noted, see those corresponding to the camera. Note: This SPYPOINT camera is equiped with continuous file recording. When the memory card is full, the camera will continue to record photos or videos by deleting the first recorded files. -
Page 9: Getting Started / 9
LINK app upon the next synch. Synchs are set by default SETTING THE APP to every 4 hours starting at midnight. The SPYPOINT App lets you configure all your settings of the camera. Theses new settings will take effect the next time the camera connects to update its status. -
Page 10: Software: Configuration And Diagnosis Tool / 10
4. You can change the desired settings using the different tabs selection. Note that all these settings can be set via the SPYPOINT LINK app. If you'd like to use your camera in stand alone mode, just turn Off the cellular to use it as a regular trail cam. -
Page 11: Spypoint Link App / 11
SPYPOINT LINK App / 11 When you login in the SPYPOINT LINK app, it will bring you directly to the "Photos" tab. From there, you will be able to see right away the latest photos received as they are sorted by date and time. - Page 12 SPYPOINT LINK App / 12 BASIC SETTINGS VIDEO MODE PHOTO MODE Delay: Delay: (Instant/10s/1m/3m/5m/10m/15m/30m)) (Instant/10s/1m/3m/5m/10m/15m/30m) Allows the user to choose the time interval between each detection before Allows the user to choose the time interval between each detection the camera records the next video.
- Page 13 SPYPOINT LINK App / 13 SYNCHRONISATION SETTINGS First sync time: Battery type: (AA/LIT-09/12V) Allows the user to choose at what time of the day the camera communicates for the first time. Allows the user to select the battery type he is using to get a more precise...
-
Page 14: Installation And Mounting Bracket / 14
installation and mounting bracket / 14 installation INSTALLATION with the supplied strap Recommended installation height The dimensions of the included strap are 2.5 cm (1’’) X 152 cm (60’’). The camera should be installed at the same height as the animal's mid-body. Thread the strap through the strap slot found on the back of the camera. -
Page 15: File Transfer To A Computer
transferring files to a computer / 15 TRANSFERRING FILES TO A COMPUTER • Turn OFF the camera. • Remove the MicroSD card from the camera. • Insert the MicroSD card into the alotted slot on your computer, or use a MicroSD card USB adaptor. •... -
Page 16: Available Accessories / 16
Fits all a 12V battery to a camera. resistant ABS plastic case, AC SPYPOINT cameras. charger, 12 ft power cable Steel security box Camera mount Cable lock #SB-200, Steel box to secure the #MA-360,... -
Page 17: Troubleshooting / 17
The camera cannot access the memory card. • Turn off the camera and turn it on again • The camera must use the SPYPOINT SIM card • Turn off the camera, then remove the SIM card and Error: SIM card provided with the camera. - Page 18 • Install the latest update (available on Impossible to turn black to reflect the infrared back to the camera. www.spypoint.com under SUPPORT section). on the camera photos / videos • If you're unsure if the flash is working properly, test •...
-
Page 19: Warranty And Repair / 19
GG Telecom will repair the product or replace it at its discretion with an equivalent product without charge This SPYPOINT product, designed by GG Telecom, is covered by a two (2) year if covered by the warranty described previously. The shipping fees for a sent item will be assumed by the limited warranty on material and workmanship starting from the original date of customer. -
Page 20: Regulation
fcc regulations / 20 fcc regulations Article 15 of the FCC regulations This equipment has been tested and found to comply with the limits for a Class-B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
