- Page 1 SPYPOINT LINK-MICRO-LTE USER MANUAL AND COMPARABLE v.1.0...
- Page 2 The LINK-MICRO-LTE is one of the many SPYPOINT trail cameras. What sets This User Manual will introduce you to the features of your new LINK-MICRO-LTE it apart is first its size. Cameras from the MICRO series are the smallest on...
-
Page 3: Table Of Contents
Table Of Content SPYPOINT LINK-MICRO-LTE Components ..................4 Features ....................6 Power Supply ..................7 Memory Card ..................8 Preparation ....................9 Activation .................... 10 Installation ..................11 Starting Your Camera ..............12 Configuration ..................13 Verification ..................16 Tool – Accessories – Options ............18 Transferring Files to a Computer .......... -
Page 4: Components

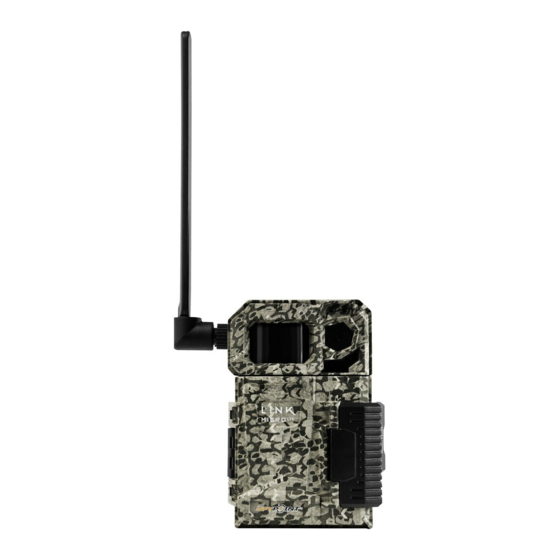

Components SPYPOINT LINK-MICRO-LTE Antenna OFF/ON switch Cable lock hole Detection lens STATUS light Antenna support MicroSD card slot SIM card slot Antenna holder Light sensor Battery compartment Battery holder Delay light Door 12 V jack Photo lens Slot for installation strap ... - Page 5 The SIM card, pre-installed and pre-activated, is included with the camera. ¼"-20 TRIPOD MOUNT It is important to use a SPYPOINT SIM card (supplied by SPYPOINT), Allows you to attach a standard tripod from ¼"-20. otherwise the cellular functions of the camera will be inoperative.
-
Page 6: Features
Features SPYPOINT LINK-MICRO-LTE VIEWING CELLULAR TRANSMISSION On the SPYPOINT app or on the website www.spypoint.com/en/manage Frequency POWER SOURCES Transmission of your photos to your SPYPOINT application by cellular network. Alkaline or lithium AA batteries 8 x AA (not included) Photo transmission Visit www.spypoint.com/plans to choose... -
Page 7: Power Supply
• On the device: as soon as the device is switched on, when the STATUS light • Unlock the latch and open the LINK-MICRO-LTE door. flashes orange, it indicates that the battery level is low. -
Page 8: Memory Card
INSERTING YOUR MICROSD CARD Before inserting the microSD card into your camera, it must be formatted via a computer to ensure proper operations. Visit www.spypoint/support if you need help formatting your microSD card. • Ensure the camera is turned OFF. -
Page 9: Preparation
Save and reuse the mount to protect To do so, you will need the activation code. your antenna during future trips. FINDING THE ACTIVATION CODE The activation code is located inside the LINK-MICRO-LTE’s battery compartment. Activation code... -
Page 10: Activation
“REGISTER”, fill out the required fields, then log in. 2. Select the + sign on the far right of the page; in the list, select “LINK-MICRO-LTE” then follow the steps. 3. When complete, a confirmation email with instructions on how to finalize the creation of your account will be sent to you. -
Page 11: Installation
Installation SPYPOINT LINK-MICRO-LTE INSTALLING YOUR CAMERA 1. To install the camera, loop the installation strap through the intended slot (see diagram). 2. Choose a solid tree that does not move in the wind, as movement will cause false detections. 3. Make sure the area immediately in front of your camera is free of branches or twigs that could be blown away by the wind. -
Page 12: Starting Your Camera
Starting Your Camera SPYPOINT LINK-MICRO-LTE 6. If the light is red during step 3, you should: • Turn your camera OFF and then back ON. • Retry while pointing the antenna at different angles. • Try moving it to a spot with better signal. -
Page 13: Configuration
Configuration SPYPOINT LINK-MICRO-LTE BASIC CONFIGURATION Use the SPYPOINT app to configure your camera. MODE Allows you to start the device in Photo mode. The Video mode and the Time-lapse mode are not offered for this camera model. Photos only DELAY Allows you to choose the period of time to wait before the camera detects again and records the next picture. - Page 14 Configuration SPYPOINT LINK-MICRO-LTE ADVANCED CONFIGURATION DATE FORMAT Allows you to choose the date format displayed. MM/DD/YYYY or DD/MM/YYYY TIME FORMAT Allows you to choose the time format displayed. 12 h or 24 h TEMPERATURE UNIT Allows you to choose the temperature unit format displayed.
- Page 15 Configuration SPYPOINT LINK-MICRO-LTE RECOMMENDED CONFIGURATION The camera can be configured to be used in trails. This situation usually presents a lower level of activity, topics that move quickly and fewer photos. This configuration increases the chances of detecting animals in succession.
-
Page 16: Verification
VERIFYING CAMERA STATUS Different tools are available to help you check the status of your Here are the different indicators of the LINK-MICRO-LTE status you have access LINK-MICRO-LTE and to inform you of any problems that may occur to. They are accessible on your app or on the SPYPOINT website. - Page 17 Verification SPYPOINT LINK-MICRO-LTE STATUS LIGHT AND DELAY LIGHT Delay light Those two lights are another tool giving you clues on your camera status. The following table shows you what these lights indicate when the camera starts up and during normal operations. The fact that they are flashing or fixed, and their different colors are significant.
-
Page 18: Tool - Accessories - Options
To make sure you use your trail camera in an optimal way, that it precisely • View and sort your photos. meets your needs, and that you have better success as a hunter, SPYPOINT For more information, visit offers you a range of very useful additional digital features. -
Page 19: Transferring Files To A Computer
Transferring Files to a Computer SPYPOINT LINK-MICRO-LTE TRANSFERRING FILES TO A COMPUTER ON A MAC • Turn the camera OFF. Click on the search tool in the “Toolbar”. Locate your device under the “Devices” tab and click to access it. Then click on “DCIM” and “100DSCIM”... -
Page 20: Offered Accessories
LINK-MICRO-LTE 12 V BATTERY, CHARGER & HOUSING KIT 12 V POWER CABLE Compatible with all SPYPOINT devices with a 12 feet (3.6 meters) cable with alligator clips 12 V socket. Case, AC charger, 12 ft (3.6 meters) to connect to a 12 V camera battery. -
Page 21: Troubleshooting
3. From the app, reset the device to its original state. 4. Perform the latest update (available on www.spypoint.com under the SUPPORT section). 1. Make sure the camera is turned ON. 2. If it is not already done, remove the protective sticker on the detection lens of your camera. - Page 22 Troubleshooting SPYPOINT LINK-MICRO-LTE ISSUES POSSIBLE SOLUTIONS 1. Verify if the signal strength received by your device is sufficient. 2. Make sure you have not reached the photo limit of your cellular plan. 3. Verify if there is a message in the Photo section of your app.
- Page 23 Troubleshooting SPYPOINT LINK-MICRO-LTE ISSUES POSSIBLE SOLUTIONS During the installation, the delay light flashes for 30 seconds to allow the user THE RED LIGHT IN FRONT OF THE CAMERA FLASHES to walk away without being photographed. 1. Verify the charge level of the batteries, as the night lighting may be malfunctioning if the charge level is low.
-
Page 24: Warranty And Preparation
INSTRUCTIONS FOR REPAIR SERVICES and it should be sent to: CANADA UNITED STATES SPYPOINT will repair the product, free of charge, or replace it at its discretion SPYPOINT DISTRIBUTION CENTER by an equivalent product, if it has a manufacturing defect covered by the warranty described above. -
Page 25: Regulation
Regulation SPYPOINT LINK-MICRO-LTE FCC REGULATION DISPOSAL Article 15 of the FCC regulation ONLY USE ORIGINAL SPARE PARTS AND ACCESSORIES. This equipment has been tested and found to comply with the limits for a class If, one day, your camera has been used so intensively that it has to be replaced,... -
Page 26: Frequency
Frequency SPYPOINT LINK-MICRO-LTE FREQUENCY FREQUENCY RANGE: 800/850/900/1900/2100 MHz MAXIMUM TRANSMISSION POWER: FREQUENCY MAX. GSM850 33 DBM ± 2 DB EGSM900 33 DBM ± 2 DB DCS1800 30 DBM ± 2 DB PCS1900 30 DBM ± 2 DB GSM850 (8-PSK) 27 DBM ± 3 DB EGSM900 (8-PSK) 27 DBM ±...
