Summary of Contents for POWERTEX PBSB

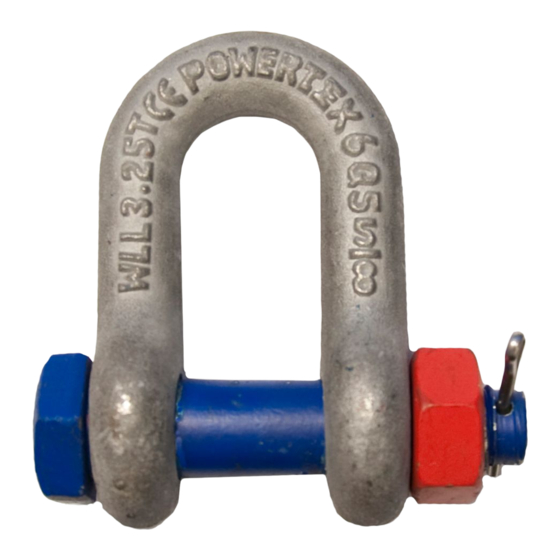

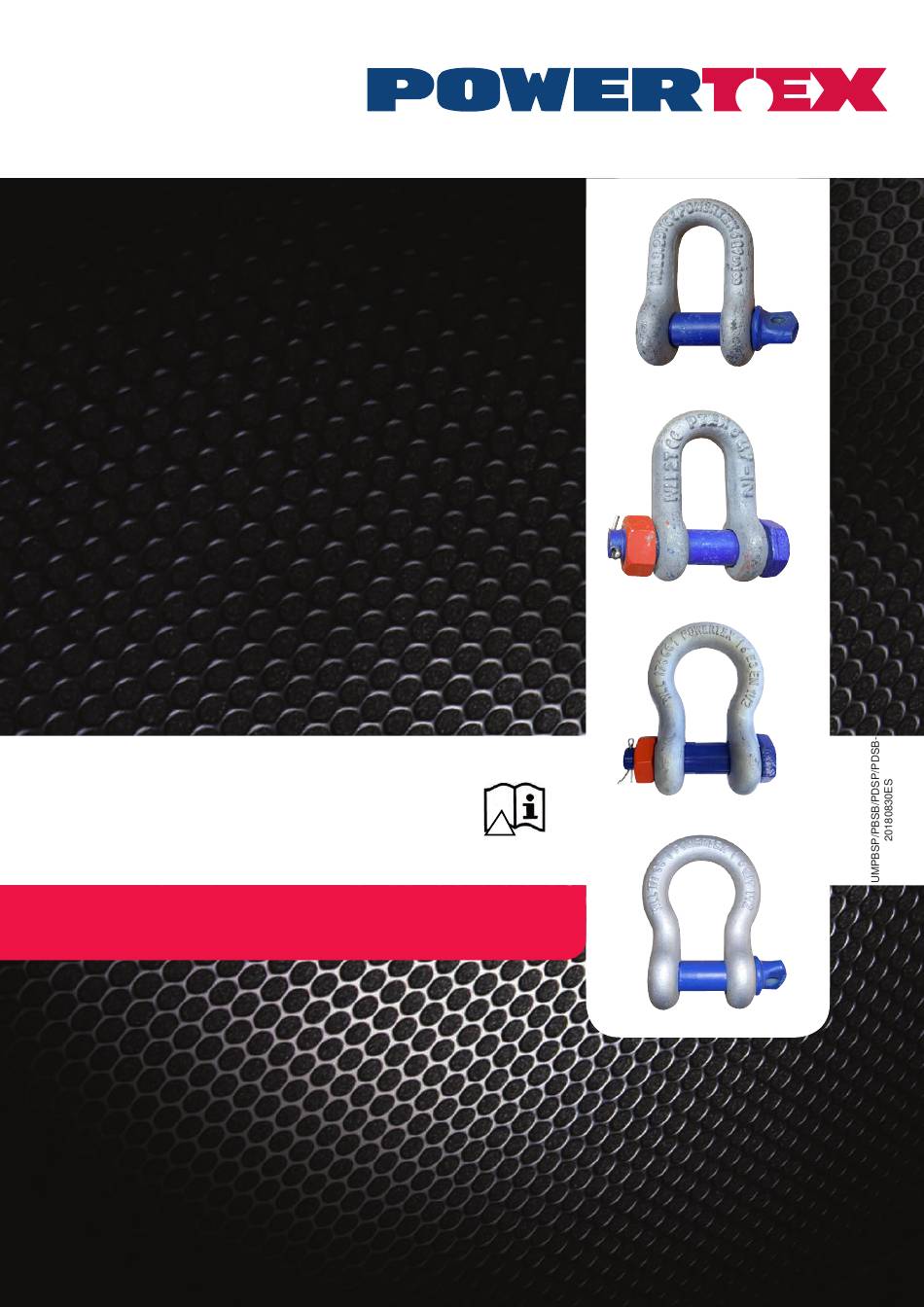

- Page 1 GB Instruction for use ES Instrucciones de uso POWERTEX Shackle PBSB/PBSP/PDSB/PDSP...
- Page 2 4,15 4,15 13,5 113,5 5,87 6,97 11,7 11,22 174,5 17,84 16,36 205,5 *Tolerance: +/- 5% PBSB with safety bolt PBSP with screw pin Pin Ø d1 H1 PBSB H1 PBSP Weight tons 0,33 6 / 6,3 22,6 14,5 15,5 33,5...
- Page 3 Incorrect seating of the pin may be due to a bent pin, the thread fitting 1. General description: too tightly or misalignment of pin holes. Do not use the shackle under POWERTEX Shackles are used as removable links to connect steel these circumstances. wire rope used in lifting operations and static systems, chain and other fittings.
- Page 4 As the angle increases, so does the load in the sling leg and consequently in any shackle attached to that leg. End of use/Disposal Powertex shackles shall always be sorted / scrapped as general steel scrap. Main material is steel grade 6, and hot dip galvanized. Split is AISI 304.
-
Page 5: Instrucciones De Uso (Es)
11,7 11,22 174,5 17,84 16,36 205,5 * Tolerancia: +/- 5% PBSB con perno de seguridad PBSP con tornillo pasador Pasador Ø d1 Alt. 1 PBSB Alt. 1 PBSP Peso toneladas 0,33 6 / 6,3 22,6 14,5 15,5 33,5 0,026 17,5... - Page 6 Aunque EN 13889 sólo cubre un rango de carga límite de trabajo de eslinga y, por lo tanto, en cualquier grillete acoplado a la pata. entre 0,5 t y 25 t como máximo, los grilletes Powertex se fabrican siem- pre conforme a EN 13889.
- Page 7 En las aplicaciones donde el grillete vaya a estar colocado durante un período prolongando o donde se precise seguridad de pasador máxi- Por la presente declara que las productos Powertex descritas más arri- ma, utilice un perno de cabeza hexagonal, una tuerca hexagonal y un ba cumplen la Directiva de maquinaria 2006/42/CE y sus enmiendas.
- Page 9 You can always find the valid and updated User Manuals on the web. The manual is updated continuously and valid only in the latest version. NB! The English version is the Original instruction. The manual is available as a download under the following link: www.powertex-products.com/manuals...
- Page 10 www.powertex-products.com...
