- Page 1 Instruction for use Bedienungsanleitung POWERTEX Aluminum Pulling Hoist PAPH-S1 User Manual...

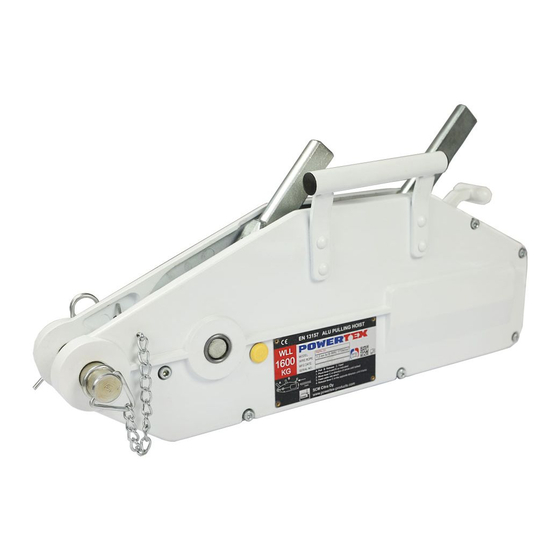

- Page 2 POWERTEX Aluminum Wire Rope Pulling Hoist PAPH-S1 0,8 - 5,4 ton Instruction for use (GB) (Original instructions) Read through these user instructions before using the wire rope hoist. Improper operation may lead to hazardous situations. General safety provisions • Only to be used by trained operator.
- Page 3 Function Operating principle The wire rope hoist works by pulling the lever back and forth when the wire rope runs through the hoist. The wire rope hoist can be used for lifting, pulling and tightening. The wire rope hoist has two jaws that open in turns so that the wire will always stay tight and will not be able to loosen. The safety shear pin on the wire rope hoist’s lifting lever breaks at just above WLL to prevent overloading.
- Page 4 Don’t extend the lever length. Abort the lifting process straight away if the load needs more power for lifting or lowering it. Never be on top of the load and make sure no one is working close or under the load that is being lifted. Don’t let the load spin during the lift.
- Page 5 POWERTEX Aluminium Seilzuggerät PAPH-S1 0,8 - 5,4 ton Bedienungsanleitung (DE) Lesen Sie diese Bedienungsanleitung vor der Verwendung des Seilzugs. Unsachgemäßer Betrieb kann zu gefährlichen Situationen führen. Allgemeine Sicherheitsbestimmungen Nur für den Einsatz durch geschulten Bediener. • Nicht in explosionsgefährdeter oder korrosiver Umgebung verwenden.
- Page 6 Funktion Funktionsprinzip Der Seilzug des Drahtseils arbeitet, indem er den Hebel hin- und herzieht, wenn das Drahtseil durch den Hebezeug läuft. Der Seilzug kann zum Heben, Ziehen und Anziehen verwendet werden. Der Drahtseilzug hat zwei Backen, die sich in Kurven öffnen, so dass der Draht immer dicht bleibt und sich nicht lösen kann. Der Sicherheitsstift am Hebehebel des Seilzugs des Seilzugs bricht knapp über WLL, um eine Überlastung zu verhindern.
- Page 7 Produkts und dass sich die Griffe frei bewegen. Überprüfen Sie, ob das Drahtseil sauber ist. Wenn das Drahtseil beschädigt ist, funktioniert der Seilzug nicht richtig und muss sofort ausgetauscht werden. Verwenden Sie nur einen Hebel gleichzeitig. Berühren Sie niemals den Entriegelungsgriff, wenn der Seilzug geladen ist. Ziehen Sie den Hebehebel nicht zu hart, da der Überlast-Sicherheitsstift bricht.
- Page 8 HX-800 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 0,8 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,assy. 2.Cylindric-head tapping 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,assy. 8.Shearing bolt 9.Action lever,assy.
- Page 9 Spare parts list 0,8 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 10 HX-1600 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 1,6 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,ass 2.Cylindric-head t 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,a 8.Shearing bolt 9.Telescopic actio...
- Page 11 Spare parts list 1,6 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Telescopic action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 12 HX-3200 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 3,2 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,assy. 2.Cylindric-head tappi screw 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,assy. 8.Shearing bolt 9.Telescopic action le...
- Page 13 Spare parts list 3,2 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Telescopic action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 14 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 5,4 t When ordering spare parts, specify model, WLL, part number and the quantity needed.
- Page 15 Spare parts list 5,4 t Pos Description Qty. Square nut M10 Name plate Case left Axle Sleeve Shaft Fastening bolt assembly Action lever forwardassy 1 Action lever forwardassy 2 Shearing bolt Intermediate actuating lever Centering shaft Rocker shaft Front slide Bearing NU2307 Roller Lever for clamp short...
- Page 17 Marking The POWERTEX Aluminium Wire Rope Hoist is equipped with a RFID (Radio-Frequency IDentification) tag, which is a small electronic device, that consist of a small chip and an antenna. It provides a unique identifier for the block.
- Page 18 Canary Islands www.powertex-products.com...
