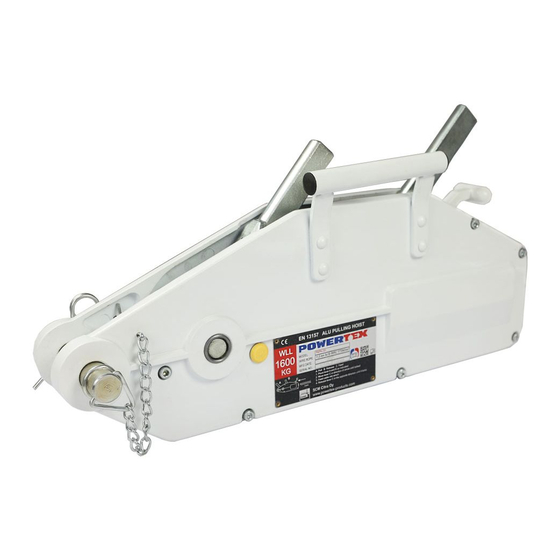

- Page 1 GB Instruction for use NL Gebruikersinstructies POWERTEX Aluminum Pulling Hoist PAPH-S1 User Manual...
- Page 2 POWERTEX Aluminum Wire Rope Pulling Hoist PAPH-S1 0,8 - 5,4 ton Instruction for use (GB) (Original instructions) Read through these user instructions before using the wire rope hoist. Improper operation may lead to hazardous situations. General safety provisions • Only to be used by trained operator.
- Page 3 Function Operating principle The wire rope hoist works by pulling the lever back and forth when the wire rope runs through the hoist. The wire rope hoist can be used for lifting, pulling and tightening. The wire rope hoist has two jaws that open in turns so that the wire will always stay tight and will not be able to loosen. The safety shear pin on the wire rope hoist’s lifting lever breaks at just above WLL to prevent overloading.
- Page 4 Don’t extend the lever length. Abort the lifting process straight away if the load needs more power for lifting or lowering it. Never be on top of the load and make sure no one is working close or under the load that is being lifted. Don’t let the load spin during the lift.
- Page 5 POWERTEX Aluminium Staalkabeltakel PAPH-S1 0,8 - 5,4 ton Gebruikersinstructies (NL) Lees deze handleiding voor het in gebruik nemen van de staalkabeltakel. Verkeerd gebruik kan tot gevaarlijke situaties leiden. Algemene veiligheidsvoorschriften • Alleen te gebruiken door bevoegde personen. • Niet gebruiken in explosieve of bijtende omgevingen.
- Page 6 Functie Bedieningsprincipe De staalkabeltakel werkt door de hendel heen en weer te trekken waardoor de staalkabel door het takel wordt getrokken. De staalkabeltakel kan gebruikt worden voor hijsen, trekken en aansjorren. De staalkabeltakel heeft twee bekopeningen die om en om openen zodat de kabel steeds strak in het takel blijft en niet los komt te zitten. Om overbelasting te voorkomen breekt de veiligheidspin in de hendel van het takel wanneer de maximum werklast wordt overschreden.
- Page 7 Trek niet te hard aan de hijshendel omdat de veiligheidspin t.b.v. overbelasting zal breken. Gebruik geen zelfgemaakte veiligheidspinnen in de staalkabeltakel! Verleng de hendels niet. Staak het hijsproces meteen als er meer kracht nodig is om de lading te hijsen of om deze te laten zakken. Bevind je nooit boven de last en zorg ervoor dat niemand in de buurt van of onder de last aan het werk is als deze wordt gehesen.
- Page 8 HX-800 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 0,8 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,assy. 2.Cylindric-head tapping 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,assy. 8.Shearing bolt 9.Action lever,assy.
- Page 9 Spare parts list 0,8 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 10 HX-1600 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 1,6 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,ass 2.Cylindric-head t 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,a 8.Shearing bolt 9.Telescopic actio...
- Page 11 Spare parts list 1,6 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Telescopic action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 12 HX-3200 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 3,2 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,assy. 2.Cylindric-head tappi screw 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,assy. 8.Shearing bolt 9.Telescopic action le...
- Page 13 Spare parts list 3,2 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Telescopic action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 14 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 5,4 t When ordering spare parts, specify model, WLL, part number and the quantity needed.
- Page 15 Spare parts list 5,4 t Pos Description Qty. Square nut M10 Name plate Case left Axle Sleeve Shaft Fastening bolt assembly Action lever forwardassy 1 Action lever forwardassy 2 Shearing bolt Intermediate actuating lever Centering shaft Rocker shaft Front slide Bearing NU2307 Roller Lever for clamp short...
- Page 17 Marking The POWERTEX Aluminium Wire Rope Hoist is equipped with a RFID (Radio-Frequency IDentification) tag, which is a small electronic device, that consist of a small chip and an antenna. It provides a unique identifier for the block.
