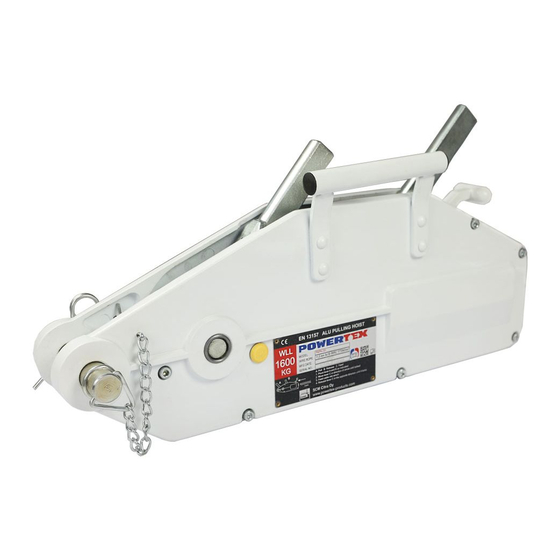

- Page 1 GB Instruction for use Lietošanas pamācība POWERTEX Aluminum Pulling Hoist PAPH-S1 User Manual...
- Page 2 POWERTEX Aluminum Wire Rope Pulling Hoist PAPH-S1 0,8 - 5,4 ton Instruction for use (GB) (Original instructions) Read through these user instructions before using the wire rope hoist. Improper operation may lead to hazardous situations. General safety provisions • Only to be used by trained operator.
- Page 3 Function Operating principle The wire rope hoist works by pulling the lever back and forth when the wire rope runs through the hoist. The wire rope hoist can be used for lifting, pulling and tightening. The wire rope hoist has two jaws that open in turns so that the wire will always stay tight and will not be able to loosen. The safety shear pin on the wire rope hoist’s lifting lever breaks at just above WLL to prevent overloading.
- Page 4 Don’t extend the lever length. Abort the lifting process straight away if the load needs more power for lifting or lowering it. Never be on top of the load and make sure no one is working close or under the load that is being lifted. Don’t let the load spin during the lift.
-
Page 5: Tehniskie Parametri
POWERTEX Alumīnija Trošu vinča PAPH-S1 0,8 - 5,4 tonnas Lietošanas pamācība (LV) Pirms trošu vinčas izmantošanas izlasiet šo lietošanas pamācību. Nepareiza lietošana var būt bīstama. Vispārēji drošības noteikumi Drīkst izmantot tikai apmācīta persona. • Nelietojiet sprādzienbīstamā vai korozīvā vidē. •... - Page 6 Darbība Darbības princips Trošu vinča darbojas velkot sviru uz priekšu un atpakaļ, kad trose iet caur vinču. Trošu vinču var izmantot gan celšanai, gan vilkšanai. Trošu vinčai ir divi žokļi, kas atvēras pēc kārtas, lai trose vienmēr ir nostiepta. Pacelšanas sviras drošības tapa saplīst tieši virs celtspējas (WLL), lai novērstu vinčas pārslodzi. Rokturī iekļautas 5 rezerves tapas. Sagatavošana pirms lietošanas Trošu vinčas pārbaude pirms lietošanas Pirms pirmās lietošanas reizes apmācītai personai jāpārbauda trošu vinču vizuāli un tās darbspēju.
- Page 7 et uz kravas un pārliecinieties, vai neviens nestrādā tuvumā vai zem paceltās kravas. Neļaujiet kravai griezties celšanas laikā. Izvairieties no kravas trieciena, sadursmes vai šūpošanās. Tikai tieša iekraušana. Trošu vinču nedrīkst pakļaut lieces spēka iedarbībai, gadījumā ja trose ir ievietota nepareizi. Lietojiet trošu vinču, turot vinčas āķi un enkurtapu vienā...
- Page 8 HX-800 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 0,8 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,assy. 2.Cylindric-head tapping 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,assy. 8.Shearing bolt 9.Action lever,assy.
- Page 9 Spare parts list 0,8 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 10 HX-1600 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 1,6 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,ass 2.Cylindric-head t 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,a 8.Shearing bolt 9.Telescopic actio...
- Page 11 Spare parts list 1,6 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Telescopic action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 12 HX-3200 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 3,2 t When ordering spare parts, specify model, WLL, part number and the quantity needed. Parts Name 1-3.Case right,assy. 2.Cylindric-head tappi screw 3.Washer 4.Case left,assy. 5.Name plate 6.Rivet 7.Fastening bolt,assy. 8.Shearing bolt 9.Telescopic action le...
- Page 13 Spare parts list 3,2 t Pos Description Qty. 1-3 Case right, assy. Cylindric-head tapping screw Washer Case left, assy Name plate Rivet Fastening bolt, assy. Shearing bolt Telescopic action lever, assy. Retaining ring Cylindric-head screw Nut with square Spring cutter, assy. Guide sleeve of wire rope Release handle for jaw clamps, assy.
- Page 14 POWERTEX Aluminium Pulling Hoist PAPH-S1 – Spare parts 5,4 t When ordering spare parts, specify model, WLL, part number and the quantity needed.
- Page 15 Spare parts list 5,4 t Pos Description Qty. Square nut M10 Name plate Case left Axle Sleeve Shaft Fastening bolt assembly Action lever forwardassy 1 Action lever forwardassy 2 Shearing bolt Intermediate actuating lever Centering shaft Rocker shaft Front slide Bearing NU2307 Roller Lever for clamp short...
- Page 17 Marking The POWERTEX Aluminium Wire Rope Hoist is equipped with a RFID (Radio-Frequency IDentification) tag, which is a small electronic device, that consist of a small chip and an antenna. It provides a unique identifier for the block.
- Page 18 Canary Islands www.powertex-products.com...
