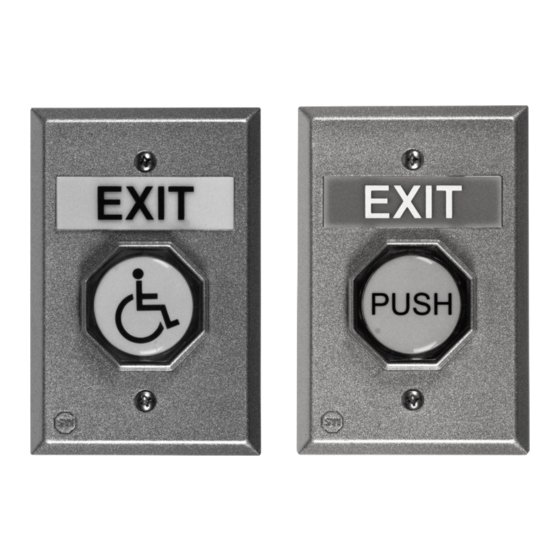

STI UB-1PN Quick Start Manual

Universal pneumatic button
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
UB-1PN Universal
Pneumatic Button
ADA
for operation
We protect the things that protect you.

Advertisement

loading
Need help?

Need help?

Do you have a question about the UB-1PN and is the answer not in the manual?

Questions and answers

Related Manuals for STI UB-1PN

Summary of Contents for STI UB-1PN

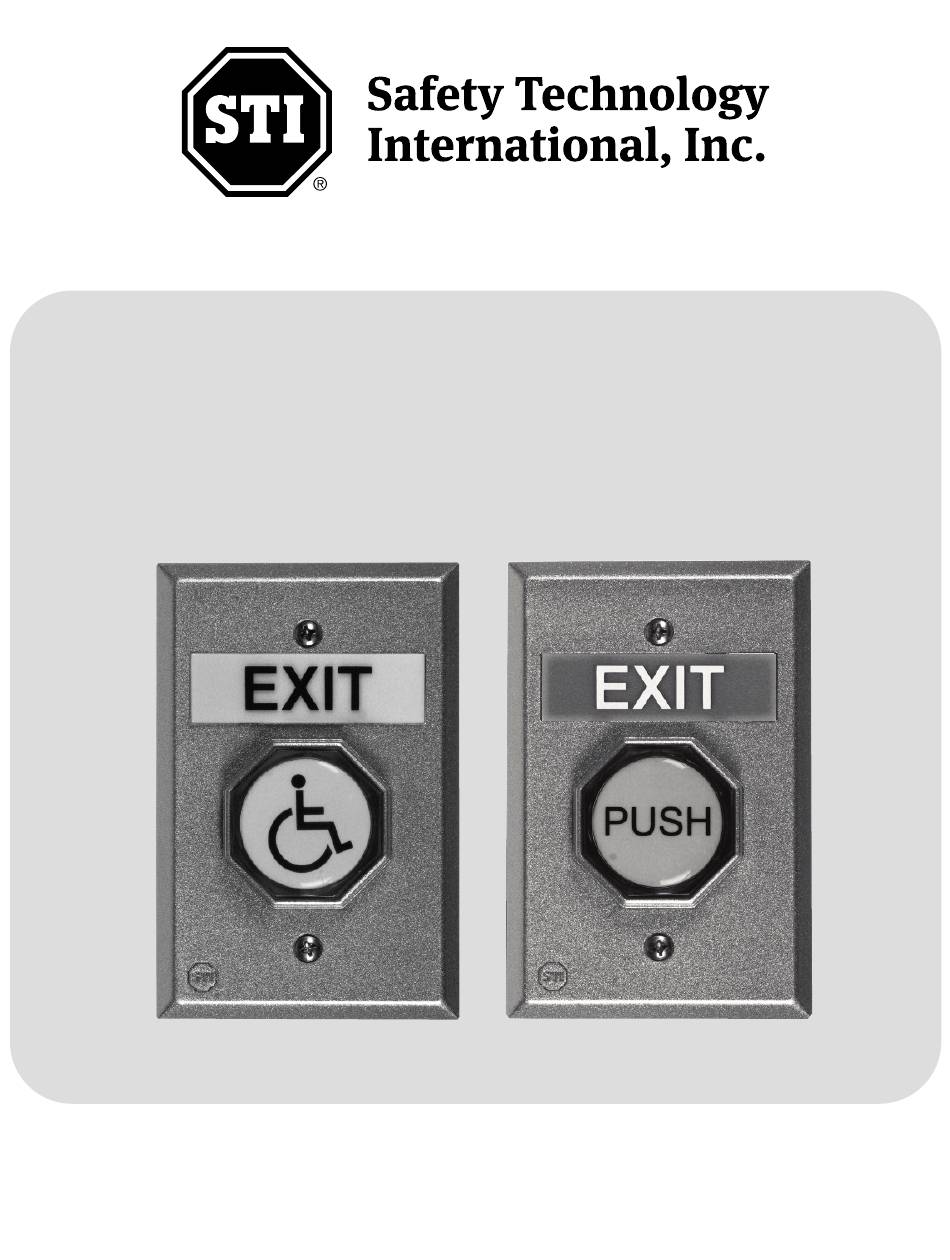

  • Page 1 UB-1PN Universal Pneumatic Button for operation We protect the things that protect you.
  • Page 2 4.83 in. (123mm) 3.22 in. .91 in. 1.47 in. (82mm) (23mm) (38mm) SWITCH RATING Independent Form “Z” contacts Rated at: 10A @ 240 VAC Operating Temp: 15° to 120°F (-9° to 49°C) 1,000,000 Cycles - 2 -...
  • Page 3 TO CHANGE BUTTON COLOR AND ROUND MESSAGE DIFFUSER 1. Choose button message and color. If same as existing, proceed to 2. If choosing a new message, remove button. On the back side of the plate, squeeze tabs and push actuator assembly into plate just enough to grasp the button and remove.
  • Page 4 INSTALL OR REMOVE CONTACT BLOCK BUTTON ACTIVATED BUTTON ACTIVATED INSTALL To attach, align tabs (as shown) and gently snap top, then bottom. Be sure to hear BOTH tabs snap into place. Contacts can be rotated 180° if desired. CONTACT INFORMATION POWER IN 12-30 VDC/VAC REMOVE...
  • Page 5 ATTACH POWER FOR LED (IF DESIRED) (See drawing) MAG LOCK NC CONTACTS NO CONTACTS UB-1L LED PCB UL Listed 12-24 VDC Power Supply NORMAL POSITION BUTTON ACTIVATED MAGNETIC LOCK MESSAGE LAMP CONTACT DIAGRAM NC (GREEN) (BLACK) NC NO (WHITE) CONTACTS (RED) NO One set NO and one set NC - 5 -...

  • Page 6: Switch Information

    CAUTION: OVER-TIGHTENING MAY CAUSE DAMAGE TO TIMER. MOUNT BUTTON ONTO ELECTRICAL BOX CUSTOM LABELS To create your own custom label, size to fit in .48h x 2.23w as shown below. Also available online at: www.sti-usa.com/ublabel .48 in. 2.23 in. - 6 -...
  • Page 7 24 VOLT LED KIT-E10147 WHITE (STANDARD) KIT-E10145 KIT-E10141 BLUE KIT-E10143 GREEN 12 VOLT LED KIT-E10144 KIT-E10140 BLUE KIT-E10142 GREEN COVERS BOPPER STOPPER STI-6518 STI-13000 Series UNIVERSAL STOPPER STOPPER II STI-1100 Series See website for complete cover details - 7 -...
  • Page 8 • www.sti-usa.com Taylor House • 34 Sherwood Road • Bromsgrove Worcestershire • B60 3DR • England Tel: 44 (0) 1527 520 999 • Fax: 44 (0) 1527 501 999 E-mail: info@sti-emea.com • Web: www.sti-emea.com Inst. Sht. UB-1PN Button JUN2018...
