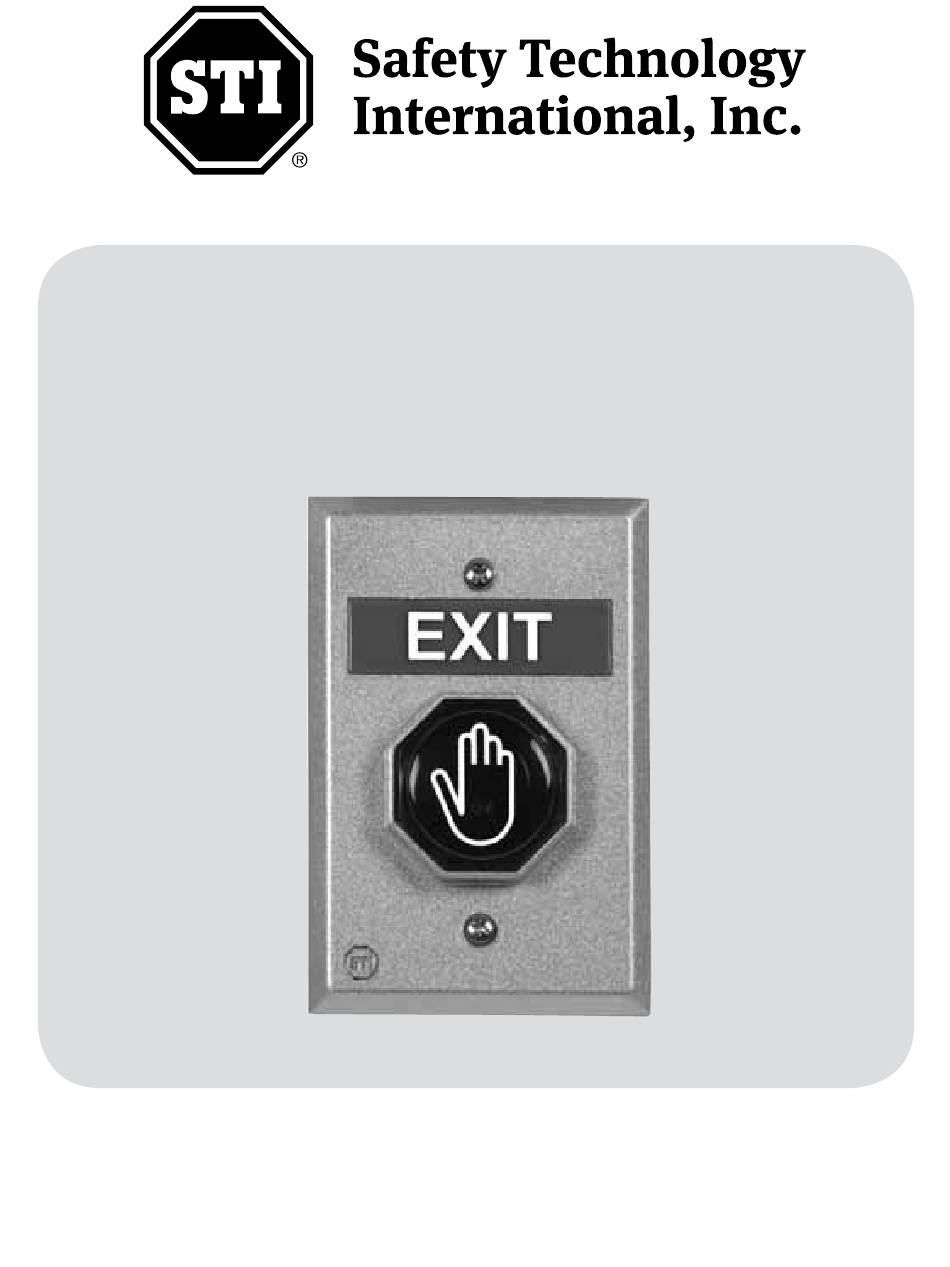

- Page 1 UB-1TF Universal Touch Free Button NoTouch ® Technology We protect the things that protect you. ®...
- Page 2 NOTES It is important to read, understand and follow all instructions provided with this product. It is the installer’s responsibility to comply with NFPA 70 & 101, NEC, mounting specifications according to ADA and other applicable electrical codes. To avoid electrical shock, DO NOT attempt to install this product when power is on.
- Page 3 T LATCH TIME ADJUSTMENT: ISE - LONG ACTIVATION RANGE ADJUSTMENT: RCLOCKWISE - SHORT 1. TO CHANGE BUTTON COLOR AND ROUND MESSAGE CLOCKWISE - CLOSE ~0.5 ~ 60 sec. COUNTERCLOCKWISE - FAR RANGE: ~0.4 ~ 4 INCHES DIFFUSER ~1 ~ 10 CM MESSAGE LENS SWITCH NUT POWER IN...
- Page 4 4.80 in. (122mm) 3. ATTACH WIRE PLUG 6.25 in.(159mm Wire Color Code with power applied: 3.22 in.(82mm) .75 in. .77 in. Red: +12 VDC (19mm) (20mm) Black: -12 VDC Green: N.C. Blue: COM White: N.O. COLOR CODE: +12 VDC BLACK -12 VDC GREEN N.O.
- Page 5 BLUE DEVICE DEVICE N.O. N.O. WHITE INPUT WHITE INPUT BLACK BLACK +12VDC +12VDC UB-1TF LED UB-1TF LED UB-1TF Wire Color Code CONNECTOR POWER OFF POWER ON POWER ON WIRE COLOR (SUPERVISORY) UNTRIGGERED TRIGGERED +12V +12V +12V BLACK -12V -12V -12V GREEN N.O.
- Page 6 (2) PROVIDED 6. CUSTOM LABELS To create your own custom label, size to fit in .48h x 2.23w as shown below. Also available online at: www.sti-usa.com/ublabel .48 in. Message lit with button LED gre Message lit with button LED red N.C.
- Page 7 24 VOLT LED KIT-E10147 WHITE (STANDARD) KIT-E10145 KIT-E10141 BLUE KIT-E10143 GREEN 12 VOLT LED KIT-E10144 KIT-E10140 BLUE KIT-E10142 GREEN COVERS BOPPER STOPPER STI-6518 STI-13000 Series UNIVERSAL STOPPER STI-1100 Series STOPPER II See website for complete cover details - 7 -...
- Page 8 • www.sti-usa.com Taylor House • 34 Sherwood Road • Bromsgrove Worcestershire • B60 3DR • England Tel: 44 (0) 1527 520 999 • Fax: 44 (0) 1527 501 999 E-mail: info@sti-emea.com • Web: www.sti-emea.com Inst. Sht. UB-1TF Button JUN2018...
