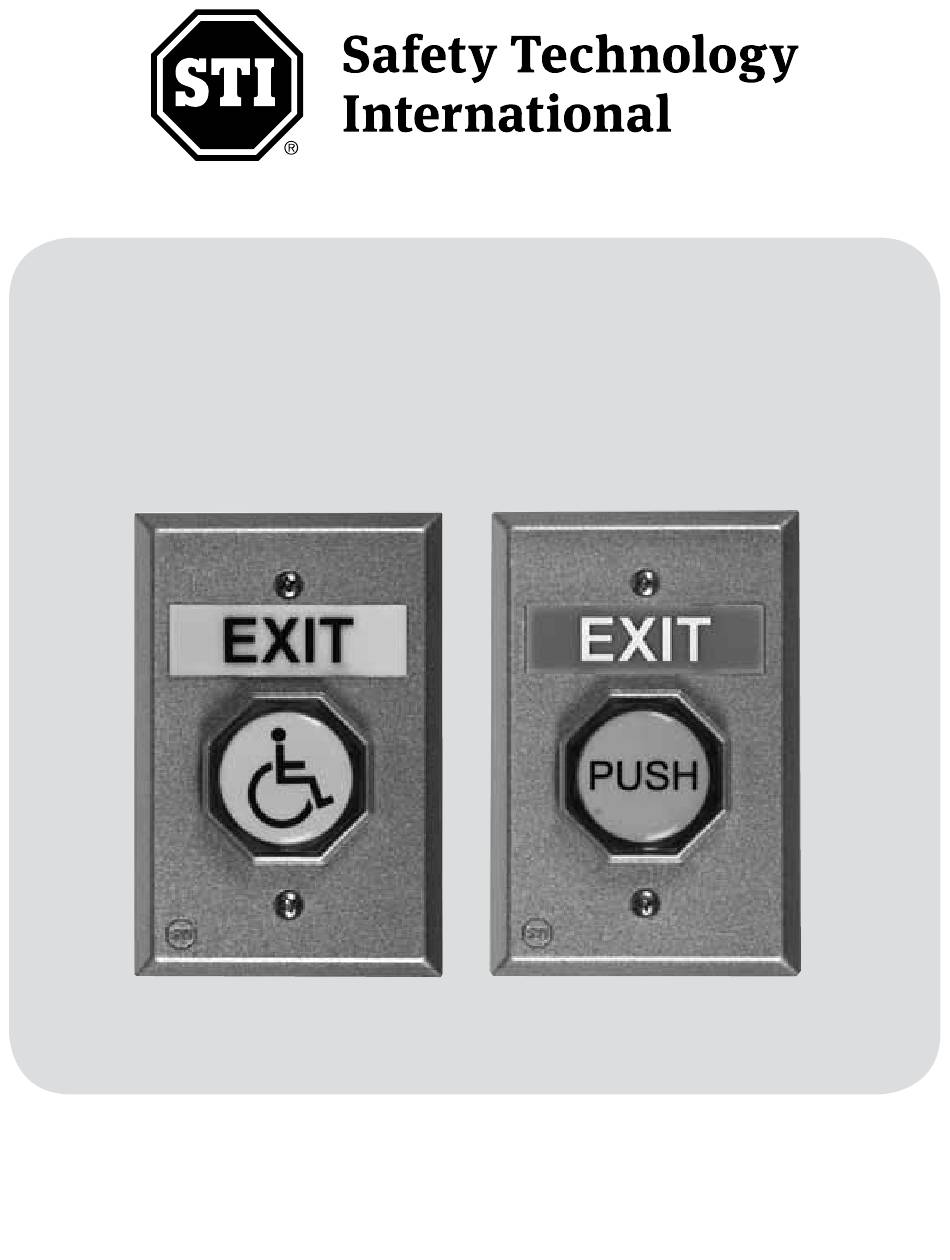

- Page 1 UB-1PN Universal Pneumatic Button Compliant Compliant We protect the things that protect you. ®...
- Page 2 * For access control installations, power for the UB-1PN must be supplied by a power source Listed to UL294. When used for access control, this device shall be used as a part of an access controlled egress door system.
- Page 3 1. TO CHANGE BUTTON COLOR AND ROUND MESSAGE POWER IN 12-30 VDC/VAC SQUEEZE TABS AND PUSH ASSEMBLY INTO PLATE 1. Choose button message and color. If same as existing, proceed to 2. 2. If choosing a new message, remove button. On the back side of the plate, squeeze tabs and push actuator assembly into plate just enough to grasp the button and remove.
- Page 4 MAGNETIC LOCK MESSAGE LAMP 3. INSTALL OR REMOVE CONTACT BLOCK POWE 12-30 VD INSTALL POWER IN 12-30 VDC/VAC To attach, align tabs (as shown) and gently snap top, then bottom. Be sure to hear BOTH tabs snap into place. Contacts can be rotated 180°...
- Page 5 4. ATTACH POWER FOR LED (if desired) (See drawing) MAG LOCK NC CONTACTS NO CONTACTS UB-1L LED PCB UL Listed 12-24 VDC Power Supply NORMAL POSITION BUTTON ACTIVATED MAGNETIC LOCK MESSAGE LAMP CONTACT DIAGRAM CONNECTION AND LEAD WIRE COLOR CODE TION AND LEAD WIRE COLOR CODE (BLACK) NC...
-
Page 6: Switch Information
SWITCH INFORMATION CONNECTION AND LEAD WIRE COLOR CODE COUNTERCLOCKWISE (BLACK) NC NC (GREEN) CLOCKWISE (RED) NO NO (WHITE) TIMER RANGE ADJUSTMENT SCREW ADJUSTMENT RANGE - 2 TO 60 SECONDS TIMER FACTORY SET TO MINIMUM TIME SETTING. TO INCREASE TIME, TURN SCREW CLOCKWISE IN 1/4 TURN INCREMENTS. - Page 7 6. CUSTOM LABELS To create your own custom label, size to fit in .48h x 2.23w as shown below. Also available online at: www.sti-usa.com/ublabel .48 in. 2.23 in. WARRANTY ACCESSORIES DESCRIPTION PART # COLOR MATCH BACK BOX KIT KIT-71100A-* (R=Red, B=Blue, G=Green, W=White Or Y=Yellow)
- Page 8 • www.sti-usa.com Taylor House • 34 Sherwood Road • Bromsgrove, Worcestershire • B60 3DR • England Tel: +44 (0)1527 520 999 • Fax: +44 (0)1527 501 999 • info@sti-emea.com • www.sti-emea.com Printed in USA Inst. Sht. UB1PN Button JAN2011...
