STI -13000 Series Install

Installation Notes

· When used outdoors, the manual station must also be rated for outdoor use.
· UL Listing does not permit external power source or connection of horn relay contacts to fire alarm
or life safety devices.
· When properly installed, the operation of this cover will not interfere with the function of your life
safety system.
TEXT HERE
· Horn operation and performance must be tested annually. Battery replacement is recommended
annually dependent on usage and battery expiration date.
· Ensure the service pin is properly inserted in the service pin receptor to silence horn while performing
installation or servicing horn.
· If mounting to an uneven surface, a backplate (STI-1314) is recommended to help ensure proper
sealing to mounting surface.
· The backplate may be drilled if wire access or screw mounting holes are needed.

Specifications

Polycarbonate Enclosure
· Flammability - flush and surface mount models (Fig. 2 & 3): UL 94 V-2, enclosed flush and
enclosed back box models (Fig. 4 & 5): UL 94 5VA
· Cover wall thickness 0.125 inches
LIFT HERE

Gaskets

STI-6004 Weather Gasket – fits ½" or ¾" conduit, closed cell neoprene
4.58 in.
KIT-G01331 Gasket for add-on spacer (Fig. 3)
(116mm)
KIT-G01307* Gasket for hinged spacer (Fig. 4)
*May be replaced with form-in-place gasket on spacer and 1/8" diameter gaskets for conduit area.

Horn

· Low (95 dB @ 1 ft.)
· High (105 dB @ 1 ft.)
· Min. Operating Req.
Dry Contact Relay
· 30 VAC/VDC, 1A

Temperature Range

· Electronics operating range: -40° to 120°F (-40° to 49°C) Below -4°F (-20°C), a remote
power source is recommended
· Polycarbonate rated: -40° to 284°F (-40° to 140°C)

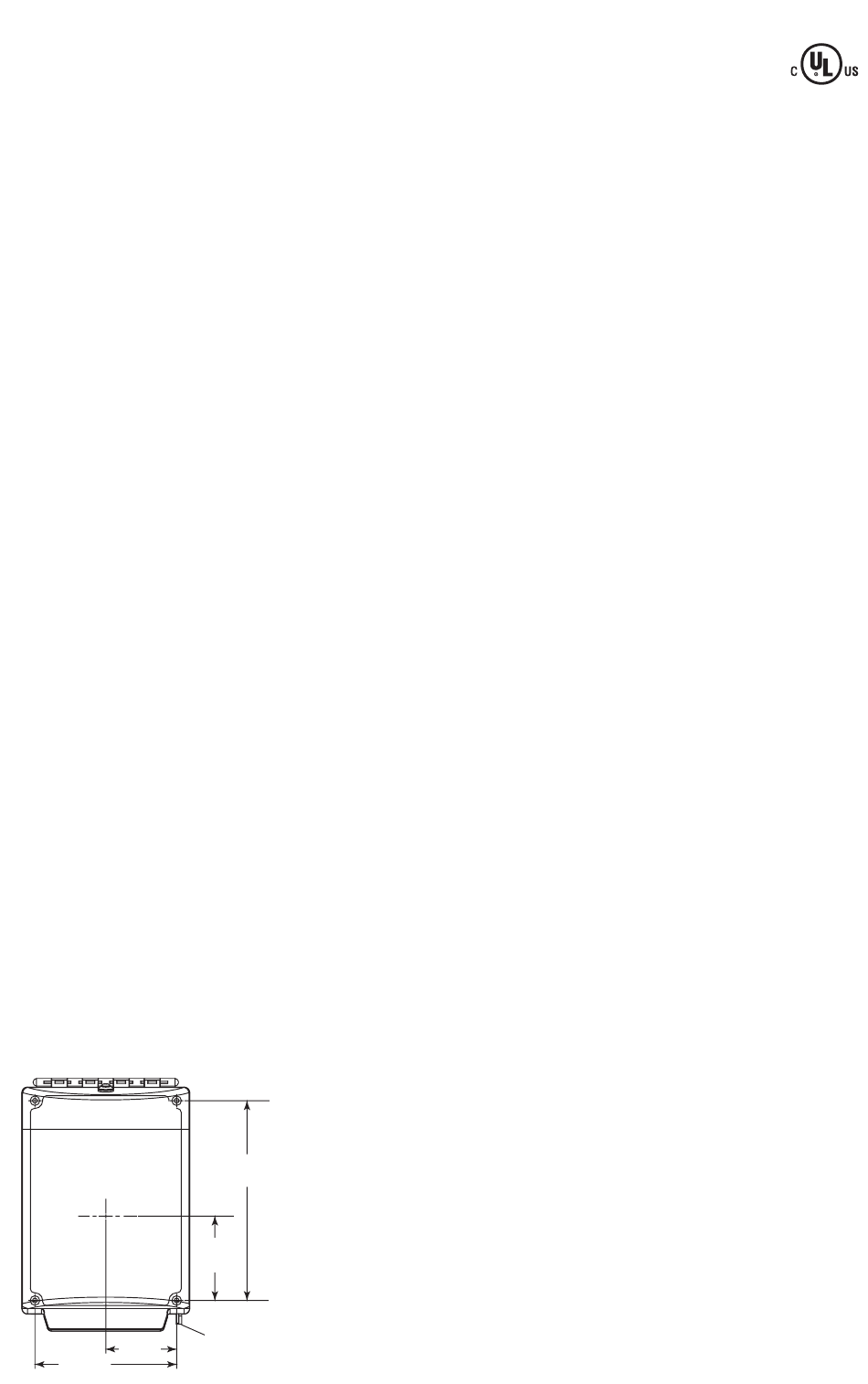

Fig. 1 - Dimensions
TEXT HERE
LIFT HERE
2.29 in.
(58mm)
4.58 in.
(116mm)

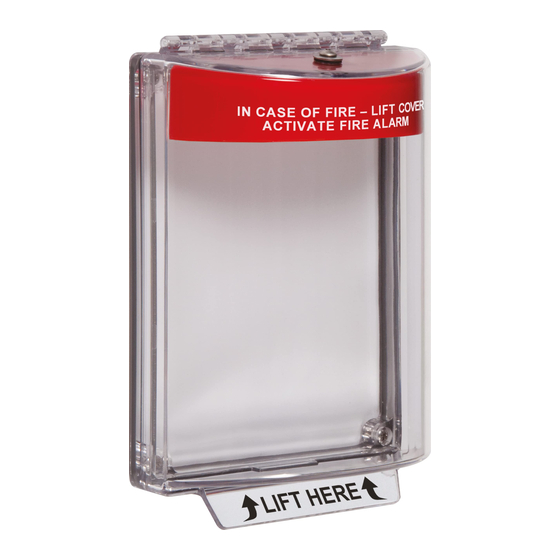

Universal Stopper Install
STI-13000 & STI-14000 Series
6.45 in.
(164mm)
2.73 in.
(69mm)
LOCKING
TAB
2.29 in.
(58mm)
9V
(Battery included)
40mA
105mA
2V @ 20mA
Center pull station to the Universal Stopper with the help of
dimensions shown in Fig. 1.
6.45 in.
(164mm)
Open cover, use frame or optional backplate to mark
mounting holes.
2.73 in. NOTE: Be sure the entire cover travel will not interfere
(69mm)
with operation of the pull station or other safety system
equipment when installed.
LOCKING
TAB
12V
38mA
125mA
4V @ 20mA
24V
22mA
95mA
4V @ 20mA
