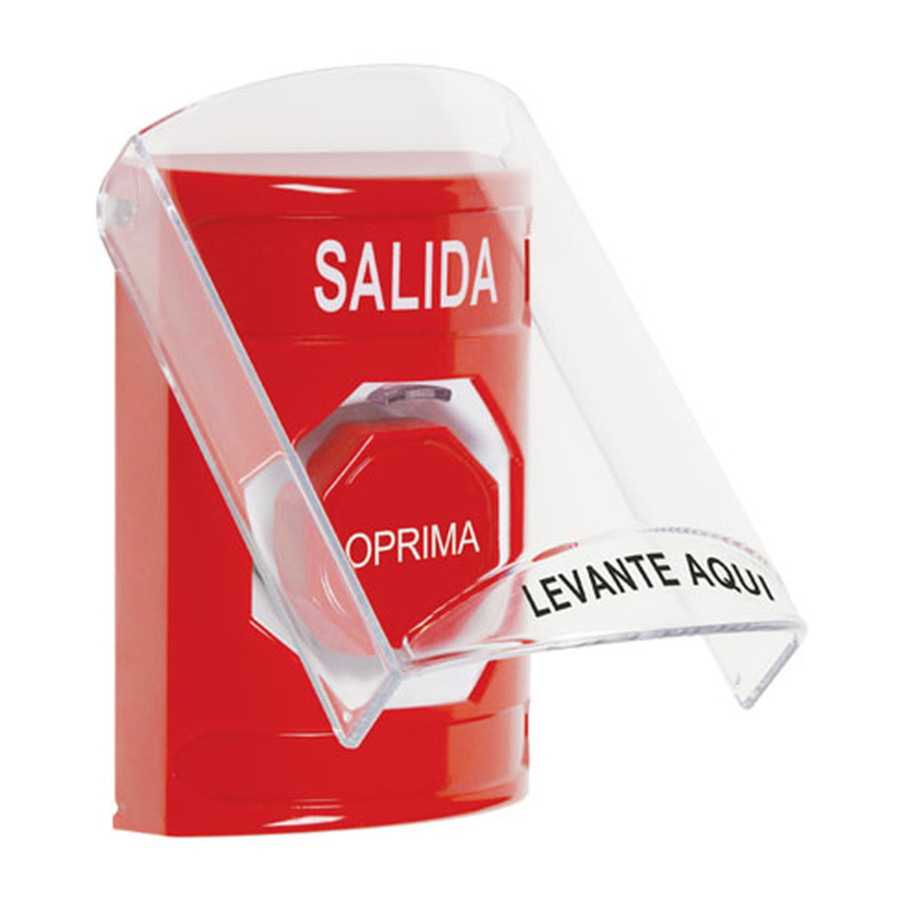

STI STOPPER SS2 0 Series Manual

EXISTING STANDARD
SINGLE GANGBOX
5/8" SPACER
KIT-102722-B (BLUE)
KIT-102722-G (GREEN)
KIT-102722-R (RED)
KIT-102722-W (WHITE)
KIT-102722-Y (YELLOW)
WHITE M10274-W
OCTAGON SHELL
*
E10105 MOMENTARY BUTTON (#4)
KIT-H18062 KEYS
*SS2xx4 and LT1-UL NOTES: For access control installations, power for the LT-1UL Timer must be supplied by a
power source listed to UL294. When used for access control, this device shall be used as part of an access controlled
egress door system. It is up to the local AHJ to allow use of this device in place of an automatic sensor. For higher
security installations, lower time limits should be used. For SS2xx4 and LT1-UL the enclosed timer is to be used and
installed per the enclosed LT-1UL installation sheet. *SS2xx4 and LT1-UL maximum rating 30 VDC 3A.
UL294 Performance Levels:
Endurance: IV
Line Security: I
Standby Power: I
Attack: I

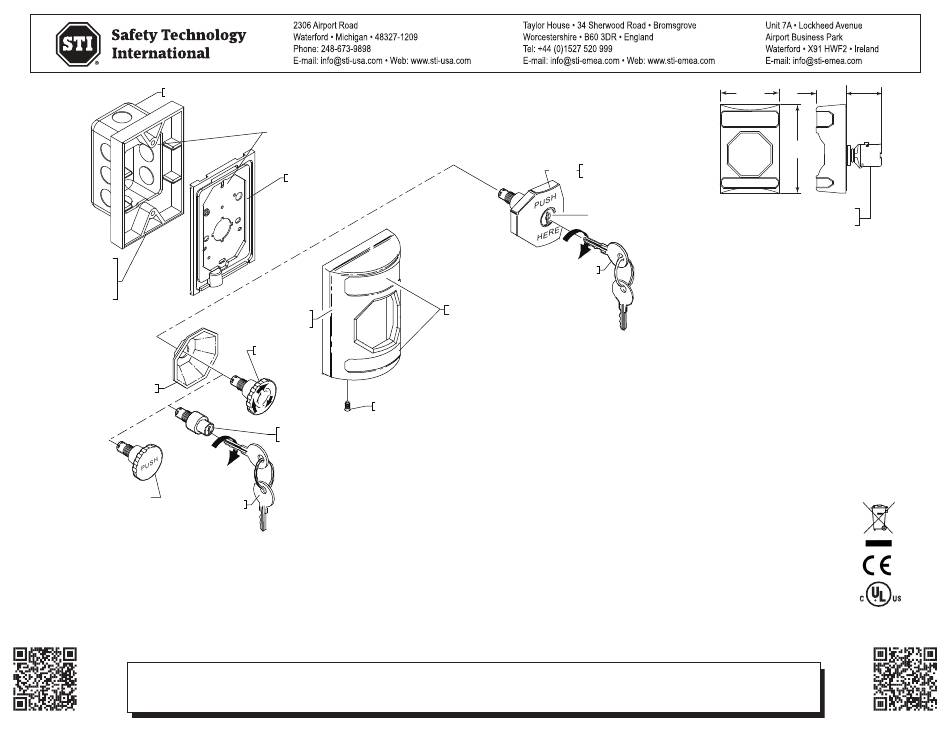

INSTALLATION OF SS2xx0, SS2xx1, SS2xx3, SS2xx4 SERIES STOPPER
USA
HOUSING INDEXING SLOTS
BACKPLATE ASSEMBLY
(SEE REVERSE SIDE)
M10271 STATION SHELL
RED, GREEN, YELLOW,
WHITE, BLUE AND ORANGE
E10100 PUSH/TURN
RESET BUTTON (#1)
#8-32 x 3/8 in. BUTTON HEAD
SCREW (1) PROVIDED
KEY BUTTON (#3)
KEY REQUIRED TO ACTIVATE - IN
ACTIVATE MODE KEY CAN BE REMOVED
(2) PROVIDED
All specifications and information shown were current as of publication, and are subject to change without notice.
OCTAGON KEY RESET BUTTON (#0)
M02050
RED, GREEN, YELLOW, WHITE
AND BLUE
E10102 KEY RESET SWITCH
KIT-H19030 KEYS
(2) PROVIDED
MESSAGE
AREA
REMARQUES POUR *SS2xx4 et LT1-UL: Pour les installations de contrôle d'accès, l'alimentation de la
minuterie LT-1UL doit être fournie par une source homologuée UL294. Lorsque cet appareil est utilisé aux
fins de contrôle d'accès, il doit faire partie d'un système de porte de sortie à accès contrôlé. Il incombe donc
à l'AHJ local d'autoriser l'utilisation de cet appareil au lieu d'un capteur automatique. Pour les installations
de sécurité plus renforcée, des délais inférieurs doivent être utilisés. Pour les modèles SS2xx4 et LT1-
UL, la minuterie intégrée doit être installée et utilisée suivant la fiche d'installation LT-1UL fournie. La cote
maximale des modèles *SS2xx 4 et LT1-UL est de 30 VCC 3A.
Three year warranty or a one year limited warranty (from date of purchase) on most products.
See website for details. Electronic warranty form at www.sti-usa.com/wc14.
WARNING: This product can expose you to chemicals including Bisphenol A, which is known to the State of
California to cause reproductive harm and Dichloromethane, which is known to the State of California to cause
cancer. For more information go to www.P65Warnings.ca.gov.
"A"
3.25 in.
1.62 in.
(82mm)
(41mm)
2.25 in.
(57mm)
4.87 in.
(124mm)
NOTE: TO PROVIDE ADEQUATE
CLEARANCE FOR INSTALLATION,
MAY REQUIRE: KIT-102722 5/8" SPACER
PRODUCT DIMENSIONS
STATION
®
1027IS OCT2018
