STI SA5600 Installation

A
OPTIONAL SURFACE MOUNT
#6 x 1.25 in. SCREW
(4) PROVIDED WITH KIT-71100A
SIREN STROBE ELECTRONIC BASE
SEALING O-RING (2) PROVIDED
SCREW #6-32 x 1 in. (2) PROVIDED
81.7mm
(3.22 in.)
122.7mm
(4.83 in.)
European Office
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
DRILL (4) 3/16 in.
DRILL POINT LOCATION TOP AND
WALL ANCHOR
BOTTOM FOR 1/2" CONDUIT
(4) PROVIDED
FITTINGS. DRILL AS NEEDED.
WITH KIT-71100A
ELECTRICAL BOX
KIT-71100A SHOWN
WIRE LEADS
Housing Installation
53.3mm
(2.10 in.) 1. Loosen screw with 3/32 HEX KEY.
2. Pull bottom of housing out and lift up until tabs
are released from slots in top of siren/strobe
assembly.
Wire Connections
WHITE - TAMPER
GREEN - TAMPER
BLUE - STROBE
YELLOW - SIREN
BLACK - GROUND

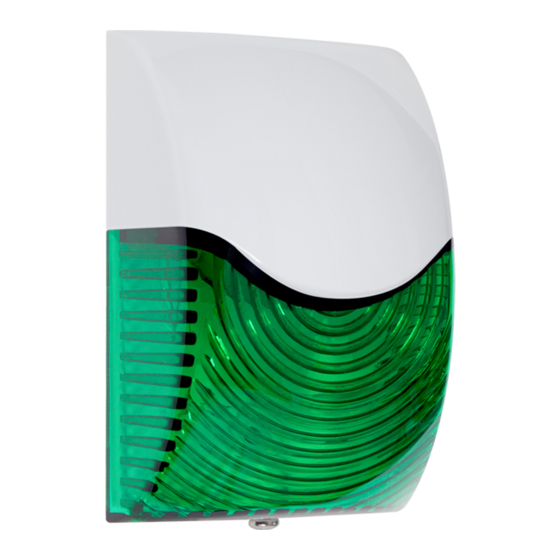

INSTALLATION OF STI-SA5600 SELECT ALERT SIREN/STROBE
All specifications and information shown were current as of publication and are subject to change without notice.
INPUT
DIAMETER HOLES
12 VDC, 0.42 A
24 VDC, 0.22 A
LENS TAMPER
N.C. DRY CONTACT
0.05 A @ 12 VDC
OPERATING
TEMPERATURE
-4°F TO 140°F (-20°C TO
60°C)
WARNING: This product can expose you to chemicals including Dichloromethane, which is
known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the
State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most products.
See website for details. Electronic warranty form at www.sti-usa.com/wc14.
USA - Headquarters
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
CONTROL W/POWER
Control W/POWER SUPPLY
SUPPLY
- Alarm on trigger close
- ALARM ON TRIGGER
CLOSE
SIREN
STROBE & SIREN
YEL (+) BLU (+)
BLK (-)
-
TRIGGER
+
(NOT PROVIDED)
SIREN
SIREN ONLY
YEL (+) BLU (+)
BLK (-)
-
TRIGGER
+
(NOT PROVIDED)
STROBE
STROBE ONLY
YEL (+) BLU (+)
BLK (-)
-
+
(NOT PROVIDED)
TAMPER SWITCH TO
GREEN
SUPERVISORY PANEL
(OPEN DOES NOT SOUND
WHITE
ALARM)
GREEN
TAMPER SWITCH TO
SUPERVISORY PANEL
(OPEN DOES NOT SOUND
WHITE
ALARM)
GREEN
TAMPER SWITCH TO
SUPERVISORY PANEL
(OPEN DOES NOT SOUND
WHITE
ALARM)
TRIGGER
SA5600IS MAR2019
