Protective Cabinet
STI-7534, STI-7535 and STI-7535AED
Features

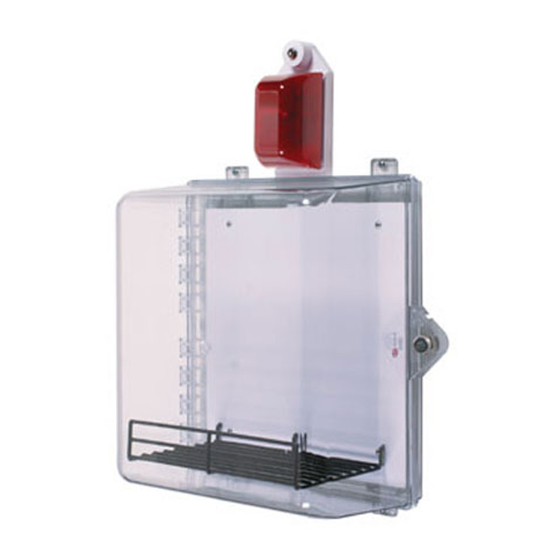

· Clear, protective polycarbonate cover with siren/strobe alarm.
· Design allows visibility at any angle.
· Complete with mounting hardware and gasket.
· Includes wire shelf, backing plate and siren/strobe alarm — AED models
· External mounting tabs or internal drill dimples.
· Cover includes a coated steel internal mounting plate with a baked on white enamel
finish.
· Siren/strobe alarm lens is red. Also available with amber, green, blue or white lens.
· Siren offers 32 user selectable tones.
· Alarm can be set for a piercing 100 dB or 85 dB.
· Independent strobe and siren timing of 15 seconds, 30 seconds, 60 seconds or
continuous.
· Powered by a 9 VDC battery or external 12-30 volts.
· Low battery indicator.
We protect the things that protect you.
®
Advertisement
Table of Contents
Related Manuals for STI STI-7534
Summary of Contents for STI STI-7534
- Page 1 Protective Cabinet STI-7534, STI-7535 and STI-7535AED Features · Clear, protective polycarbonate cover with siren/strobe alarm. · Design allows visibility at any angle. · Complete with mounting hardware and gasket. · Includes wire shelf, backing plate and siren/strobe alarm — AED models ·...
- Page 2 Warnings All units are recommended for indoor use. Unit must be tested periodically to verify the life of battery. STI recommends you change the 9 Volt battery twice a year. When purchasing a siren/strobe alarm, you will need to periodically test the connections to make sure audibles function at a sound level to alert staff.
- Page 3 Dimensions FRONT VIEW 164mm (6.44 in.) BOTTOM VIEW Specifications FRON Operating Voltage Internal power 9 VDC battery (not included) Remote power 12-30 VDC Operating Temperature 32°F -120° Power Consumption Stand by: 50µA Siren low volume: 85mA Siren high volume: 90mA Strobe: 25mA Siren Volume Low: 85 dB...
- Page 4 SWITCH WIRES THROUGH 19018 ANCHOR THE HOLE AS SHOWN #8-10 (2) PROVIDED 3. For STI-7531AED select one of the two shelf mounting locations, install shelf. Close and lock cabinet. ROUTE THE TWO REED R04875 MOUNTING PLATE SWITCH WIRES FROM ENCLOSURE...
- Page 5 SWITCH STEP 2 - Electronic Setup Select alarm tone and timing sequence REMOTE POWER IN 12-24 VDC, 125mA NORMALLY OPEN MAIN POWER ALARM TONES SIREN CONTROL NORMALLY CLOSED Note: Select-Alert ACTIVE FORM "C" DRY CONTACTS STAND must be on a flat ALARM TIMING ALARM SWITCH...
- Page 6 Step 5 - Electronics Assembly Wiring: After mounting circuit board assembly, connect wires. Refer to terminal strip connections (step 6). Lens installation: Slide lip of lens behind circuit board mounting plate. Rotate lens into position. Secure with tamperproof screw and special. Unit will not operate properly if lens cover is not installed.
- Page 7 · To service, turn key switch off. Warranty · Three year guarantee against breakage of polycarbonate housing (one year on electro mechanical and electronic components). · Electronic warranty form at www.sti-usa.com/wc14. - 7 -...
- Page 8 Safety Technology International Ltd Taylor House • 34 Sherwood Road • Bromsgrove Worcestershire • B60 3DR • England • Tel: +44 (0)1527 520 999 Fax: +44 (0)1527 501 999 • info@sti-emea.com • www.sti-emea.com Printed in USA Inst. 7535AED 11/17_05 Subject to change without notice.
