Stopper II

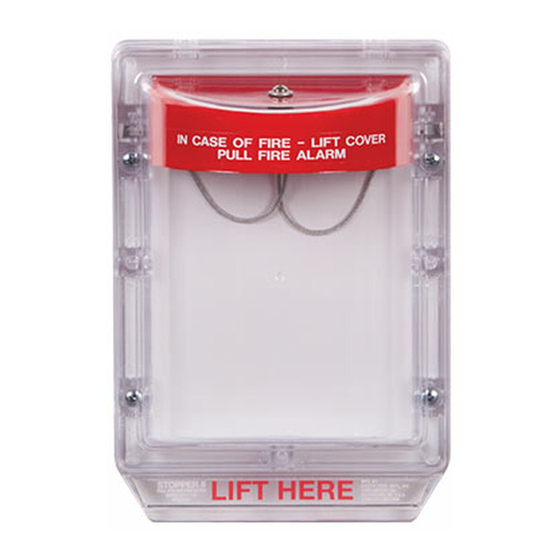

· Can be used as a guard against physical damage to manual pull station, with or without
optional warning horn.
· Optional horn has choice of 95 dB or 105 dB (measured at 1 foot).
· Standard red units have "In Case of Fire..." label unless specified with "no label" or
"custom label" (extra charge for custom label).
· Typical working properties of polycarbonate are -40° to 250°F (-40° to 121°C).
· Three year guarantee against breakage of polycarbonate housing in normal use (one year
on electro mechanical and electronic components).
· Weather Stopper models provide a raintight seal to the NEMA 3R standard. (IPX4
equivalency)
Photo is a generic representation to reflect the many manufacturers of manual pull stations.
We protect the things that protect you.
SERIES
®
- 1 -
ADA
Compliant
®
ADA
Compliant
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STI Stopper II Series
Summary of Contents for STI Stopper II Series
- Page 1 Stopper II SERIES ® Compliant ® Compliant · Can be used as a guard against physical damage to manual pull station, with or without optional warning horn. · Optional horn has choice of 95 dB or 105 dB (measured at 1 foot). ·...
-
Page 2: Testing Approvals
Indoor Use: STI-1100 With horn for flush mounted appliances STI-1100RC With horn for flush mounted appliances includes relay contacts capable of operating from 9-24 VDC remote power or internal 9V battery power STI-1130 With horn and 2” conduit spacer for surface mounted appliances and electrical boxes STI-1130RC Surface mounted version of the 1100RC includes 2”... -
Page 3: Important Notice
7. Dans le cas d’un montage sur une surface irrégulière, STI recommande l’utilisation du palastre STI-1280 pour garantir une étanchéité adéquate contre la surface de montage. S’il est nécessaire d’accéder aux fils ou aux trous des vis de montage, le palastre peut être percé... -
Page 4: Installation Instructions
Installation Instructions 1. The power switch is in the “OFF” position (Fig. 5). Using frame or optional STI-1280 backplate (recommended with all Weather Stopper models) as a template, mark mounting holes on ® wall taking into consideration placement of pull station or refer to Fig. 1 for dimensional hole placement from center of clear opening. - Page 5 For added protection a bead of silicone may be applied to conduit fitting and between STI-1280 backplate and wall (Fig. 3A). Refer to exploded view of flush and surface mount installation options Fig. 2 and 3. Weather Stopper, STI-3150, IP equivalency may vary depending on selection of conduit inserts used.
- Page 6 WHITE NORMALLY CLOSED LIFT HERE 3.125 in. (79mm) OPTIONAL RELAY CONTACT SETTINGS 6.25 in. Fig. 5 STI MODELS 1100RC, 1130RC, 1150RC AND 1155RC (159mm) EXPLODED ELECTRONIC VIEW FACTORY VOLTAGE SETTINGS: JUMPER INSTALLED ON "RC" MODELS BATTERY POWERED UNITS: 9 VOLT FOR EXTERNALLY SUPPLIED 12VDC OR REMOTE POWER "RC"...
-
Page 7: Gasket Installation
For flush mount weather applications, one STI-3002 must be used between the frame or spacer and wall or backplate (see Fig. 3). An STI-3004 gasket must be used around all entering conduit. For surface mount applications, the conduit insert with holes is available for installation in the bottom knockout of the conduit spacer. -
Page 8: Product Dimensions
