SERVO-DRIVE
EN
www.blum.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERVO-DRIVE and is the answer not in the manual?

Questions and answers

Related Manuals for BLUM SERVO-DRIVE

Summary of Contents for BLUM SERVO-DRIVE

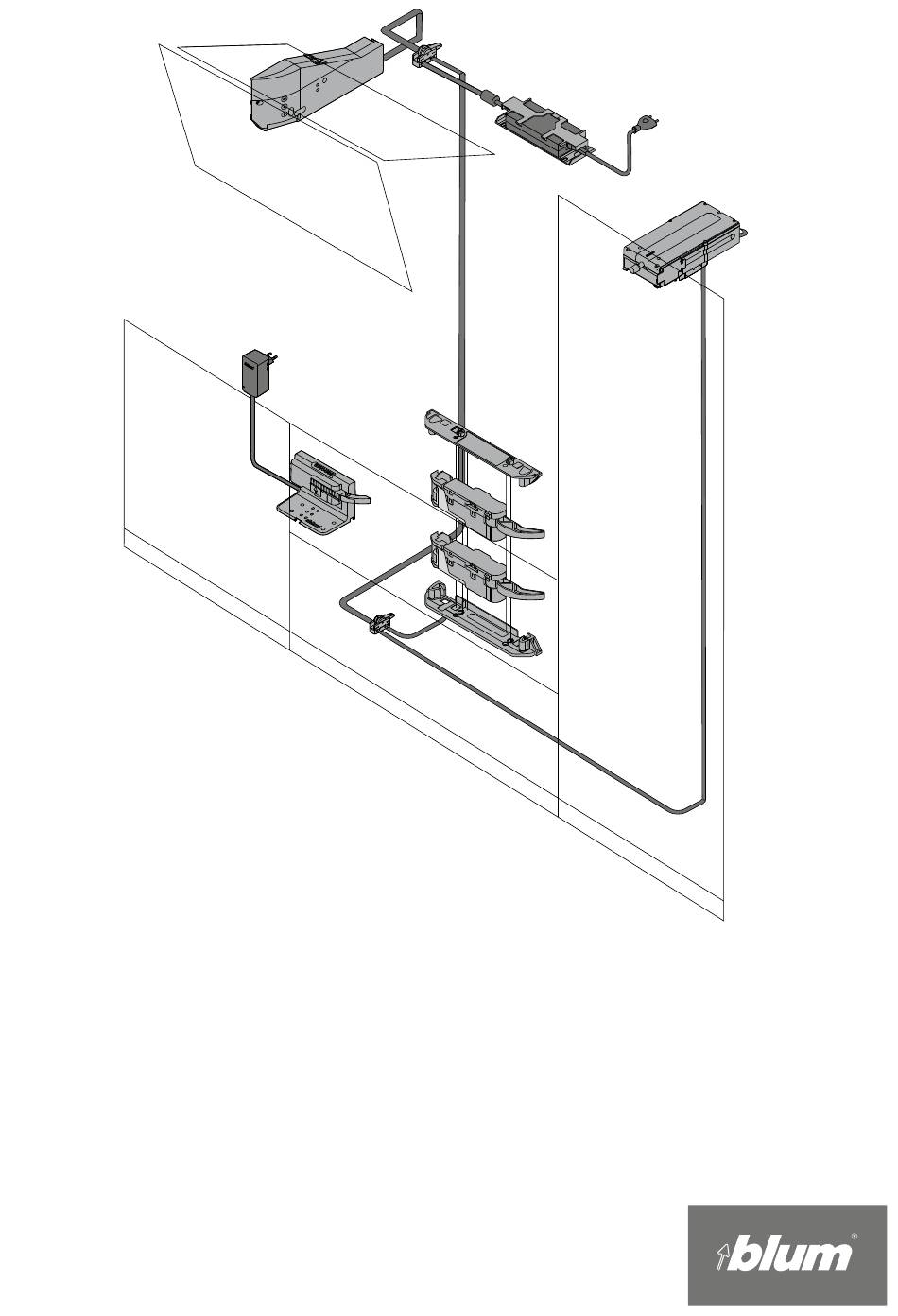

  • Page 1 SERVO-DRIVE www.blum.com...

  • Page 2: Table Of Contents

    ➢ Please retain the instruction leaflet for the service life of SERVO-DRIVE. ➢ Please pass on this instruction leaflet to each subsequent owner or user of SERVO-DRIVE. ➢ Instructions are also available on our website. Please search on www.blum.com for "SERVO-DRIVE instruction leaflet"...

  • Page 3: Warning Signs And Danger Symbols

    To identify terminals that must not be connected to the mains voltage. Intended use SERVO-DRIVE supports the opening and closing of lift systems, the opening of drawers and/or refrigerators and freezers or dishwashers, and may only be used under the following conditions: •...

  • Page 4: Safety

    Safety information • The mains plug and the SERVO-DRIVE power supply unit must be easily accessible. • Neither the SERVO-DRIVE power supply unit nor any cabling should come into contact with moving parts.
  • Page 5 SERVO-DRIVE and therefore are not allowed. • Only use original spare parts from Julius Blum GmbH • SERVO-DRIVE components are the only devices that should be connected to the SERVO-DRIVE power supply unit. • Only qualified specialists may install or replace SERVO-DRIVE components, modify the position of the SERVO-DRIVE power supply unit or modify the cabling.
  • Page 6 SERVO-DRIVE power supply unit safety distance NOTE A safety distance of 30 mm must be maintained for air circulation; otherwise, there is a risk that the SERVO-DRIVE power supply unit could overheat. ➢ The dimensions in the drawing take into account the safety distance.
  • Page 7 May pose a choking hazard to children when playing with the SERVO-DRIVE switch. Children could choke on the SERVO-DRIVE switch battery. ➢ Make sure that children do not open the SERVO-DRIVE switch as they could choke on parts or the battery from the SERVO-DRIVE switch if they swallow them.
  • Page 8 ➢ Any cabling damage should be immediately corrected by a quali- fied specialist. ➢ Do not cover the SERVO-DRIVE power supply unit with cloths or other items – danger of overheating. ➢ Examine the appliance frequently for signs of wear or damage. If...
  • Page 9 SERVO-DRIVE Instruction leaflet SERVO-DRIVE power supply units SERVO-DRIVE power supply units provide power to the drive unit. SERVO-DRIVE power supply unit function can be checked via the operating mode indicator (LED). Power connection Operating mode display (LED) Serial tag...

  • Page 10: Servo-Drive For Aventos/Servo-Drive Uno For Aventos

    SERVO-DRIVE Instruction leaflet SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS SERVO-DRIVE for AVENTOS supports the opening and closing of lift systems in furniture. Reference diagram Lift mechanism, drive unit and cover Lever arm SERVO-DRIVE power supply unit SERVO-DRIVE plug-in power supply unit...
  • Page 11 SERVO-DRIVE Instruction leaflet Manual operation The lift system can be opened or closed manually at any time without damaging SERVO-DRIVE for AVENTOS. ➢ Manual opening of the lift system by moving it upwards ➢ Manual closing of the lift system by...
  • Page 12 Insert new battery (type CR2032), observing the correct pole connections Close battery holder If the battery is inserted incorrectly, the SERVO-DRIVE switch battery display will lights up red. NOTE The SERVO-DRIVE switch battery must not be recharged or discarded into fire.
  • Page 13 The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE for AVENTOS: • Blum distance bumpers must be attached to the front to maintain the required distance between the lift system and the cabinet. • No items should be placed between the front and the cabinet.

  • Page 14: Servo-Drive Flex

    SERVO-DRIVE Instruction leaflet SERVO-DRIVE flex SERVO-DRIVE flex allows handle-less refrigerators and freezers to be opened electromechanically by pressing the front. Orientation diagram Drive unit Catch plate Mounting plate Front fixing Blum distance bumper Assembly jig Front cover Chipboard screws SERVO-DRIVE flex allows handle-less dishwashers to be opened electromechanically by pressing the front.

  • Page 15: Electrical Motion Support System

    The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE flex: • Blum distance bumpers must be attached to the front to ensure the required triggering signal (2 mm) between the pull-out unit and the cabinet. • No items should be positioned between the pull-out element and the cabinet back...

  • Page 16: Servo-Drive For Legrabox/Merivobox/Tandembox/Movento/Tandem

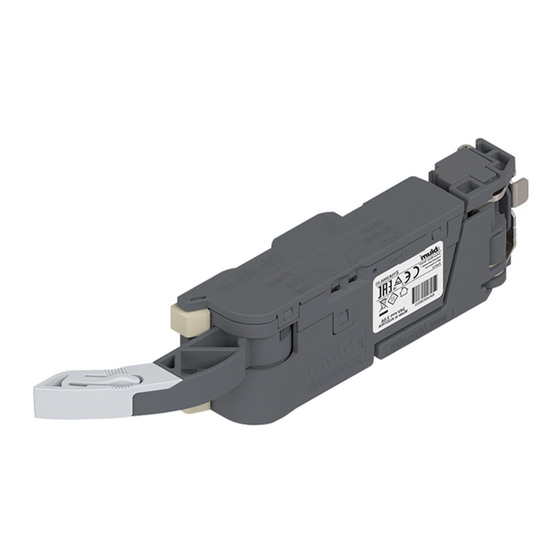

    SERVO-DRIVE Instruction leaflet SERVO-DRIVE for LEGRABOX/MERIVOBOX/TANDEMBOX/ MOVENTO/TANDEM SERVO-DRIVE supports the opening of drawers. Reference diagram Drive unit Eject lever SERVO-DRIVE power supply unit Blum distance bumper Electrical motion support system When the front and/or handle of the drawer (A) is pulled or pressed, the eject lever of the drive unit (B) swivels forward and opens the pull-out unit a short distance.
  • Page 17 Leaning on the pull-out unit, for example, will not open it. The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE: • Blum distance bumpers must be attached to the front to ensure the required trigge- ring signal (2 mm) between the pull-out unit and the cabinet.

  • Page 18: Simplified Eu Declaration Of Conformity

    Julius Blum GmbH hereby declares that the radio equipment types 23P5020 and Z10C5007 conform to the Directive 2014/53/EU. Julius Blum GmbH hereby declares that the electrical and electronic article types Z10ZE000 and Z10ZC000 conform to the Directive 2014/30/EU. Julius Blum GmbH hereby declares that the Blum transformer types Z10NA300, Z10NA40x*, Z10NE030 and Z10NE040 conform to the directive 2014/35/EU and Directive 2014/30/EU.

  • Page 19: Disposing Of Electrical And Electronic Appliances

    Electrical and electronic appliances must not be disposed of with household waste at the end of their service life. Ask your local authority for information on how to proceed. Blum electrical and electronic appliances meet the requirements of the WEEE Directive 2012/19/EU.
  • Page 20 SERVO-DRIVE Instruction leaflet...
  • Page 21 SERVO-DRIVE Instruction leaflet...
  • Page 22 SERVO-DRIVE Instruction leaflet...
  • Page 23 SERVO-DRIVE Instruction leaflet...

  • Page 24: Technical Data

    Instruction leaflet Technical data The appliances must only be used in dry, closed rooms. All SERVO-DRIVE drive units, the COMBOX and the vibration sensor are of protection class III and must only be supplied with safety extra-low voltage (SELV). They are only to be used with the power supply units provided by Blum.
  • Page 25 SERVO-DRIVE Instruction leaflet SERVO-DRIVE plug-in power supply unit Z10NA300 Input voltage: ....................100–240 V AC / 50–60 Hz Input current: ..........................0.3 A Output voltage: ........................24.0 V DC Output current: ..........................0.5 A Output power: ..........................12.0 W Average active efficiency: ......................83.3 % Efficiency at low load (10%): ......................
  • Page 26 SERVO-DRIVE Instruction leaflet SERVO-DRIVE drive unit for AVENTOS 21FA001, 21SA001, 21LA001, 21KA001 Supply voltage: ........................24.0 V DC Rated current: ..........................2.0 A Power consumption in standby mode: ............... ≤ 0.55 W (front closed) Operating mode: ................S3 5 % (max. 10 motions/10 min.) Emission sound pressure level: ....................
  • Page 27 SERVO-DRIVE Instruction leaflet SERVO-DRIVE drive unit for LEGRABOX / MERIVOBOX /TANDEMBOX / MOVENTO / TANDEM Z10A3000.03, Z10A3000.50 Supply voltage: ........................24.0 V DC Rated current: ..........................2.0 A Power consumption in standby mode: ............... ≤ 0.15 W (front closed) Operating mode: ................S3 5 % (max. 10 motions/10 min.) Emission sound pressure level: ....................
  • Page 28 SERVO-DRIVE Instruction leaflet SERVO-DRIVE switch 23P5020 Supply voltage: ................. 3.0 V Lithium button cell CR2032 Rated current: ..........................10 mA Power consumption in standby mode: ..................≤ 1 μW Ambient conditions: Transport / Storage: ................. -30 to +70 °C / 0 to 90 % r.H.
  • Page 29 SERVO-DRIVE Instruction leaflet Quake sensor Z10ZE000 Supply voltage: ........................24.0 V DC Rated current: ..........................25 mA Power consumption in standby mode: ..................≤ 0.20 W Switching current: ........................≤ 10.0 A Switching threshold: ....................0.2 m/s² ≈ 0.02 g Ambient conditions: Transport / Storage: .................
  • Page 30 Blum partners worldwide can be found at: www.blum.com/addresses Julius Blum GmbH 6973 Höchst, Austria Tel.: +43 5578 705-0 Fax: +43 5578 705-44 E-mail: info@blum.com www.blum.com Our sites in Austria, Poland and China are certified to the international standards mentioned below.
