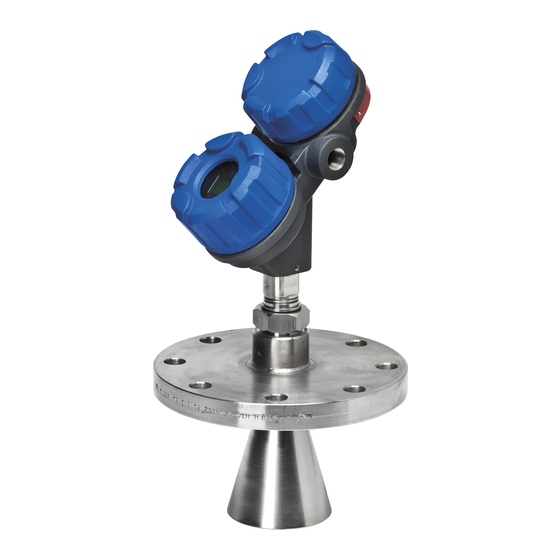

Magnetrol PULSAR R96 Manual

Pulse burst radar level transmitter
Hide thumbs Also See for PULSAR R96:

Advertisement

Quick Links

Download this manual
D E S C R I P T I O N
The Pulsar
®
R96 Radar transmitter is the latest
generation of Magnetrol
24 VDC, loop-powered, non-
®
contact radar transmitters. Enhanced performance and
innovative diagnostics bring simplicity to an often
complicated technology.
This latest entry into the radar level measurement field
is designed to provide unparalleled performance and
ease of use. PULSAR non-contact radar is the perfect
compliment to the MAGNETROL Eclipse
Guided Wave Radar transmitter. Together, these trans-
mitters offer the ultimate solution to the vast majority of
process level applications.
T E C H N O L O G Y
The PULSAR Radar transmitter is based on pulse burst
radar technology combined with equivalent time sam-
pling circuitry. Short bursts of 6 GHz microwave energy
are emitted and subsequently reflected from the liquid
level surface. Distance is calculated by the equation
D = Transit time (round-trip)/2. Liquid level is then
calculated by applying the tank height value.
A P P L I C A T I O N S
MEDIA:
Liquids and slurries; hydrocarbons to water-
based media (dielectric 1.7–100)
VESSELS:
Most metal and concrete process or storage
vessels up to rated temperature and pressure. Pits and
sumps as well as glass-lined tanks.
CONDITIONS:
Virtually all level measurement and
control applications including process conditions
exhibiting varying specific gravity and dielectric,
visible vapors, high fill/empty rates, turbulence, low
to moderate foam and buildup.
®
Model 706
F E A T U R E S
•
Multivariable two-wire, 24 VDC loop-powered
transmitter for level or volume
•
Performance not process dependent (changing
specific gravity and dielectric have no effect)
•
6 GHz operating frequency offers superior perform-
ance in the tougher applications with turbulence,
foam, and heavy vapors
•
Echo Rejection setup is simple, intuitive and effective
•
Antenna designs to +400°F (+200°C),
-14.7 to 750 psig (-1.0 to 51.7 bar)
•
Range up to 130 feet (40 meters)
•
Quick connect/disconnect antenna coupling allows
vessel to remain sealed
•
Extremely low output at antenna: < .01 mW (avg),
< 2 mW (max); hundreds of times less than a cell
phone
•
4-button keypad and graphic LCD display allow for
convenient viewing of configuration parameters and
echo curve
•
Proactive diagnostics advise not only what is wrong,
but also offer troubleshooting tips
•
Available for use in SIL 2 Loops (92.7% SFF, with full
FMEDA report available
•
PACTw re
advanced configuration and troubleshooting
•
Available with HART
output
Pulsar
®
Model R96
Pulse Burst Radar
Level Transmitter
PC Program and enhanced DTMs for
™
®
or F
OUNDATION
fieldbus
™
digital

Advertisement

loading
Need help?

Need help?

Do you have a question about the PULSAR R96 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnetrol PULSAR R96

Summary of Contents for Magnetrol PULSAR R96

  • Page 1 This latest entry into the radar level measurement field is designed to provide unparalleled performance and ease of use. PULSAR non-contact radar is the perfect compliment to the MAGNETROL Eclipse ® Model 706 Guided Wave Radar transmitter. Together, these trans-...
  • Page 2 B U R S T R A D A R Pulse PULSAR R96 is a top-mounted, downward-looking pulse burst radar operating at 6 GHz. Unlike true pulse devices (e.g. ECLIPSE Guided Wave Radar) which transmit a single, sharp (fast rise-time) waveform of wide-band energy...
  • Page 3 Zone Level false targets, multiple reflections Distance and rate of change) Measurement Region Tank The PULSAR R96 Radar transmitter is Height Level Trim offered with four antenna configurations: • Polypropylene Dielectric Rod • TFE Dielectric Rod Level = Tank Height – Distance •...
  • Page 4 M O U N T I N G >18" The PULSAR Model R96 Radar transmitter can be mounted (>45 cm) Radius on a vessel using a variety of process connections. Generally either a threaded or flanged connection is used. L O C A T I O N Ideally, the Radar transmitter should be mounted ⁄...
  • Page 5 M O U N T I N G N O Z Z L E S Improper installation in a nozzle creates “ringing” (undesired signals) which will adversely affect measurement. The antenna ∅ should always be mounted so the active section of the antenna Inactive Area is a minimum of 0.5"...
  • Page 6 S T A N D P I P E S A N D S T I L L W E L L S The PULSAR Model R96 can be mounted in a standpipe or stillwell but certain items must be considered: •...
  • Page 7 A P P L I C A T I O N S P U L S E B U R S T R A D A R S T O R A G E A N D I N T E R M E D I A T E H O L D I N G T A N K S CONDITIONS –...
  • Page 8 A P P L I C A T I O N S P U L S E B U R S T R A D A R M I X E R S A N D B L E N D I N G V E S S E L S CONDITIONS –...
  • Page 9 A G E N C Y A P P R O V A L S These units are in compliance with the EMC-directive 2004/108/EC, the PED-directive 97/23/EC and the ATEX directive 94/9/EC. IEC 60079-0: 2001 IEC 60079-15: 2010 IEC 60079-26: 2006 Explosion Proof Non- Incendive US/Canada:...

  • Page 10: Specifications

    T R A N S M I T T E R S P E C I F I C A T I O N S F U N C T I O N A L / P H Y S I C A L System Design Measurement Principle Pulse burst radar 6 GHz...
  • Page 11 P E R F O R M A N C E Reference Conditions Reflection from ideal reflector at +70° F (+20° C) Linearity ±0.3 inch (8 mm) or 0.1% of tank height (whichever is greater) Measured Error ±0.3 inch (8 mm) or 0.1% of tank height (whichever is greater) (Performance will degrade slightly within 60"...
  • Page 12 D I M E N S I O N A L S P E C I F I C A T I O N S I N C H E S ( M M ) 4.03 3.38 4.18 (102) (86) (106) 3.77 (96)

  • Page 13: Model Number

    T R A N S M I T T E R M O D E L N U M B E R Models available for quick shipment, usually within one week after factory receipt of a complete purchase order, through the Expedite Ship Plan (ESP). BASIC MODEL NUMBER Through-Air Radar Level Transmitter- 6 GHz Pulse Radar POWER...
  • Page 14 R A D A R A N T E N N A S D I E L E C T R I C R O D M O D E L N U M B E R TECHNOLOGY / OPERATING FREQUENCY CONFIGURATION / STYLE TFE (Material of Construction codes A, B, C, and K only) Polypropylene (Material of Construction codes A, G, K, and L only)
  • Page 15 R A D A R A N T E N N A S H O R N M O D E L N U M B E R TECHNOLOGY / OPERATING FREQUENCY PULSAR radar antennas / 6 GHz CONFIGURATION / STYLE 3"...

  • Page 16: Warranty
